6 Pairs Multi Pair Shielded Cable 24awg PVC Shielded Sensor Cable
  • 6 Pairs Multi Pair Shielded Cable 24awg PVC Shielded Sensor Cable
  • 6 Pairs Multi Pair Shielded Cable 24awg PVC Shielded Sensor Cable
  • 6 Pairs Multi Pair Shielded Cable 24awg PVC Shielded Sensor Cable
  • 6 Pairs Multi Pair Shielded Cable 24awg PVC Shielded Sensor Cable

6 Pairs Multi Pair Shielded Cable 24awg PVC Shielded Sensor Cable

Place of Origin China
Brand Name Dingzun
Certification UL,CE,ISO9001
Model Number Z-162
Product Details
Conductor Material:
TINNED COPPER
Stranded:
STRANDED
Construction:
7/0.16
Insulation:
PVC
Shield:
AL FOIL + DRAIN WIRE
Armor:
TINNED COPPER WIRE BRAID
SHEATH:
PVC
Temperature:
105c
Voltage:
300V
Application:
SENSOR CABLE
High Light:

Shielded Multi Pair Instrument Cable

,

PVC Multi Pair Shielded Cable

,

multi pair shielded cable

Product Description

Details:
Conductor: tinned copper
Construction: 24awg 7/0.2
Pairs: 6
Twisted: required
insulation PVC
pair shield: Al foil wrapping
drain wire: tinned copper wire
filler: cotton cord
Binder: poly tape
overall shield: tinned copper wire braided
jacket: PVC
Rated Temperature: 75 degree
Rated Voltage: 24vdc
Type: multipair sensor cable

Thank you for providing the details about the 6 pairs 24awg PVC shielded sensor cable.

This cable is designed for use in sensor applications where signal integrity and accuracy are critical. The cable has six pairs of conductors, each made of tinned copper with a construction of 24 AWG 7/0.2, providing excellent conductivity and stability in signal transmission. Each pair of conductors is twisted to reduce crosstalk and improve signal quality.

The insulation material used is PVC, which provides excellent electrical insulation and resistance to mechanical stress. The cable has a pair shield made of an Al foil wrapping and a drain wire made of tinned copper wire, providing excellent EMI/RFI protection and further ensuring signal clarity.

The cable has a filler made of a cotton cord, which provides additional mechanical support and ensures the cable's strength. The binder is made of poly tape, which provides further mechanical support and stability to the cable.

The overall shield is made of a tinned copper wire braided shield, providing additional EMI/RFI protection and ensuring the cable's durability. The jacket is made of PVC, which provides additional mechanical protection to the conductors.

The cable is rated for a temperature of 75 degrees Celsius and a voltage of 24VDC, making it suitable for use in a variety of sensor applications. The cable is rated as a multi-pair sensor cable, which means it can be used to transmit multiple signals simultaneously, making it ideal for use in applications where multiple sensors are required.

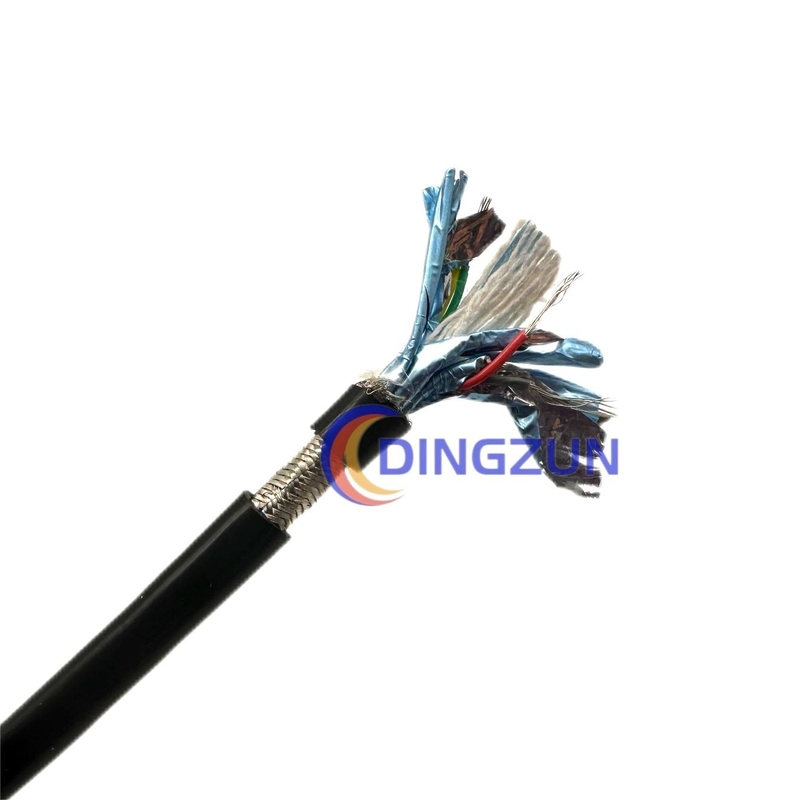

6 Pairs Multi Pair Shielded Cable 24awg PVC Shielded Sensor Cable 0

6 Pairs Multi Pair Shielded Cable 24awg PVC Shielded Sensor Cable 1
