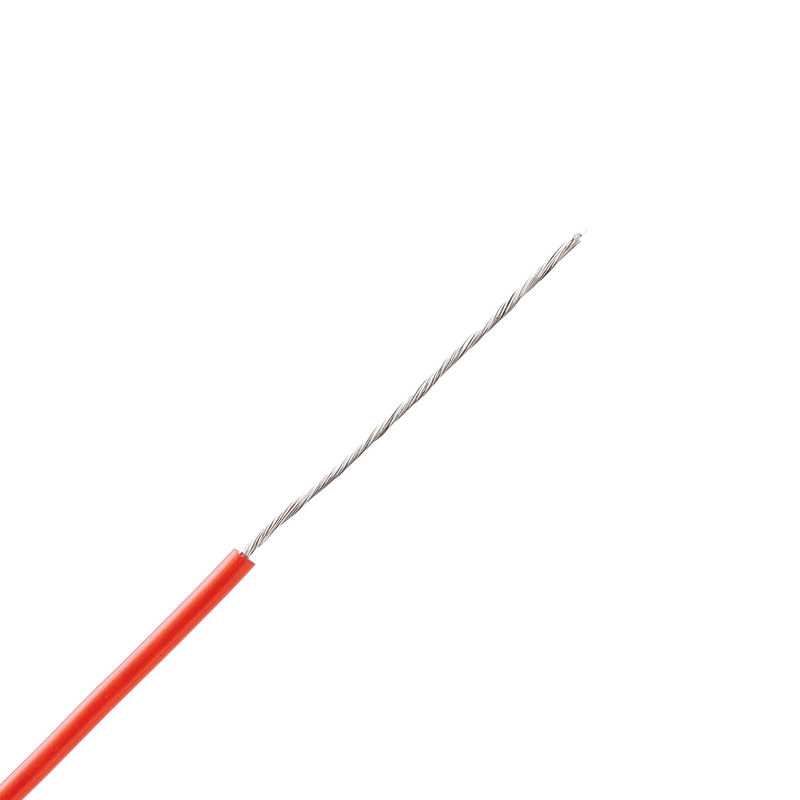

Heat Resistance High Temp Silicone Cable Flexible 20 AWG For Lighting Equipment

Dingzun Cable heat resistance UL3136 flexible silicone rubber insulated High Temperature Wire for lighting equipment

Construction:

Single or multiple strands of bare copper or tinned copper wire stranded soft conductor bare copper wire performance refer to GB/T 3953-2009; Tinned copper wire performance reference GB/T4910-2009 standard; Conductor structure reference GB/T3956-2008 requirements · silicone rubber insulation insulation material performance reference GB/T2951-2008; The outer diameter of finished wire and cable refers to GB/T2951-2008; The electrical performance of finished wires and cables refer to GB/T30948-2007 technical data. Temperature range: -60~+180℃

Technical Parameters

Rated Temperature:-60℃∽+150℃

Rated Voltage:300V

Conductor:26AWG-20AWG solid/stranded Tinned Copper

Insulation:Silicone Rubber

Construction:

Single or multiple strands of bare copper or tinned copper wire stranded soft conductor bare copper wire performance refer to GB/T 3953-2009; Tinned copper wire performance reference GB/T4910-2009 standard; Conductor structure reference GB/T3956-2008 requirements · silicone rubber insulation insulation material performance reference GB/T2951-2008; The outer diameter of finished wire and cable refers to GB/T2951-2008; The electrical performance of finished wires and cables refer to GB/T30948-2007 technical data. Temperature range: -60~+180℃

· Rated voltage: U0/U 300V/500V

· Test voltage: 1500V

· Insulation resistance: ≧ 100mω /KM

· Radiation resistance: Up to 20 x 106 cJ/kg (up to 20 Mrad)

Features:

Excellent environmental protection, tasteless, non-toxic, excellent anti-thrombotic, biological inert; Excellent electrical insulation performance; High temperature resistance, long-term to 180℃. Short time temperature resistance can 220℃, low temperature resistance, the minimum service temperature is -60℃; Oil and chemical resistance, silicone rubber has medium resistance; High temperature resistant silicone rubber cable has stable electrical performance, good aging resistance and long service life in high temperature environment. It can be used in long-term humid environment and has superior waterproof and mildew resistance. Silicone rubber is very soft, has good elasticity, excellent bending properties, and is soft and easy to install · Optional - corrosion of combustion gases (halogen-free) according to DIN VDE 0482 Part 267, DIN EN 50267-2-2, IEC 60754-2 VDE 0472 Part 813); Behavior in fire without flame propagation shall conform to DIN VDE 0482-332-1-2, DIN EN 60332-1-2 (equivalent to DIN VDE 0472 Part 804 Test Method B)

· No harmful substances, in line with ROHS standards

Applications:

Used in steel industry, aviation industry, shipbuilding, cement, glass and ceramics factories. Because this single core does not contain halogen, it is especially suitable for · widely used in lighting lamps, household appliances, electric heating appliances, instrumentation, motor wiring, electronics, lamps, dyeing and other high temperature wire environment.
