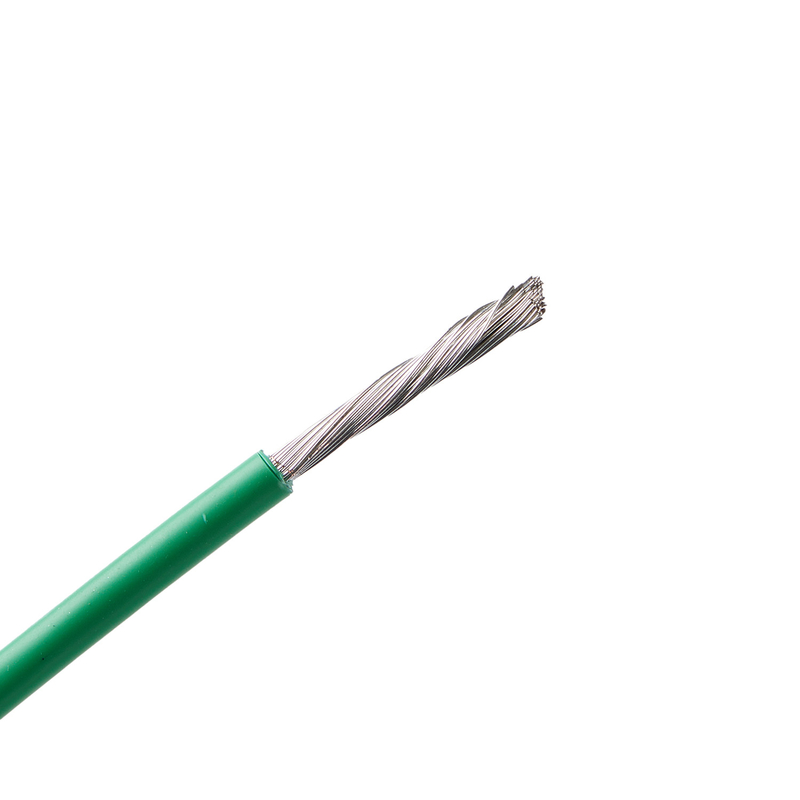

Customized Railway Signal Cable Flame Retardant Motor Winding Lead Wire

Place of Origin China
Brand Name Dingzun
Certification UL,CE,ISO9001
Model Number 07-02
Product Details
Product Name::
JYJ155XLPE FLAME RETARDANT MOTOR WINDING LEAD WIRE
Conductor Material::
Tinned Copper/Copper
Insulation Material::
PE
Rated Temperature::
155℃
Rated Voltage::
600V/750V
Application:
Electronic Appliances
Type:
Solid Or Stranded
OEM:
We Can Produce Any Your Designs
Sample:
Can Be Provided For Evaluating
Inspection:
Strict Inspection Personnel And Promotion
High Light:

Customized Railway Signal Cable

,

Motor Winding fire retardant cable

,

Railway Signal Cable Flame Retardant

Product Description

Customized Railway Signal Cable Flame Retardant Motor Winding Lead Wire

Dingzun Cable Wholesale Customized Good Quality JYJ155 XLPE FLAME RETARDANT MOTOR WINDING LEAD WIRE for Instrumentation
The cable length is inversely proportional to the baud rate of the signal transmission. This length data is mainly affected by signal distortion and noise. Theoretically, when the communication rate is 100Kbps and below, the transmission distance of RS485 can reach 1200 meters, but in practical application, the transmission distance is also different due to the transmission characteristics of the chip and cable. In the transmission process can be used to increase the relay method to amplify the signal, can add eight relay, that is to say, the transmission distance of RS485 can reach 10.8 kilometers in theory. If you really need long-distance transmission, you can use optical fiber as the transmission medium, and add a photoelectric converter at both ends of the transceiver. The transmission distance of multi-mode optical fiber is 5 to 10 kilometers, and the transmission distance of single-mode optical fiber can reach 50 kilometers.

Section

(mm2)

Conductor No./Dia.

(mm)

Avg. Insulation Thickness

(mm)

Overall Dia.

(mm)

Max. Resistance

20℃

(≤Ω/km)

0.5 16/0.20 0.60 2.25 40.1
0.75 24/0.20 0.60 2.50 26.7
1 32/0.20 0.60 2.60 20.0
1.5 30/0.25 0.70 3.15 13.7
2.5 49/0.25 0.70 3.65 8.21
4 56/0.30 0.70 4.30 5.09
6 84/0.30 0.80 5.60 3.39
10 84/0.40 0.80 6.80 1.95
16 126/0.40 1.00 8.50 1.24
25 196/0.40 1.00 9.50 0.795
35 276/0.40 1.00 11.10 0.565
50 396/0.40 1.20 13.20 0.393
70 360/0.50 1.20 15.00 0.277
95 475/0.50 1.40 18.50 0.21
100 509/0.50 1.40 19.50 0.196
120 608/0.50 1.40 20.50 0.164
Remarks: able to produce according to customer’s requirement

Shanghai Dingzun Special Electric Wire and Cable Co., Ltd. as a high-tech enterprise was established in 2005, which engaged in special wire and cable research, development, design, manufacturing.



Shanghai Dingzun Special Electric Wire and Cable Co., Ltd. has strong technical force, existing staff 132 people, including senior titles of professional and technical personnel 26 people, with our own invention patent. We understand the technical standards and production standards of wire and cable of various countries in the world, can design and produce 6 categories, more than 800 types and specifications of wire and cable. The annual output reaches 70 million meters. The main products are high temperature resistant wire and cable, high voltage resistant wire and cable, shielded cable, coaxial cable, thermocouple compensation wire and other special wire and cable. Products are widely used in aerospace, electronic appliances, instrumentation, metallurgy and chemical industries, especially for high temperature, low temperature, strong acid, strong alkali, high oil, strong radiation and other harsh working environment.

Currently our company has two production workshops, nearly 5000 square meters of production space, equipped with 18 production lines of various types, 156 other auxiliary production equipment, 48 testing equipment, including 36 inline testing equipment. Complete testing equipment guarantee premium product quality, meanwhile strong production capacity ensures timely order delivery.

The company has passed ISO9001:2015 international quality management system certification, our products have passed CCC compulsory certification in China, UL certification in the United States, CE certification in the European Union, and our products are sold to the United States, Europe, Japan and other countries and regions. Our system certification, product safety certification and global customers praise prove that our products are trustworthy. In addition, the wire and cable we produce also passed RoHS testing, in line with the environmental requirements of the European Union, we protect our common green home together with you.

According to customer requirements, we can also do custom design, production, to meet customer specific requirements of wire and cable, or according to customer construction drawings to make product customization.

Our production base is located in Shanghai, the largest commercial city in China, which can quickly and conveniently reach all countries of the world.
