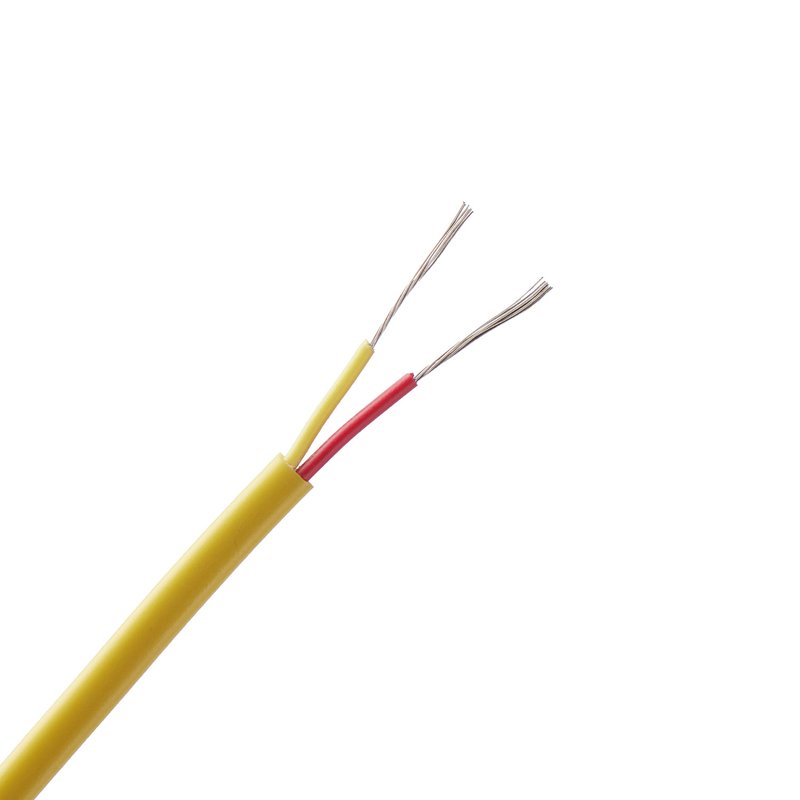

Thermocouple Wire Extension Wire Type J Compensation Wire

Thermocouple Wire Extension Wire Type J Compensation Wire

  • High Light

    J Type Thermocouple Compensation Wire

    ,

    Economic Thermocouple Cable

    ,

    J Type Compensating Cable

  • Product Name
    JX THERMOCOUPLE COMPENSATION HIGH TEMPERATURE CABLE
  • Conductor Material
    Alloy
  • Insulation Material
    FLUOROPLASTIC SILICONE RUBBER GLASSFIBER QUARTZFIBER
  • Rated Temperature
    -65℃~+105℃,180℃,200℃,350℃,500℃,1000℃
  • Rated Voltage
    300V/500V
  • Size
    NOT SPECIFIED
  • Application
    Lighting
  • Type
    Solid Or Stranded
  • OEM
    We Can Produce Any Your Designs
  • Inspection
    Strict Inspection Personnel And Promotion
  • Place of Origin
    China
  • Brand Name
    Dingzun
  • Certification
    UL,CE,ISO9001
  • Model Number
    11-06
  • Minimum Order Quantity
    500m
  • Price
    Negotiable
  • Packaging Details
    250M/ROLL PACKED IN CARTON
  • Delivery Time
    15DAYS
  • Payment Terms
    L/C, T/T
  • Supply Ability
    3000M/DAY

Thermocouple Wire Extension Wire Type J Compensation Wire

Dingzun Cable Guaranteed Quality JX K-type Thermocouple Compensation Wire Copper Electric Cable High Temperature Electric

Thermocouple Wire Extension Wire Type J Compensation Wire 0

Description:

K type thermocouple wire is the most popular wire for temperature sesors, for measuring the high temperature. it's our hot sellling product.

client can choose different insualtion and sheath accoring to the real working environment such as FEP, PFA,PTFE,KAPTON,etc., we flexible supply clients premium quality and fast delivery.

Type K thermocouple as a temperature sensor, type K thermocouple is usually used with display meters, recording meters and electronic regulators. Type K thermocouple can directly measure the surface temperature of liquid vapor and gas media as well as solid in various production ranges from 0 ° C to 1300 ° C.

K-type thermocouple is usually composed of temperature sensing elements, mounting fixtures and junction boxes.

Type K thermocouple is currently the largest consumption of cheap metal thermocouple, its consumption is the sum of other thermocouples. K-type thermocouple wire diameter is generally 1.2 ~ 4.0mm.

The nominal chemical composition of the positive electrode (KP) is: Ni: Cr=90:10, and the nominal chemical composition of the negative electrode (KN) is: Ni:Si= 97:3, and its operating temperature is -200~1300℃.



K-type thermocouple has the advantages of good linearity, large thermoelectric motive force, high sensitivity, good stability and uniformity, strong oxidation resistance, low price and so on. It can be widely used by users in the oxidizing inert atmosphere.

Type K thermocouple cannot be used directly at high temperature for sulfur, reducing or reducing, alternating oxidation atmosphere and vacuum, and is not recommended for weak oxidation atmosphere.



Article No. Thermocouple Graduation No. Alloy Insulation Layer Dyeing
Positive Negative Positive Negative
NX N NPX NNX Pink White



Section (mm2) Single Conductor Multi Core Insulation Thickness (mm)

Jacket

Thickness (mm)

Conductor No. Single Conductor Dia(mm) Conductor No. Single Conductor Dia(mm)
0.2 1 0.50 7 0.20 0.40 0.30
0.5 1 0.80 7 0.30 0.40 0.30
1.0 1 1.13 7 0.43 0.40 0.30
1.5 1 1.37 7 0.52 0.40 0.30
2.5 1 1.76 19 0.41 0.40 0.30

Shanghai Dingzun Special Electric Wire and Cable Co., Ltd. as a high-tech enterprise was established in 2005, which engaged in special wire and cable research, development, design, manufacturing.



Shanghai Dingzun Special Electric Wire and Cable Co., Ltd. has strong technical force, existing staff 132 people, including senior titles of professional and technical personnel 26 people, with our own invention patent. We understand the technical standards and production standards of wire and cable of various countries in the world, can design and produce 6 categories, more than 800 types and specifications of wire and cable. The annual output reaches 70 million meters. The main products are high temperature resistant wire and cable, high voltage resistant wire and cable, shielded cable, coaxial cable, thermocouple compensation wire and other special wire and cable. Products are widely used in aerospace, electronic appliances, instrumentation, metallurgy and chemical industries, especially for high temperature, low temperature, strong acid, strong alkali, high oil, strong radiation and other harsh working environment.

Thermocouple Wire Extension Wire Type J Compensation Wire 1

Currently our company has two production workshops, nearly 5000 square meters of production space, equipped with 18 production lines of various types, 156 other auxiliary production equipment, 48 testing equipment, including 36 inline testing equipment. Complete testing equipment guarantee premium product quality, meanwhile strong production capacity ensures timely order delivery.



The company has passed ISO9001:2015 international quality management system certification, our products have passed CCC compulsory certification in China, UL certification in the United States, CE certification in the European Union, and our products are sold to the United States, Europe, Japan and other countries and regions. Our system certification, product safety certification and global customers praise prove that our products are trustworthy. In addition, the wire and cable we produce also passed RoHS testing, in line with the environmental requirements of the European Union, we protect our common green home together with you.



According to customer requirements, we can also do custom design, production, to meet customer specific requirements of wire and cable, or according to customer construction drawings to make product customization.



Our production base is located in Shanghai, the largest commercial city in China, which can quickly and conveniently reach all countries of the world.



Dingzun Cable connecting the whole world, outputting surging power, transferring the cooperation signal, shares opportunities and future.

Thermocouple Wire Extension Wire Type J Compensation Wire 2

1. Are you a manufacture or trading company?

We are a professional manufacture over 18 years, and our factory based in Shanghai. Warmly welcome to visit us.

2. Does your company accept OEM production?

Sure, our company policy is Order Oriented Customization, we could print your brand and produce according to your specification, if the minimum quantity achieved.

3. What about the lead time for mass production?

Our production capacity is sufficient, normally 10-20 days we can deliver your order, only if quantity is big, we’ll offer you specified delivery time.

4. What’s your minimum quantity?

Usually 100m, however cable is heavy product, the freight really costs, we suggest a reasonable quantity.

5. How can I get a sample to check your quality?

Samples are free for customer; you only need to pay the courier charge.

6. How does you company control the quality?

Our company has a team of experienced QC, who do in-line and finished goods inspection, we even got certificate of ISO9001. Our products have been certified by UL, CE, SGS, RoHS, CCC etc.
