6 Core RTD Cable Thermocouple Compensation Cable FEP Insulation
  • 6 Core RTD Cable Thermocouple Compensation Cable FEP Insulation
  • 6 Core RTD Cable Thermocouple Compensation Cable FEP Insulation
  • 6 Core RTD Cable Thermocouple Compensation Cable FEP Insulation
  • 6 Core RTD Cable Thermocouple Compensation Cable FEP Insulation
  • 6 Core RTD Cable Thermocouple Compensation Cable FEP Insulation

6 Core RTD Cable Thermocouple Compensation Cable FEP Insulation

Place of Origin China
Brand Name Dingzun
Certification UL,CE,ISO9001
Model Number Z-82b
Product Details
Conductor Material::
TINNED COPPER
Stranded:
STRANDED
Construction:
0.5mm²
Insulation:
Fep
Shield:
No
Armor:
No
Temperature:
200℃
Voltage:
600v
Application:
RTD CABLE
High Light:

6 Core RTD Cable

,

FEP Insulation RTD Cable

,

RTD Thermocouple Compensation Cable

Product Description

Z-82B

Description: FEP 6 CORE RTD SENSOR SHIELDED CABLE



Details:

Conductor:Tinned copper

Construction:0.5mm2

Insulation: FEP

Shield: stainless steel wire braided

Jacket: FEP

Rated Temp: 200℃

Rated Voltage:300v

Type: RTD



A FEP 6 core RTD sensor shielded cable is a type of electrical cable specifically designed for use with RTD (resistance temperature detector) sensors.



The cable is constructed with six individual cores, each made of a conductive material that can measure temperature changes. The cores are insulated with FEP (fluorinated ethylene propylene), a high-performance insulation material that offers excellent electrical properties and resistance to chemicals and moisture.



The cable is also shielded, which means that each core is surrounded by a layer of conductive material that helps to minimize electromagnetic interference (EMI) and radio frequency interference (RFI) from external sources. This helps to ensure accurate temperature measurements and prevent false readings due to external interference.



The outer sheath of the cable is also made of FEP material, which provides additional protection against harsh environments and mechanical stress. FEP is known for its high resistance to abrasion, cuts, and impacts.



Overall, a FEP 6 core RTD sensor shielded cable is a reliable and durable option for temperature measurement applications that require high accuracy and protection against EMI and RFI. It is commonly used in industries such as aerospace, automotive, and industrial automation.

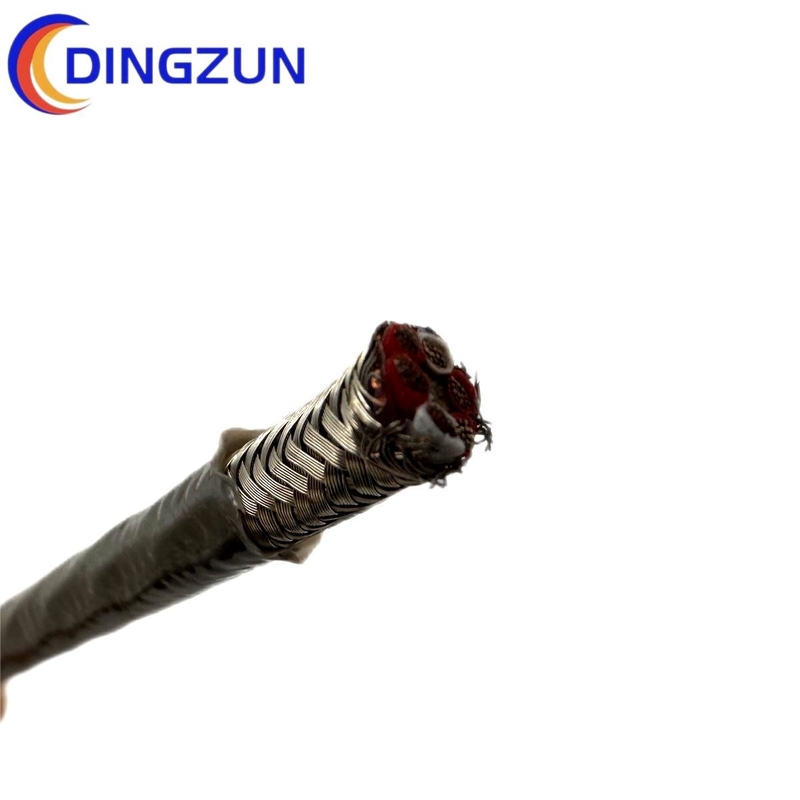

6 Core RTD Cable Thermocouple Compensation Cable FEP Insulation 06 Core RTD Cable Thermocouple Compensation Cable FEP Insulation 1
