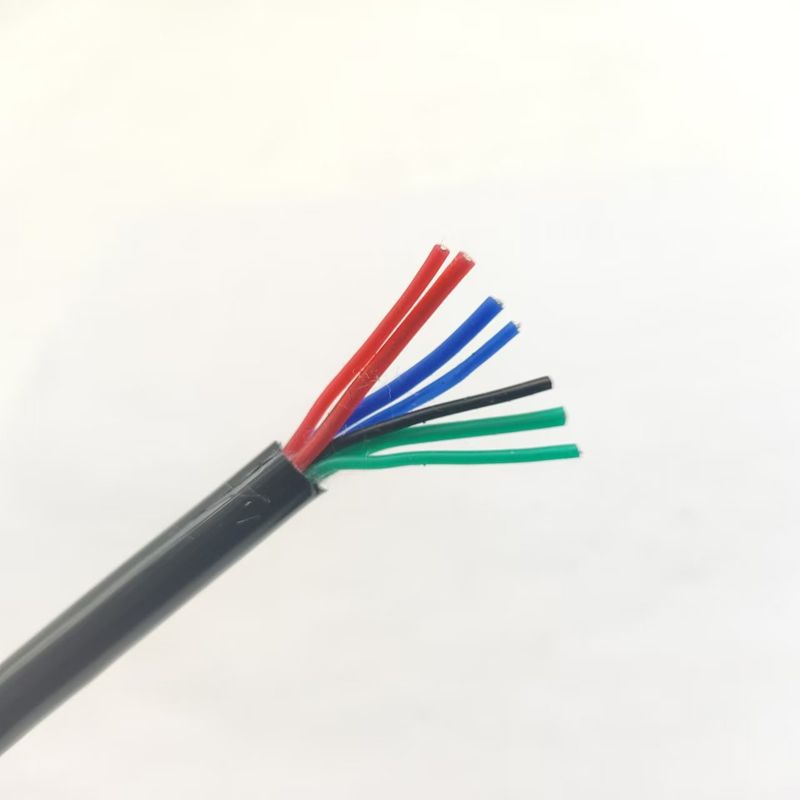

Flexible 7 Silicone Multi Core TPU Jacket Sensor Cable

The Flexible 7 Silicone Multi Core TPU Jacket Sensor Cable is a high - performance cable designed to meet the demanding requirements of various sensor - related applications.

1. Construction Details

• Section Area: With a section area of 0.2mm², this cable is optimized for efficient signal transmission while maintaining a compact size.

• Conductor: The tinned copper conductor ensures excellent electrical conductivity and corrosion resistance. Tinning the copper not only improves its conductivity but also protects it from oxidation, extending the cable's lifespan.

• Multi - stranded Construction: The multi - stranded design makes the cable highly flexible. It can be easily bent and routed in complex installations without the risk of wire breakage, which is crucial for applications where the cable needs to be moved or adjusted frequently.

• Insulation: The silicone insulation is a key feature of this cable. Silicone is known for being extremely soft and flexible. This makes the cable easy to handle during installation and allows it to adapt to different shapes and positions. It also provides excellent electrical insulation properties, ensuring reliable signal transfer even in harsh environments.

• Number of Cores: With 7 cores, the cable can support multiple signal channels simultaneously. This is ideal for sensor systems that require the transmission of different types of data or signals, such as temperature, pressure, and humidity sensors in a single integrated setup.

• Jacket: The TPU (Thermoplastic Polyurethane) jacket is tough and abrasion - resistant. TPU offers high mechanical strength, protecting the inner cores from physical damage caused by friction, impacts, and environmental factors. This makes the cable suitable for use in industrial, automotive, and other challenging environments.

• O.D.: The outer diameter of 6.9mm strikes a balance between compactness and protection. It is not too bulky to install in tight spaces, yet it provides enough room for the inner components and offers adequate protection to the cable.

2. Electrical and Thermal Ratings

• Rated Voltage: With a rated voltage of 24V, this cable is well - suited for low - voltage sensor applications. It can handle the power requirements of most common sensors without overheating or causing electrical malfunctions.

• Rated Temperature: The rated temperature of 75℃ means that the cable can operate effectively in a wide range of temperatures. It can withstand moderately high temperatures without degradation of its electrical or mechanical properties, making it suitable for use in environments with varying temperature conditions.

Flexible 7 Silicone Multi Core TPU Jacket Sensor Cable combines the flexibility of silicone insulation with the durability of a TPU jacket, making it an ideal choice for sensor applications that require both reliable performance and long - term usability.
