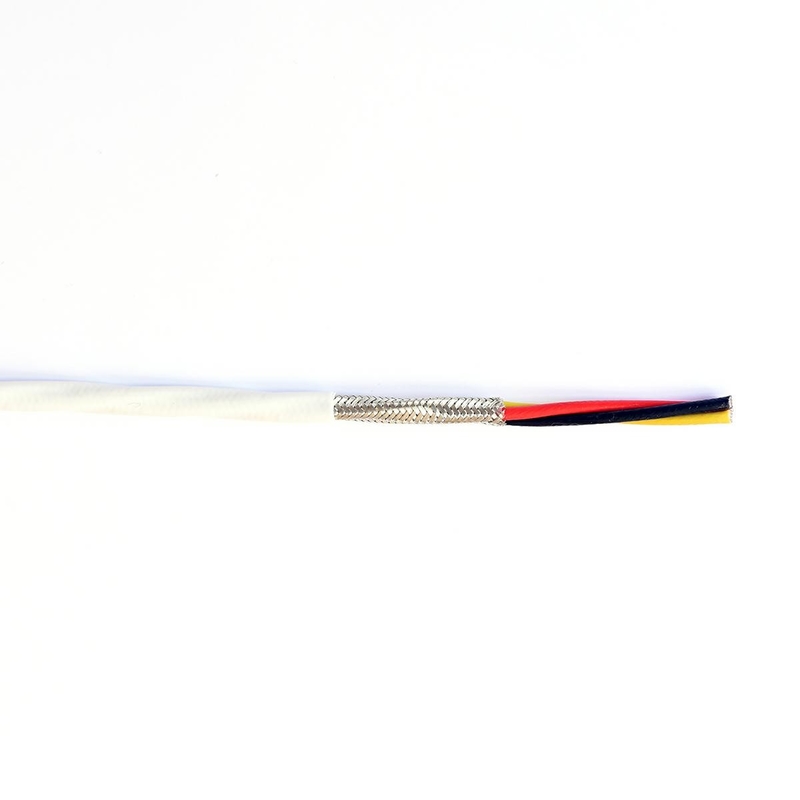

FEP Insulated Shielded Cable

FEP Insulated Shielded Cable

  • High Light

    3 Cores Insulated Shielded Cable

    ,

    FEP tinned copper cable

    ,

    Custom Insulated Shielded Cable

  • ProductName
    3cores FEP Insulated Shielded Cable
  • Conductor
    Tinned Copper
  • Construction
    3*1MM²
  • Insulation
    FEP
  • Shield
    Tinned Copper
  • Sheath
    FEP
  • Rated Temperature
    (-60c~+200c)
  • Rated Voltage
    450/750v
  • Application
    Sensors
  • Cores
    3
  • Place of Origin
    China
  • Brand Name
    Dingzun
  • Certification
    UL,CE,ISO9001
  • Model Number
    09-55
  • Minimum Order Quantity
    500m
  • Price
    Negotiable
  • Packaging Details
    250M/ROLL PACKED IN CARTON
  • Delivery Time
    15DAYS
  • Payment Terms
    L/C, T/T
  • Supply Ability
    3000M/DAY

FEP Insulated Shielded Cable

Dingzun Custom AFPF 3cores FEP Insulated Shielded Cable for instrumentation

Cables for sensors:

The three-core sensor cable uses 36AWG (7/0.05mm) conductor, TPE as insulation and sheath, and the shielded cable diameter is less than 1.0mm. Ein can develop sensor cables for various special requirements.

Multi-core high temperature resistant (-40°C~120°C) sensor cables are suitable for sensor cables with rated voltage and current 600V, rated temperature 120°C, and minimum ambient temperature -40°C; It is characterized by good resistance to high and low temperature

Small diameter, light weight, strong mechanical properties, resistance to various chemical solvents, outstanding heat aging performance.

WG
AWG
Conductor
(mm)
Avg.Insulation Thickness(mm)
Jacket Thickness(mm)
OD
(mm)
2*26


26


7/0.16


0.76


1.14
6.3±0.2
3*26
6.6±0.2
4*26
7.1±0.2
5*26
7.7±0.2
2*24


24


7/0.20


0.76


1.14
6.5±0.2
3*24
6.9±0.2
4*24
7.4±0.2
5*24
8.0±0.2
2*22


22


7/0.254


0.76


1.14
6.9±0.2
3*22
7.2±0.2
4*22
7.8±0.2
5*22
8.5±0.3
2*20


20


10/0.254


0.76


1.14
7.2±0.2
3*20
7.6±0.2
4*20
8.2±0.3
5*20
8.9±0.3
2*18


18


16/0.254


0.76


1.14
7.7±0.3
3*18
8.1±0.3
4*18
8.8±0.5
5*18
9.5±0.5
2*16


16


26/0.254


0.76


1.14
8.3±0.3
3*16
8.8±0.3
4*16
9.6±0.5
5*16
10.4±0.5
2*14


14


41/0.254


0.76


1.14
9.1±0.5
3*14
9.6±0.5
4*14
10.5±0.5
5*14
11.5±0.5
Remarks: able to produce according to customer’s requirement

Application: this type of cable can be used for many fields such electronic machine, machine manufacturing, automotive manufacturing etc

                    a lot of industrial instruments require this product



Features:

· Excellent corrosion resistance, oil resistance, strong acid resistance, strong alkali resistance, strong oxidant, anti-microbial resistance, does not allow any fungus formation, etc. · Excellent electrical insulation performance, With low and almost frequency independent dielectric properties, high voltage resistance, high frequency loss, no moisture absorption, water absorption <0, minimum water vapor permeability (about 0.18Mgr /cm2 within 24 hours), large insulation resistance, non-flammable, self-extinguishing, Flame retardant test conforms to DIN VDE 0482 Part 265-2-1/ EN 50265-2-1/ IEC 60332-1 · Does not contain harmful substances and conforms to ROHS standards

Application:

In the electronic industry, it can be used for temperature compensation wire, low temperature resistant wire, high temperature heating wire, aging resistant wire and flame retardant wire. In the household appliance industry, it can be used for air conditioner, microwave oven, electronic disinfection cabinet, rice cooker, electronic hot water bottle, electric heater, electric oven, electric casserole. Internal wiring · This cable is mainly used for installation in control cabinets affected by high heat effect, as well as in brick factories, heaters, kitchen equipment and measuring equipment, and chemical industry cables.



Shanghai Dingzun Special Electric Wire and Cable Co., Ltd. as a high-tech enterprise was established in 2005, which engaged in special wire and cable research, development, design, manufacturing.



Shanghai Dingzun Special Electric Wire and Cable Co., Ltd. has strong technical force, existing staff 132 people, including senior titles of professional and technical personnel 26 people, with our own invention patent. We understand the technical standards and production standards of wire and cable of various countries in the world, can design and produce 6 categories, more than 800 types and specifications of wire and cable. The annual output reaches 70 million meters. The main products are high temperature resistant wire and cable, high voltage resistant wire and cable, shielded cable, coaxial cable, thermocouple compensation wire and other special wire and cable. Products are widely used in aerospace, electronic appliances, instrumentation, metallurgy and chemical industries, especially for high temperature, low temperature, strong acid, strong alkali, high oil, strong radiation and other harsh working environment.



Currently our company has two production workshops, nearly 5000 square meters of production space, equipped with 18 production lines of various types, 156 other auxiliary production equipment, 48 testing equipment, including 36 inline testing equipment. Complete testing equipment guarantee premium product quality, meanwhile strong production capacity ensures timely order delivery.



The company has passed ISO9001:2015 international quality management system certification, our products have passed CCC compulsory certification in China, UL certification in the United States, CE certification in the European Union, and our products are sold to the United States, Europe, Japan and other countries and regions. Our system certification, product safety certification and global customers praise prove that our products are trustworthy. In addition, the wire and cable we produce also passed RoHS testing, in line with the environmental requirements of the European Union, we protect our common green home together with you.



According to customer requirements, we can also do custom design, production, to meet customer specific requirements of wire and cable, or according to customer construction drawings to make product customization.



Our production base is located in Shanghai, the largest commercial city in China, which can quickly and conveniently reach all countries of the world.



Dingzun Cable connecting the whole world, outputting surging power, transferring the cooperation signal, shares opportunities and future.
