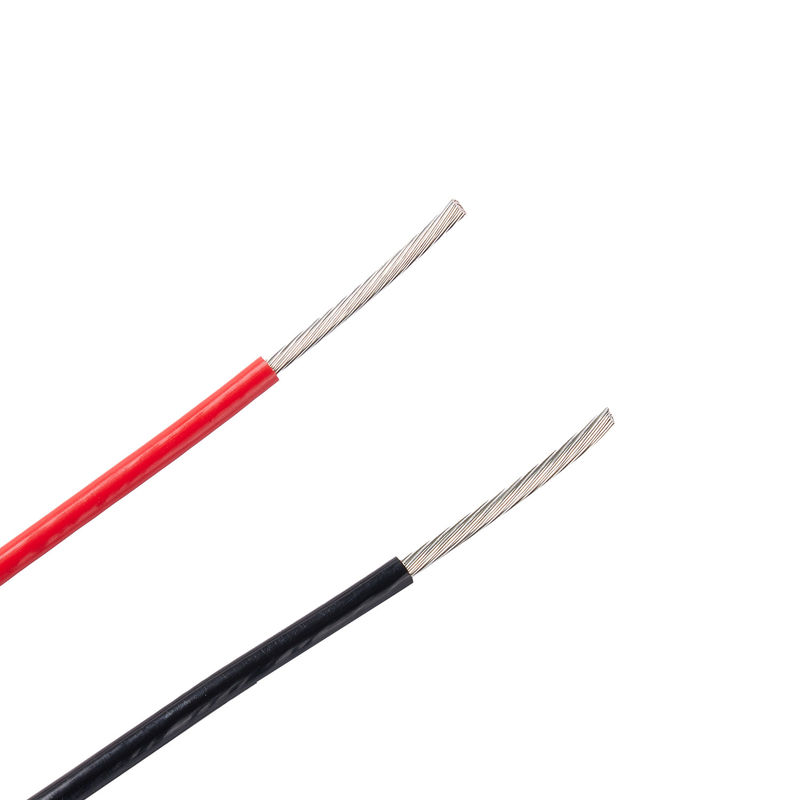

HEAT 205 UL1577 FEP High Temperature Cable For Instrumentation

Place of Origin China
Brand Name Dingzun
Certification UL,CE,ISO9001
Model Number 01-16
Product Details
Conductor Type:
Solid Or Stranded
Conductor Material::
Tinned Copper
Insulation Material::
FEP
Type::
Solid Or Stranded
Rated Temperature:
-80℃~+200℃
Rated Voltage::
600V
Size::
32AWG-16AWG
Application::
Electronic Appliances
Inspection::
Strict Inspection Personnel And Promotion
Sample::
Can Be Provided For Evaluating
Highlight:

FEP High Temperature Cable

,

UL1577 high temp wire

,

Instrumentation High Temperature Cable

Product Description

Dingzun Cable Hot Selling Good Quality UL1577 FEP HIGH TEMPERATURE WIRE for Instrumentation

Details:HEAT 205

wire UL1577
Product brand: Dingzun
Product performance:
Excellent fire resistance, chemical resistance, aging resistance,
Can resist strong acid, strong alkali;
Excellent resistance to humidity and ultraviolet light;
Excellent electrical insulation performance, insulation resistance;
Excellent mechanical strength performance;
Rating: 200℃ N/S

Product Description:
Color: All, including transparent
Conductor: tinned copper wire
Insulation: FEP
Product Classification:
FEP, UL certified wire and cable, certification classification
Technical parameters:
Rated Temperature:-80℃∽+200℃
Rated Voltage:600V
Conductor:32AWG-16AWG solid or stranded Tinned copper
Insulation:FEP(F46)
Colors: red, yellow, blue, white, black, green, brown, orange, purple, yellow green, transparent etc.
Certificate: tested and approved by UL, UL file No.: E311865

Application: widely used in electronic appliances, lighting, instrumentation etc.




AWG

Section

(mm2)

Conductor

No./Dia.

(mm)

Avg. Insulation Thickness

(mm)

Min. Insulation Thickness

(mm)

Overall Dia.

(mm)

Max. Resistance

20℃(≤Ω/km)

32 0.03 7/0.08 0.31 0.285 0.82 588.3
    1/0.20 0.31 0.285 0.86 664.8
30 0.05 7/0.10 0.31 0.285 0.874 361
    1/0.254 0.31 0.285 0.92 381
28 0.08 7/0.12 0.31 0.285 0.94 227
    1/0.32 0.31 0.285 0.98 239
26 0.13 7/0.16 0.31 0.285 1.02 143
    1/0.41 0.31 0.285 1.10 150
24 0.22 7/0.20 0.31 0.285 1.12 89.3
    1/0.50 0.31 0.285 1.22 94.2
22 0.33 1/0.65 0.31 0.285 1.27 56.4
    19/0.16 0.31 0.285 1.42 59.4
20 0.5 1/0.80 0.31 0.285 1.42 35.2
    19/0.18 0.31 0.285 1.57 36.7
18 0.8 19/0.23 0.31 0.285 1.77 23.2
17 1.0 19/0.26 0.31 0.285 1.92 18.3
16 1.3 19/0.30 0.31 0.285 2.12 14.6
Remarks: more AWG available, pls. contact us
