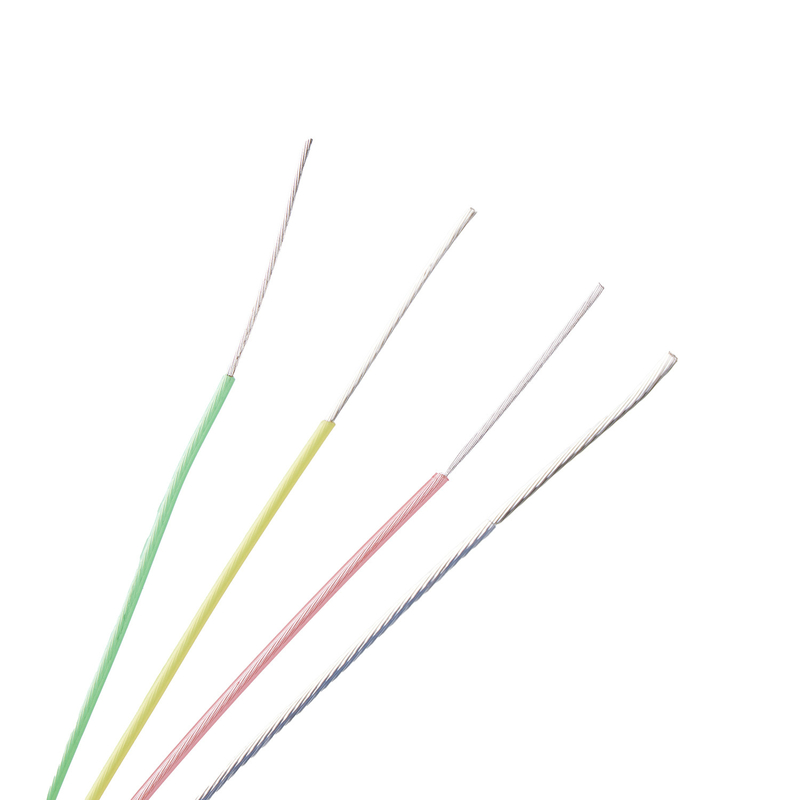

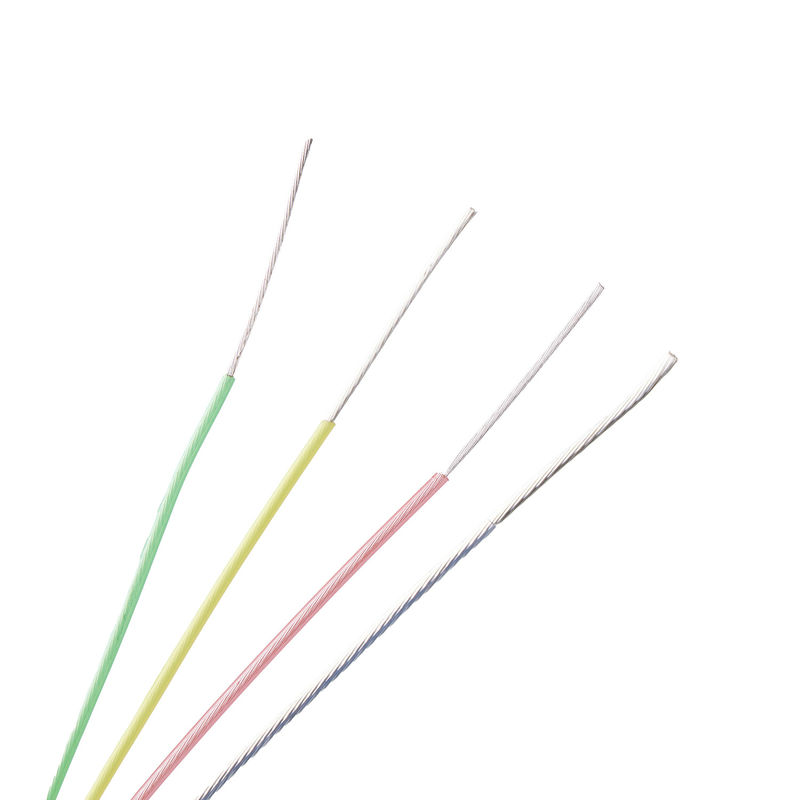

HEAT 205 Insulated AF200 FEP Wire High Temperature Cable Solid Stranded
Product Summary
DingZun Cable Hot Selling Insulated AF200 FEP Wire for Electronic Appliances Technical Parameters Details:HEAT 205 Rated Temperature:-65℃∽+200℃ Rated Voltage:600V Conductor:solid/stranded Silver Copper Insulation:FEP(F46) Color: red, yellow, blue, white, black, green, brown, orange, purple, yellow ...
AF200 High Temperature Cable
,Stranded Cable
,Insulated High Temperature Cable
DingZun Cable Hot Selling Insulated AF200 FEP Wire for Electronic Appliances
Technical Parameters
Details:HEAT 205
Rated Temperature:-65℃∽+200℃
Rated Voltage:600V
Conductor:solid/stranded Silver Copper
Insulation:FEP(F46)
Color: red, yellow, blue, white, black, green, brown, orange, purple, yellow green, transparent etc.
Certificate/Standard: GJB773-2000
Application: widely used in electronic appliances, lighting, instrumentation
|
Section (mm2) |
Conductor No./ Dia. (mm) |
Avg.Insulation Thickness (mm) |
Overall Dia. (mm) |
Max. Resistance 20℃(≤Ω/km) |
| 0.014 | 7/0.05 | 0.15 | 0.45 | 1343 |
| 0.030 | 1/0.20 | 0.15 | 0.50 | 560 |
| 0.035 | 7/0.08 | 0.15 | 0.55 | 525 |
| 0.05 | 7/0.10 | 0.15 | 0.60 | 330 |
| 1/0.26 | 0.17 | 0.60 | 386.9 | |
| 0.07 | 1/0.30 | 0.20 | 0.70 | 245.0 |
| 0.08 | 7/0.12 | 0.20 | 0.76 | 227.0 |
| 0.12 | 7/0.15 | 0.25 | 0.95 | 146.0 |
| 1/0.40 | 0.20 | 0.80 | 146.9 | |
| 0.20 | 7/0.20 | 0.25 | 1.10 | 83.5 |
| 1/0.50 | 0.25 | 1.00 | 94.0 | |
| 0.35 | 19/0.16 | 0.25 | 1.30 | 49.5 |
| 0.50 | 19/0.18 | 0.25 | 1.40 | 36.0 |
| 1/0.80 | 0.30 | 1.40 | 36.7 | |
| 0.75 | 19/0.23 | 0.28 | 1.70 | 22.7 |
| 1/0.97 | 0.26 | 1.50 | 24.7 | |
| 1.0 | 19/0.26 | 0.28 | 1.85 | 19.0 |
| 1.13 | 1/1.20 | 0.30 | 1.80 | 16.5 |
| 1.2 | 19/0.28 | 0.30 | 2.00 | 15.3 |
| 1.5 | 19/0.32 | 0.32 | 2.25 | 11.7 |
| 2.0 | 19/0.37 | 0.32 | 2.50 | 9.45 |
| 2.5 | 19/0.41 | 0.40 | 2.85 | 6.86 |
| 4 | 37/0.37 | 0.40 | 3.39 | 4.51 |
| 6 | 37/0.45 | 0.50 | 4.15 | 3.05 |
| 8 | 133/0.28 | 0.50 | 5.20 | 2.16 |
| 10 | 133/0.32 | 0.50 | 5.80 | 1.68 |
| 16 | 133/0.39 | 0.60 | 7.00 | 1.13 |
| 20 | 133/0.45 | 0.60 | 8.00 | 0.886 |
| 25 | 196/0.40 | 0.60 | 8.80 | 0.734 |
| 35 | 494/0.30 | 0.70 | 10.40 | 0.511 |
| 50 | 396/0.40 | 0.80 | 12.20 | 0.358 |
| 70 | 551/0.40 | 1.00 | 14.60 | 0.270 |
| 95 | 760/0.40 | 1.20 | 17.20 | 0.210 |
| Remarks: able to produce according to customer’s requirements | ||||
Shanghai Dingzun Special Electric Wire and Cable Co., Ltd. as a high-tech enterprise was established in 2005, which engaged in special wire and cable research, development, design, manufacturing.
Shanghai Dingzun Special Electric Wire and Cable Co., Ltd. has strong technical force, existing staff 132 people, including senior titles of professional and technical personnel 26 people, with our own invention patent. We understand the technical standards and production standards of wire and cable of various countries in the world, can design and produce 6 categories, more than 800 types and specifications of wire and cable. The annual output reaches 70 million meters. The main products are high temperature resistant wire and cable, high voltage resistant wire and cable, shielded cable, coaxial cable, thermocouple compensation wire and other special wire and cable. Products are widely used in aerospace, electronic appliances, instrumentation, metallurgy and chemical industries, especially for high temperature, low temperature, strong acid, strong alkali, high oil, strong radiation and other harsh working environment.
Dingzun Cable connecting the whole world, outputting surging power, transferring the cooperation signal, shares opportunities and future.
1. Are you a manufacture or trading company?
We are a professional manufacture over 18 years, and our factory based in Shanghai. Warmly welcome to visit us.
2. Does your company accept OEM production?
Sure, our company policy is Order Oriented Customization, we could print your brand and produce according to your specification, if the minimum quantity achieved.
3. What about the lead time for mass production?
Our production capacity is sufficient, normally 10-20 days we can deliver your order, only if quantity is big, we’ll offer you specified delivery time.
4. What’s your minimum quantity?
Usually 100m, however cable is heavy product, the freight really costs, we suggest a reasonable quantity.
5. How can I get a sample to check your quality?
Samples are free for customer; you only need to pay the courier charge.
6. How does you company control the quality?
