High Temperature Low Loss Coaxial Cable For Instrumentation

Place of Origin China
Brand Name Dingzun
Certification UL,CE,ISO9001
Model Number 08-05
Product Details
Product Name::
RG-316D HIGH TEMPERATURE TRANSMISSION COAXIAL CABLE
Rated Temperature::
-55℃`+200℃
Rated Voltage::
Voltage Test 2000v, Spark Test Voltage 4000 V
Size:
Not Specified
MOQ:
100M
Colors:
Any Color Is Ok
OEM:
We Can Produce Any Your Designs
Inspection:
Strict Inspection Personnel And Promotion
Sample:
Can Be Provided For Evaluating
Port:
Shanghai
High Light:

High Temp Coaxial Cable

,

Transmission Low Loss Coaxial Cable

,

Instrumentation Ptfe Insulation Coaxial Cable

Product Description

Dingzun Cable The Fine Quality High Temperature RG-316D High Temperature Transmission Coaxial Cable for Instrumentation

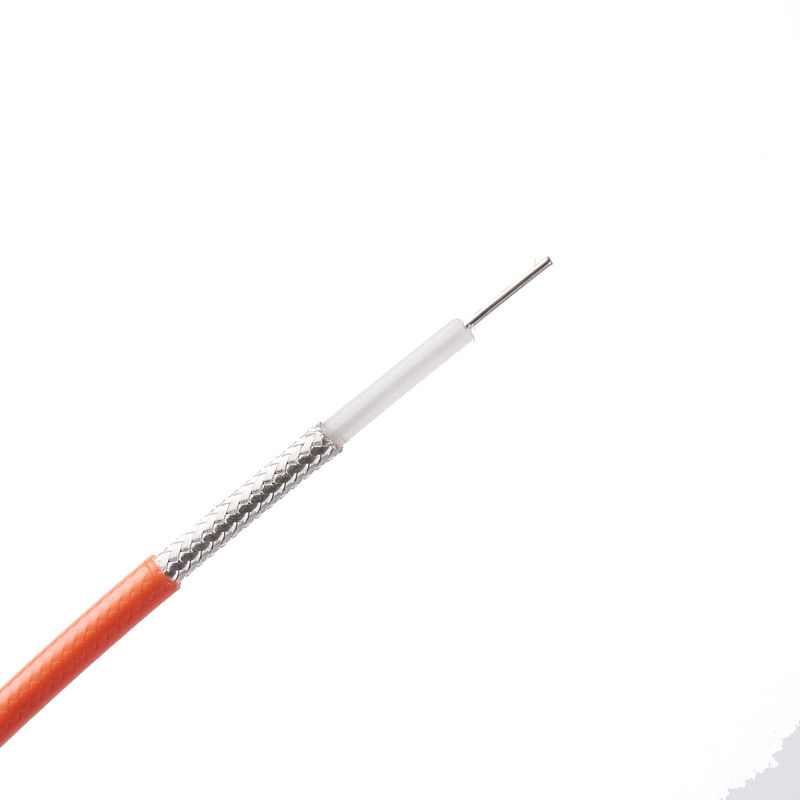

RG316D double shielding

Outer sheath material: PTFE high temperature resistant sheath

Shielding material: high purity oxygen free copper silver plated encryption shield

Internal insulation material: PTFE high temperature resistant ethylene insulation

Inner conductor material: high purity oxygen free copper plated silver stranded wire core

Technical Parameters

Rated Temperature:-55℃∽+200℃

Rated Voltage:voltage test 2000v, spark test voltage 4000 v

Conductor:Sliver copper

Insulation:PTFE

Color: light brown, transparent, blue

Certificate/Standard: Product conform to RoHS and flame retardant Standard

Application: Widely used for high frequency signal transmission in communication equipment or other electronic equipment



Style

Conductor

No./ Dia.

(mm)

outer dia (mm) shield layers

Average jacket thickness

(mm)

OD

(mm)

attenuation constant (≤dB/m)
30Hz 200Hz 3000Hz
RG-316D 7/0.18 1.50 2 ≥0.25 3.10 0.19 0.50 2.0




Shanghai Dingzun Special Electric Wire and Cable Co., Ltd. as a high-tech enterprise was established in 2005, which engaged in special wire and cable research, development, design, manufacturing.



Shanghai Dingzun Special Electric Wire and Cable Co., Ltd. has strong technical force, existing staff 132 people, including senior titles of professional and technical personnel 26 people, with our own invention patent. We understand the technical standards and production standards of wire and cable of various countries in the world, can design and produce 6 categories, more than 800 types and specifications of wire and cable. The annual output reaches 70 million meters. The main products are high temperature resistant wire and cable, high voltage resistant wire and cable, shielded cable, coaxial cable, thermocouple compensation wire and other special wire and cable. Products are widely used in aerospace, electronic appliances, instrumentation, metallurgy and chemical industries, especially for high temperature, low temperature, strong acid, strong alkali, high oil, strong radiation and other harsh working environment.



Currently our company has two production workshops, nearly 5000 square meters of production space, equipped with 18 production lines of various types, 156 other auxiliary production equipment, 48 testing equipment, including 36 inline testing equipment. Complete testing equipment guarantee premium product quality, meanwhile strong production capacity ensures timely order delivery.



The company has passed ISO9001:2015 international quality management system certification, our products have passed CCC compulsory certification in China, UL certification in the United States, CE certification in the European Union, and our products are sold to the United States, Europe, Japan and other countries and regions. Our system certification, product safety certification and global customers praise prove that our products are trustworthy. In addition, the wire and cable we produce also passed RoHS testing, in line with the environmental requirements of the European Union, we protect our common green home together with you.



According to customer requirements, we can also do custom design, production, to meet customer specific requirements of wire and cable, or according to customer construction drawings to make product customization.



Our production base is located in Shanghai, the largest commercial city in China, which can quickly and conveniently reach all countries of the world.
