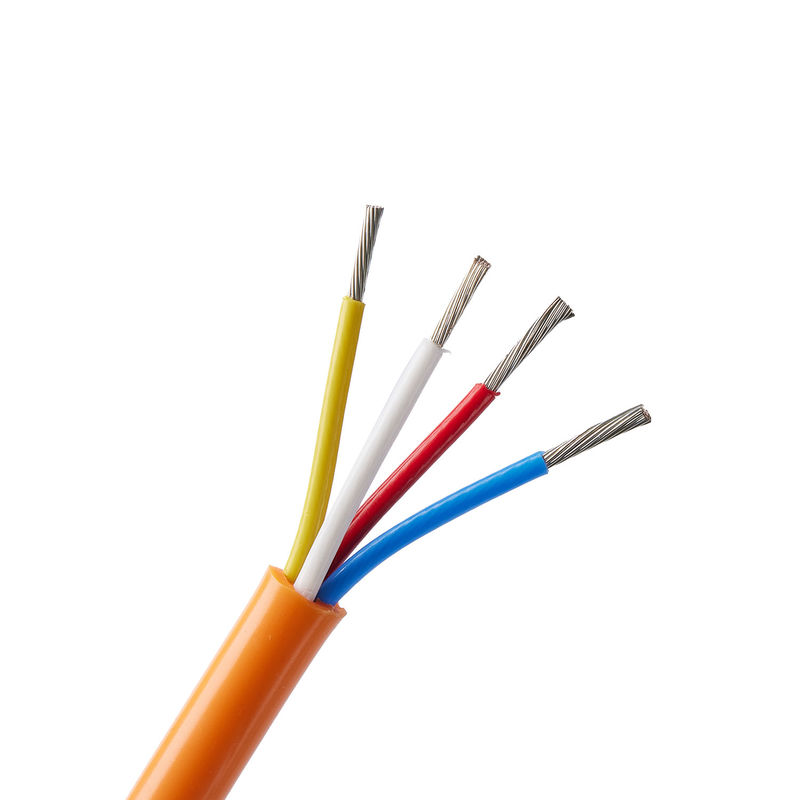

SIHF Ultra Flexible Silicone Insulated Copper Wire High Temperature Cable

Place of Origin China
Brand Name Dingzun
Certification UL,CE,ISO9001
Model Number 09-05
Product Details
Product Name::
YGZF INSULATED SILICONE RUBBER SHEATHED HIGH TEMPERATURE CABLE
Conductor Material::
Solid And Stranded
Insulation Material::
FEP,PFA,PTFE
Rated Temperature::
-65℃~200℃
Rated Voltage::
600V
Type:
Solid And Stranded
Application::
Electronic Appliances
OEM:
We Can Produce Any Your Designs
Sample:
Can Be Provided For Evaluating
Inspection:
Strict Inspection Personnel And Promotion
High Light:

Ultra Flexible Silicone Insulated Copper Wire

,

stranded High Temperature Cable

,

Silicone Insulated High Temperature Cable

Product Description

Ultra Flexible Silicone Insulated Copper Wire High Temperature Cable

Details:SIHF

Rated Temperature:-65℃∽+200℃
Rated Voltage:600V
Conductor:Silver copper/Tinned copper
Insulation:FEP,PFA,PTFE
Core color:Red, yellow, blue, white, black, green, brown, orange, gray, transparent, and bicolor etc.
Jacket material:Silicone rubber
Jacket color: Red, yellow, blue, white, black, green, brown, orange, gray etc.
Application: high voltage wire for electronic appliances and other equipments (automatic equipment)
YGZF Teflon wire core silicone rubber sheath cable used in long-term humid environment, electrical performance and waterproof, mildew resistance performance is superior. Excellent bending performance, small bending radius of the cable diameter 16 times, mobile use. use
Used in high temperature environment of all kinds of mobile motors, steel, aviation, power plant, petrochemical and so on with rated AC voltage 450/750V and below.
Product features
(a) U0 / U for 450/750 v.
(b) The laying temperature of the cable shall not be lower than 0℃
(c) Recommended allowable bending radius when laying cables; Not less than 6 times of the cable outer diameter for unarmored and not less than 12 times of the cable outer diameter for armored.
Scope of use of silicone wire
Laid indoors, mobile requirements soft, shielding and other occasions.
The bending radius shall be greater than 6 times of the cable diameter, and the ambient temperature for laying shall not be lower than 0℃.
YGZF Teflon wire core silicone rubber sheath cable features/uses:
Used in long-term humid environment, excellent electrical performance, waterproof, mildew resistance. Excellent bending performance, small bending radius of the cable diameter 16 times, mobile use.
This product is suitable for mobile or fixed laying electrical instrument connection line or signal transmission with AC rated voltage up to and including 450/750V.
Cable has good thermal stability, can maintain good electrical properties and softness in high temperature, low temperature, corrosion, suitable
Metallurgy, electric power, petrochemical and other industries with mobile temperature and other special requirements for use.


Section

(mm2)

Conductor

No./ Dia.

(mm)

Avg.

Insulation Thickness

(mm)

Core Number

Jacket Thickness

(mm)

Max. Resistance

20℃(≤Ω/km)

Tinned copperSilver copper
0.0357/0.080.15≤37core≥1.0568525
0.057/0.100.20356330
0.087/0.120.20245227
0.127/0.150.25160146
0.207/0.200.2590.483.5
0.3519/0.160.2553.149.5
0.5019/0.180.2536.736.0
0.7519/0.230.28≤19core≥1.224.622.7
1.019/0.260.2820.419.0
1.519/0.320.3212.711.7
2.019/0.370.3210.09.45
2.519/0.410.407.436.86
4.037/0.370.40≤7core≥1.54.884.51
6.037/0.450.503.303.05
Remarks: able to produce according to customer’s requirement

Shanghai Dingzun Special Electric Wire and Cable Co., Ltd. as a high-tech enterprise was established in 2005, which engaged in special wire and cable research, development, design, manufacturing.

Shanghai Dingzun Special Electric Wire and Cable Co., Ltd. has strong technical force, existing staff 132 people, including senior titles of professional and technical personnel 26 people, with our own invention patent. We understand the technical standards and production standards of wire and cable of various countries in the world, can design and produce 6 categories, more than 800 types and specifications of wire and cable. The annual output reaches 70 million meters. The main products are high temperature resistant wire and cable, high voltage resistant wire and cable, shielded cable, coaxial cable, thermocouple compensation wire and other special wire and cable. Products are widely used in aerospace, electronic appliances, instrumentation, metallurgy and chemical industries, especially for high temperature, low temperature, strong acid, strong alkali, high oil, strong radiation and other harsh working environment.

Currently our company has two production workshops, nearly 5000 square meters of production space, equipped with 18 production lines of various types, 156 other auxiliary production equipment, 48 testing equipment, including 36 inline testing equipment. Complete testing equipment guarantee premium product quality, meanwhile strong production capacity ensures timely order delivery.

The company has passed ISO9001:2015 international quality management system certification, our products have passed CCC compulsory certification in China, UL certification in the United States, CE certification in the European Union, and our products are sold to the United States, Europe, Japan and other countries and regions. Our system certification, product safety certification and global customers praise prove that our products are trustworthy. In addition, the wire and cable we produce also passed RoHS testing, in line with the environmental requirements of the European Union, we protect our common green home together with you.

According to customer requirements, we can also do custom design, production, to meet customer specific requirements of wire and cable, or according to customer construction drawings to make product customization.

Our production base is located in Shanghai, the largest commercial city in China, which can quickly and conveniently reach all countries of the world.

Dingzun Cable connecting the whole world, outputting surging power, transferring the cooperation signal, shares opportunities and future.
