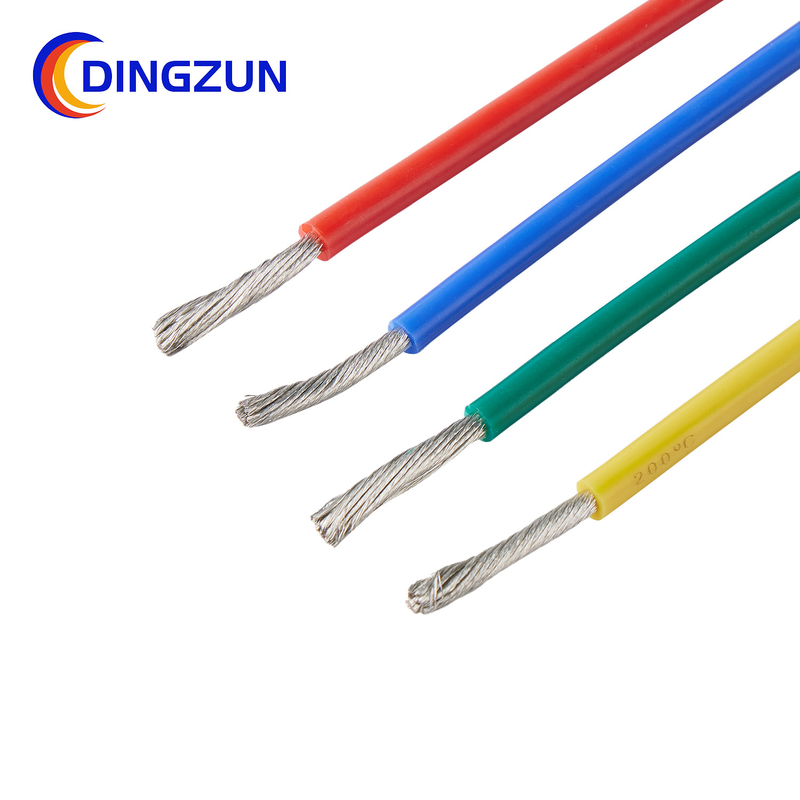

Instrumentation Heat Resistant Silicone Cable

Instrumentation Heat Resistant Silicone Cable

  • High Light

    GRR heat resistant silicone cable

    ,

    heat resistant insulated wire 500V

    ,

    Instrumentation heat resistant silicone cable

  • Product Name
    GRR SILICONE RUBBER CABLE
  • Conductor Material
    NOT SPECIFIED
  • Insulation Material
    Rubber
  • Rated Temperature
    -60℃~+180℃
  • Rated Voltage
    500V
  • Application
    Instrumentation
  • Type
    Solid And Stranded
  • OEM
    We Can Produce Any Your Designs
  • Sample
    Can Be Provided For Evaluating
  • Inspection
    Strict Inspection Personnel And Promotion
  • Place of Origin
    China
  • Brand Name
    Dingzun
  • Certification
    UL,CE,ISO9001
  • Model Number
    12-01
  • Minimum Order Quantity
    500m
  • Price
    Negotiable
  • Packaging Details
    250M/ROLL PACKED IN CARTON
  • Delivery Time
    15DAYS
  • Payment Terms
    L/C, T/T
  • Supply Ability
    3000M/DAY

Instrumentation Heat Resistant Silicone Cable

DingZun Cable Quality Assurance GRR Silicon Rubber Cable for Instrumentation

1. Silicone rubber material, good softness. Can be USED FOR AC RATED VOLTAGE 500 VOLTS AND BELOW electrical wiring installation and connection, widely used in electric heating appliances, paint rooms, lighting equipment lighting and household appliances.

2. Polyteflon. Can be used in instruments, aerospace, electric power smelting, chemical industry, ships, vehicles, food machinery, household appliances, drying room, etc.

Instrumentation Heat Resistant Silicone Cable 0

Technical Parameters
Rated Temperature:-60℃∽+180℃,excellent performance for cold resistance and heat resistance
Rated Voltage:500V
Conductor:super soft stranded conductor
Insulation:Silicone Rubber
Color: red, yellow, blue, white, black, green, brown, orange, purple, yellow green, transparent etc.
Flexible wire bending resistance easy to install
Application: widely used in electronic appliances, lighting, instrumentation

Section(mm2) Conductor(mm) Avg.Insulation Thickness(mm) Overall Dia(mm)

Max. Resistance

20℃

(≤Ω/km)

0.07 according to purchase order specification sheet 0.45 1.30 365
0.10 0.45 1.30 188
0.12 0.45 1.35 160
0.15 0.45 1.35 136
0.2 0.60 1.8 95
0.3 0.60 1.9 72
0.4 0.50 1.85 50
0.5 0.60 2.20 40
0.75 0.70 2.60 27
1 0.70 2.80 20
1.5 0.70 3.10 14
2 0.70 3.30 10
2.5 0.80 3.70 8.2
4 0.80 4.30 4.88
6 0.80 5.20 4.0
10 1.00 6.80 1.95
16 1.50 9.00 1.24
25 1.50 10.70 0.8
35 1.90 12.50 0.565
50 2.00 14.00 0.393
70 2.00 16.40 0.277
95 2.00 18.50 0.210
120 2.20 20.40 0.164
Remarks: able to produce according to customer’s requirement

Shanghai Dingzun Special Electric Wire and Cable Co., Ltd. as a high-tech enterprise was established in 2005, which engaged in special wire and cable research, development, design, manufacturing.
 Instrumentation Heat Resistant Silicone Cable 1
Shanghai Dingzun Special Electric Wire and Cable Co., Ltd. has strong technical force, existing staff 132 people, including senior titles of professional and technical personnel 26 people, with our own invention patent. We understand the technical standards and production standards of wire and cable of various countries in the world, can design and produce 6 categories, more than 800 types and specifications of wire and cable. The annual output reaches 70 million meters. The main products are high temperature resistant wire and cable, high voltage resistant wire and cable, shielded cable, coaxial cable, thermocouple compensation wire and other special wire and cable. Products are widely used in aerospace, electronic appliances, instrumentation, metallurgy and chemical industries, especially for high temperature, low temperature, strong acid, strong alkali, high oil, strong radiation and other harsh working environment.

Currently our company has two production workshops, nearly 5000 square meters of production space, equipped with 18 production lines of various types, 156 other auxiliary production equipment, 48 testing equipment, including 36 inline testing equipment. Complete testing equipment guarantee premium product quality, meanwhile strong production capacity ensures timely order delivery.

The company has passed ISO9001:2015 international quality management system certification, our products have passed CCC compulsory certification in China, UL certification in the United States, CE certification in the European Union, and our products are sold to the United States, Europe, Japan and other countries and regions. Our system certification, product safety certification and global customers praise prove that our products are trustworthy. In addition, the wire and cable we produce also passed RoHS testing, in line with the environmental requirements of the European Union, we protect our common green home together with you.

According to customer requirements, we can also do custom design, production, to meet customer specific requirements of wire and cable, or according to customer construction drawings to make product customization.

Our production base is located in Shanghai, the largest commercial city in China, which can quickly and conveniently reach all countries of the world.
 Instrumentation Heat Resistant Silicone Cable 2
Dingzun Cable connecting the whole world, outputting surging power, transferring the cooperation signal, shares opportunities and future.


1. Are you a manufacture or trading company?

We are a professional manufacture over 18 years, and our factory based in Shanghai. Warmly welcome to visit us.

2. Does your company accept OEM production?

Sure, our company policy is Order Oriented Customization, we could print your brand and produce according to your specification, if the minimum quantity achieved.

3. What about the lead time for mass production?

Our production capacity is sufficient, normally 10-20 days we can deliver your order, only if quantity is big, we’ll offer you specified delivery time.

4. What’s your minimum quantity?

Usually 100m, however cable is heavy product, the freight really costs, we suggest a reasonable quantity.

Instrumentation Heat Resistant Silicone Cable 3

5. How can I get a sample to check your quality?

Samples are free for customer; you only need to pay the courier charge.

6. How does you company control the quality?

Our company has a team of experienced QC, who do in-line and finished goods inspection, we even got certificate of ISO9001. Our products have been certified by UL, CE, SGS, RoHS, CCC etc.
