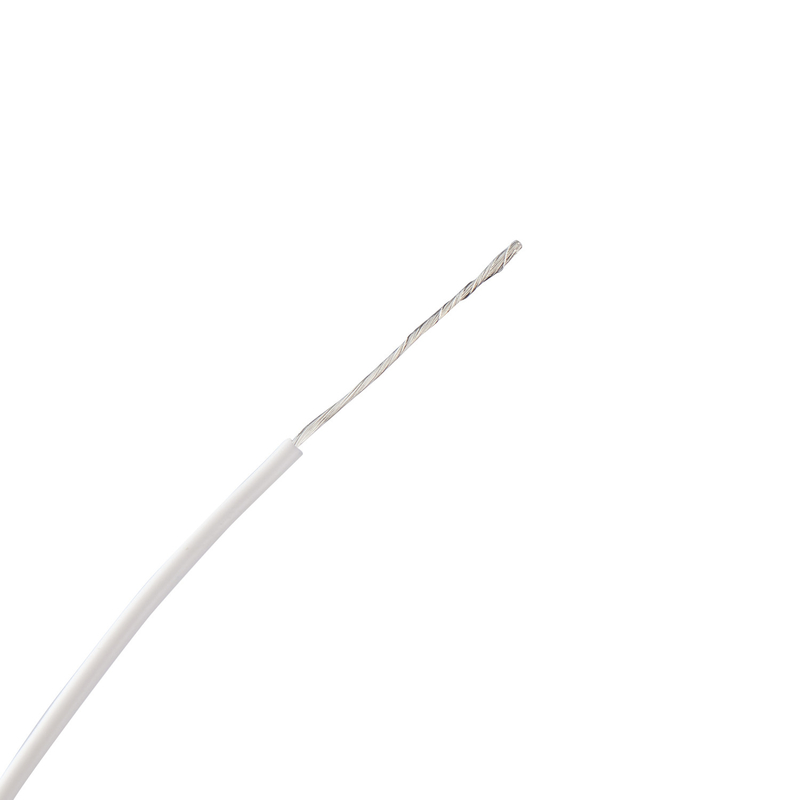

High Temp Silicone Cable
>
|
|
| Place of Origin | China |
| Brand Name | Dingzun |
| Certification | UL,CE,ISO9001 |
| Model Number | 04-11 |
Details:SIF SIFE
Construction:
Single or multiple strands of bare copper or tinned copper wire stranded soft conductor bare copper wire performance refer to GB/T 3953-2009; Tinned copper wire performance reference GB/T4910-2009 standard; Conductor structure reference GB/T3956-2008 requirements · silicone rubber insulation insulation material performance reference GB/T2951-2008; The outer diameter of finished wire and cable refers to GB/T2951-2008; The electrical performance of finished wires and cables refer to GB/T30948-2007 technical data.
Model: UL3142
Implementation standard: UL758-2000
Product Features:
1. Rated voltage: 600V
2, working temperature: -60 ~ +150℃
3, guide body: solid core or stranded tinned copper wire
4, edge: silicone rubber
5, color: red/yellow/blue/white/black/yellow green/brown, etc
Features/Uses:
It has excellent high temperature resistance and low temperature resistance, excellent electrical insulation performance, excellent chemical stability, high voltage resistance, aging resistance, long service life. And soft and easy to install.
Widely used in lighting lamps, household appliances, electric appliances, instruments, electrical wiring and electronics, lamps, fuel appliances and other high temperature environment.
|
AWG |
Section (mm2) |
Conductor No./ Dia. (mm) |
Avg. Insulation Thickness (mm) |
Min. Insulation Thickness (mm) |
Overall Dia. (mm) |
Max. Resistance 20℃(≤Ω/km) |
| 18 | 0.8 | 7/0.40 | 1.52 | 1.37 | 4.24 | 23.2 |
| 17 | 1.0 | 32/0.20 | 1.52 | 1.37 | 4.34 | 20 |
| 16 | 1.3 | 7/0.50 | 1.52 | 1.37 | 4.54 | 14.6 |
| 15 | 1.5 | 30/0.25 | 1.52 | 1.37 | 4.64 | 14 |
| 14 | 2.0 | 41/0.25 | 1.52 | 1.37 | 4.89 | 10 |
| 13 | 2.5 | 49/0.25 | 1.52 | 1.37 | 5.09 | 8.2 |
| 12 | 3.3 | 49/0.30 | 1.52 | 1.37 | 5.57 | 5.64 |
| Remarks: more AWG available, pls. contact us | ||||||
1. Are you a manufacture or trading company?
We are a professional manufacture over 18 years, and our factory based in Shanghai. Warmly welcome to visit us.
2. Does your company accept OEM production?
Sure, our company policy is Order Oriented Customization, we could print your brand and produce according to your specification, if the minimum quantity achieved.
3. What about the lead time for mass production?
Our production capacity is sufficient, normally 10-20 days we can deliver your order, only if quantity is big, we’ll offer you specified delivery time.
4. What’s your minimum quantity?
Usually 100m, however cable is heavy product, the freight really costs, we suggest a reasonable quantity.
5. How can I get a sample to check your quality?
Samples are free for customer; you only need to pay the courier charge.
6. How does you company control the quality?
Our company has a team of experienced QC, who do in-line and finished goods inspection, we even got certificate of ISO9001. Our products have been certified by UL, CE, SGS, RoHS, CCC etc.
