7 Pairs Twisted FEP Insulated Shielded Silicone Cable For Elctronic Instruments

Place of Origin China
Brand Name Dingzun
Certification UL,CE,ISO9001
Model Number 09-44
Product Details
Product Name::
Multi-core Cable
Conductor Material::
Tinned Copper
Insulation Material::
FEP
Rated Temperature::
-60c~+180c
Rated Voltage::
450/750v
Sheath:
Silicone Rubber
Cores:
14
Type:
Medium Voltage
Shield:
Tinned Copper
Application:
Sensors,anti-interference Instruments
High Light:

14 Cores Shielded Sensor Cable

,

7 Pairs Sensor Cable

,

Multi Pairs Control Cable

Product Description

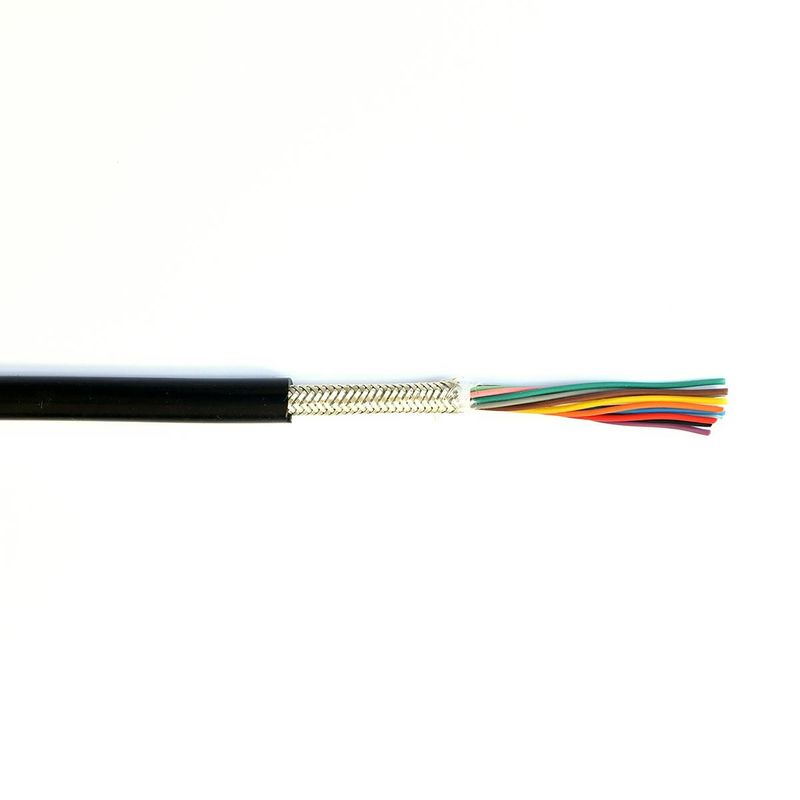

Dingzun Custom YGZPF 7pairs twisted FEP insulated Shielded Silicone cable for elctronic instruments

Normally, sensors cable and anti-interference instrument needs multi cores for its measuring and data exchange funtion, this is a 14 cores custom cable which requires high demand for signal and data communication. Dingzun team separate the core into 7 pais which satisfy multi functions requirement, and aluminuim foil tape seperation even reduce the interference as the first step, and the tinned copper wire braiding screen mainly isolated the environment affection .

Core Number conductor Wrapping tinned copper braid

Jacket Thickness

(mm)

Single core∽ multi core all 600V 200C products certified such as UL1330 and UL 3135 available available average thickness 30mils,the thinnest point 24mils
Remarks: able to produce according to customer’s requirement
