Dingzun Cable 4 Cores PTFE Shielded High Temperature Cable 250C

Brand Name:	Dingzun
Model Number:	Y-37
MOQ:	500m
Price:	USD 0.25-2.5
Packaging Details:	ROLL
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

TYPE:

High Temp Wire

Conductor:

Nickel Copper

Stranded:

Stranded

Construction:

4*0.14MM2

Insulation:

Shield:

Armor:

NICKEL COPPER

SHEATH:

Temperature:

Voltage:

300/500V

Application:

SENSOR CABLE

CORES:

Supply Ability:

2000M/DAY

Highlight:

PTFE Shielded High Temperature Cable

Stranded Multi Core Shielded Cable

Nickel Plated Copper High Temperature Cable

Product Description

Description: 4 core PTFE insulated and sheathed, armored Cable

Conductor: nickel plated copper
Construction:7/0.16mm
Section Area: 0.14mm2

Cores: 4
Insulation: PTFE
Insulation Thickness:0.25mm
Wire Dia: 0.98mm
Insulation Colors: white/white/red/red
Armor: nickel copper braided 0.12mm
Coverage more than 85%
Jacket: PTFE
Jacket thickness: 0.35mm

O.D.: 3.60±0.15mm
Jacket color: White
Operating temp: -160℃--+260℃, for short time: +310℃
Operating Voltage: 600V

This is a ptfe multi core control cable. Comparing to normal PVC Control CABLE, client asked for ptfe insulation, and PTFE jacket, as he need these cables using at a quite high temperature condition. As we know, PTFE can stand 260-degree high temperature.

So, the conductor cannot be normal tinned copper, as under such high temperature, conductor is easily oxidized, we used nickel plated copper, which can protect the conductor from high temperature working environment.

Finally, client required Armor, we need use nickel copper as well for braiding, which can protect the cable, and shielding the environmental interferences, the strict Overall diameter needs very precise production , Dingzun Cable which has been engaging in manufacturing high temperature wire and cable over 18 years, can handle such PTFE multi core cables.

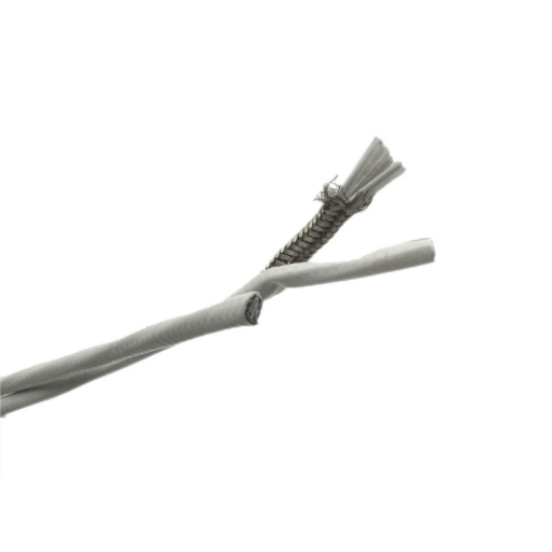

Dingzun Cable 4 Cores PTFE Shielded High Temperature Cable 250C 0

Dingzun Cable 4 Cores PTFE Shielded High Temperature Cable 250C 1

Dingzun Cable 4 Cores PTFE Shielded High Temperature Cable 250C 2
