Dingzun Cable 8 Pairs Thermocouple Type J Shielded Sensor Cable for instrumentaion
Dingzun Cable 8 Pairs Thermocouple Type J Shielded Sensor Cable for instrumentaion
Product Summary
Dingzun Cable 8 Pairs Thermocouple Type J Shielded Sensor Cable Professional-grade 8-pair thermocouple cable designed for instrumentation and automation equipment applications. Product Specifications Number of Pairs 8 Number of Cores 16 Conductor Size AWG24, 0.20mm² (0.51mm) Conductor Material IRON(...
Basic Properties
Brand Name
Dingzun
Trading Properties
MOQ
500m
unit price
USD 0.25-2.5
Packing
ROLL
period for dispatch
15DAYS
payment method
T/T,L/C
Supply Capacity
2000M/DAY
Product Details
Highlight:
Thermocouple Type J Sensor Cable
,8 Pairs Thermocouple Instrument Cable
,multi pair instrument cable china supplier
TYPE:
Thermocouple Cable Type J
Conductor:
NiCr/NiAl
Stranded:
Stranded
Construction:
24awg 8pairs
Insulation:
Pvc
Shield ICAM:
AL FOIL For Each Pair
Armor:
NO
SHEATH:
Pvc
Temperature:
105C
Voltage:
300/500V
Application:
Temperature Measurement
Product Description
Dingzun Cable 8 Pairs Thermocouple Type J Shielded Sensor Cable
Professional-grade 8-pair thermocouple cable designed for instrumentation and automation equipment applications.
Product Specifications
| Number of Pairs | 8 |
| Number of Cores | 16 |
| Conductor Size | AWG24, 0.20mm² (0.51mm) |
| Conductor Material | IRON(+) & CONSTANTAN(-) |
| Type | J Type Extension Grade |
| Insulation | HR PVC |
| Screen | ATC Drain Wire |
| Sheath | HRPVC |
| Core Color | RED(-), WHITE(+) |
| Sheath Color | Black |
| Color Code | ANSI MC 96.1 |
| Rated Temperature | 105℃ |
Construction Features

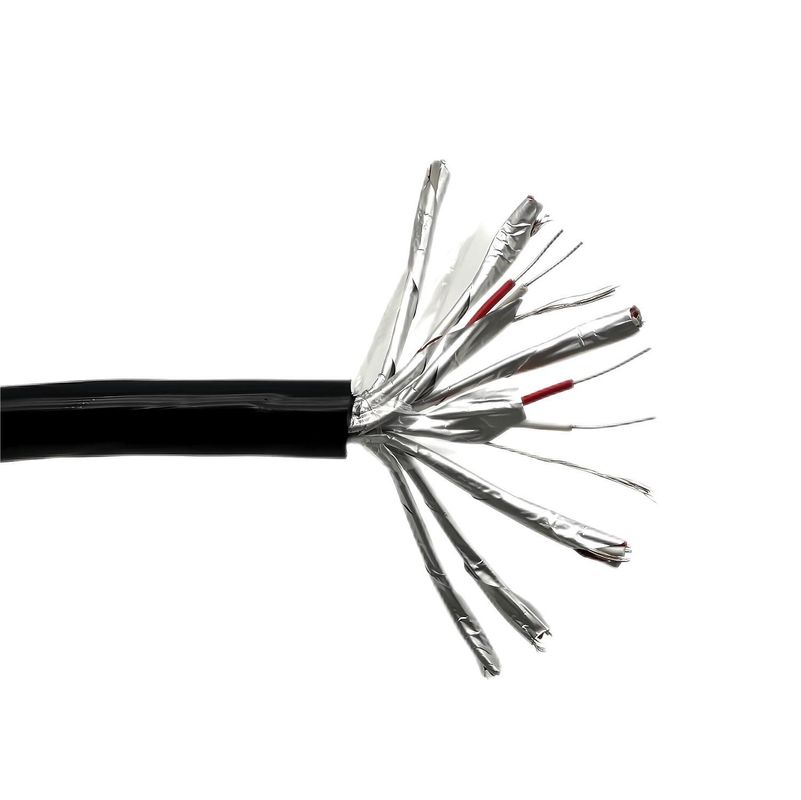

This multi-pair instrument cable features individual pair shielding with drain wire and aluminum foil wrapping for optimal shielding effectiveness. After gathering all 8 pairs, a transparent mylar tape is used for binding before final cabling assembly.
Thermocouple Cable Technical Details
General Specifications
| Conductor Type | Solid / Stranded |
| Applicable Types | KX, EX, JX, TX, NX, KCA, KCB, RCA, RCB, SCA, RCB, BC |
| Insulation Materials | PVC, PE, XLPE or LSZH Thermoplastic Material |
| Individual Screen | 24 μm Aluminium / PETP Tape over Solid Tinned Copper Drain Wire, 0.6 mm |
| Wrapping | At Least 1 Layer of Plastic Tape |
| Overall Screen | 24 μm Aluminium / PETP Tape over 7-Stranded Tinned Copper Drain Wire, 0.5 mm² |
| Outer Sheath | PVC or LSZH Thermoplastic Material |
| Color Code | According to IEC 60584-3 |
| Flame Retardancy | IEC 60332-1 |
| Section Area | 0.50sqmm, 0.80sqmm, 1.0sqmm, 1.3sqmm and 1.5sqmm |
| Temperature Range | -30°C to 70°C (Operation), -5°C to 50°C (Installation) |
Important Note: Color coding follows ANSI standard. For constantan conductors, careful attention is required to avoid confusion with Type E and Type T cables, as all three types use constantan as negative conductor but feature different material compositions.
Manufacturing Excellence
Dingzun Cable brings 18 years of manufacturing expertise, ensuring reliable product quality and efficient delivery for industrial applications worldwide.
