Dingzun Thermocouple Type K Instrument Cable 8 Pairs

Brand Name:	Dingzun
Model Number:	Y-43
MOQ:	500m
Price:	USD 0.25-2.5
Packaging Details:	ROLL
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

TYPE:

Thermocouple

Conductor:

NiCr/NiAl

Stranded:

Stranded

Construction:

24awg 8pairs

Insulation:

Shield:

AL FOIL

Armor:

SHEATH:

Temperature:

Voltage:

300/500V

Application:

Temperature Measurement

CORES:

Supply Ability:

2000M/DAY

Highlight:

Thermocouple Type K Instrument Cable

multi pair thermocouple cable

PVC Multi Pair Instrument Cable

Product Description

No. of Pair: 8
No. of Core: 16

Conductor Size: AWG24, 0.20mm2 (0.51mm)
Solid Conductor Material: KRUMEL(+) & ALUMEL(-)
Type: K type Extension Grade
Insulation: HR PVC
Screen: ATC drain wire
Sheath: HRPVC

Core Color: RED (-), YELLOW (+)
Sheath Color: YELLOW
Color Code: ANSIMC 96.1
Rated Temperature: 105℃

This is a custom multi pair instrument cable, but also a thermocouple type K cable. Client asking for this complicated cable, and we Dingzun – the muti pair cable maker can smoothly finish this complicated task. As Type J is the most popular thermocouple cable, we used 2 different alloy as the conductor, since the difference of electricity potential, client can accurately measure the temperature from the sensors.
Considering the operating temperature is normal environment, we use PVC as the insulation and outer sheath, in order to save the cost, we always supply clients assured quality and high cost performance.

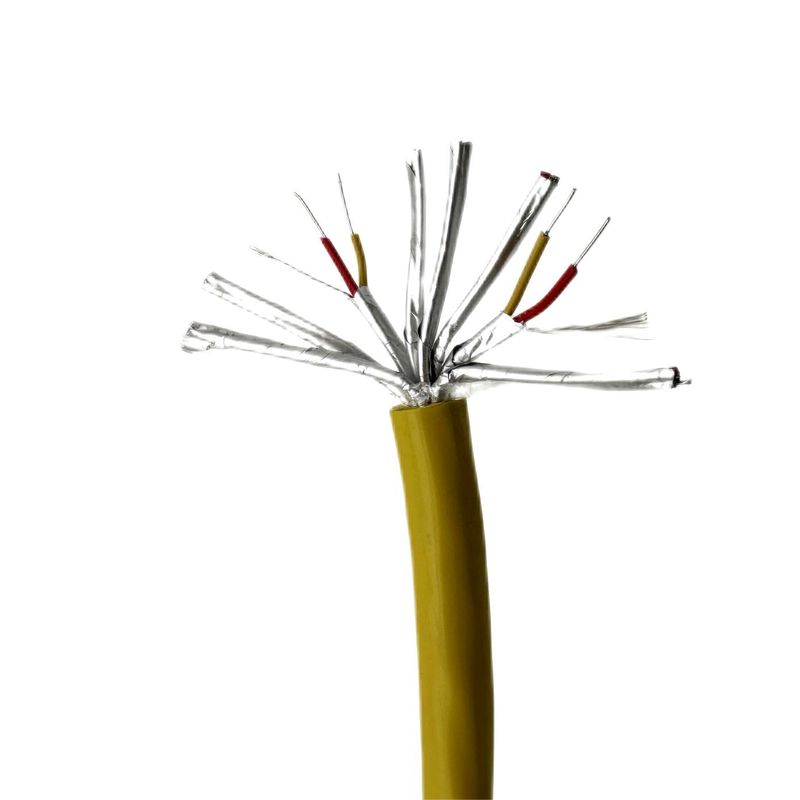

Dingzun Thermocouple Type K Instrument Cable 8 Pairs 0

Dingzun Thermocouple Type K Instrument Cable 8 Pairs 1

Dingzun Thermocouple Type K Instrument Cable 8 Pairs 2
