4 Core Multi Core Ul4600 / Ul4622 Silicone Control Cable

4 Core Multi Core Ul4600 / Ul4622 Silicone Control Cable

Product Summary

Z-3 PRODUCT NAME: 4 CORE MULTICORE UL4600/UL4622 SILICONE CONTROL CABLE DESCRIPTION: Conductor: tinned copper Construction: 1.5MM2 (30/0.25) Cores: 4 Insulation: Silicone Jacket: Silicone Rubber Overall Dia.: 9.5mm Rated temperature: -60℃--+200℃ Rated Voltage:600V/300V Certificate: UL4600/UL4622 ...

Basic Properties

Brand Name

Dingzun

Trading Properties

MOQ

300m

unit price

USD 0.25-2.5

Packing

ROLL

period for dispatch

15DAYS

payment method

T/T, L/C

Supply Capacity

2000M/DAY

Shielded Silicone Rubber Control Cable

4 Core Shielded Silicone Cable

Stranded Multi Core Control Cable

Conductor: Tinned Copper

Stranded: Stranded

Construction: 4*1.5mm2 30/0.25

Insulation: SILICONE

Shield: No

Armor: No

SHEATH: Silicone

Temperature: 200C

Voltage: 600V

Application: HIGH TEMPERATURE MOTOR LEAD WIRE

Product Description

Z-3
PRODUCT NAME: 4 CORE MULTICORE UL4600/UL4622 SILICONE CONTROL CABLE

DESCRIPTION:
Conductor: tinned copper
Construction: 1.5MM2 (30/0.25)
Cores: 4
Insulation: Silicone
Jacket: Silicone Rubber
Overall Dia.: 9.5mm
Rated temperature: -60℃--+200℃
Rated Voltage:600V/300V
Certificate: UL4600/UL4622

DETAILS:

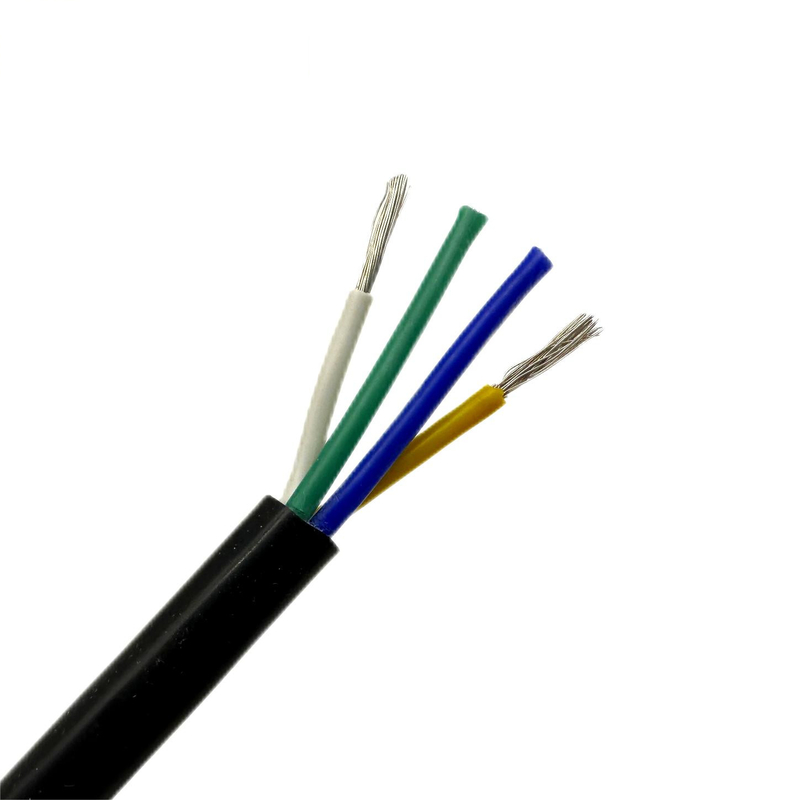

4 core multicore UL4600/4622 SILICONE CONTROL CABLE as our picture, we have 4 colors for insulation they are white, green, yellow and blue. Silicone multi core cable is normally used for high temperature motor class H/F lead cable. As it needs very flexible and high temperature resistant.
We noted in actual industrial installation, factories always face the situation as high temperature working condition, narrow spaces etc. so Dingzun factory can supply easy installation ( the bending radius is very small), and flexible, heat resistance cable made of silicone rubber.

Multicore control cable, Dingzun has certificate as UL4600/4622, which covers 600V or 300V most usual usage. Dingzun cable has a team of experienced workers and technicians, annually produce thousands km multicore silicone control cable.
