30KV Shielded Silicone High Voltage Cable UL3239

30KV Shielded Silicone High Voltage Cable UL3239

Product Summary

Z-4 PRODUCT NAME: 30KV SHIELDED SILICONE HIGH VOLTAGE CABLE UL3239 DESCRIPTION: Conductor: tinned copper Construction: 4MM2 (56/0.30) Cores: 1 Insulation: Silicone Shield: tinned copper wire braid Jacket: Silicone Rubber Overall Dia.: 13mm Rated temperature: -60℃--+200℃ Rated Voltage:30KV Certificat...

Basic Properties

Brand Name

Dingzun

Trading Properties

MOQ

300m

unit price

USD 0.25-2.5

Packing

ROLL

period for dispatch

15DAYS

payment method

T/T, L/C

Supply Capacity

2000M/DAY

Shielded Silicone High Voltage Cable

X - ray high voltage cable

UL3239 Shielded Silicone Cable

Conductor: Tinned Copper

Stranded: Stranded

Construction: 1*4mm2 56/0.30

Insulation: SILICONE

Shield: Tinned Copper Braid

Armor: No

SHEATH: Silicone

Temperature: 200C

Voltage: 30KV

Application: SHIELDED SILICONE HIGH VOLTAGE CABLE

Product Description

Z-4

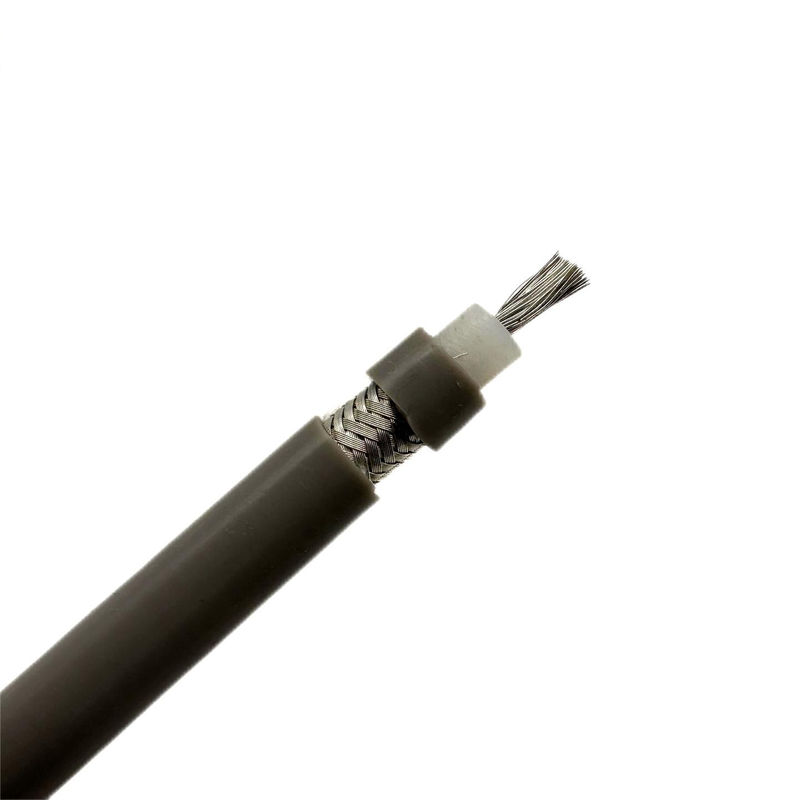

PRODUCT NAME: 30KV SHIELDED SILICONE HIGH VOLTAGE CABLE UL3239

DESCRIPTION:
Conductor: tinned copper
Construction: 4MM2 (56/0.30)
Cores: 1
Insulation: Silicone
Shield: tinned copper wire braid
Jacket: Silicone Rubber
Overall Dia.: 13mm
Rated temperature: -60℃--+200℃
Rated Voltage:30KV
Certificate: UL3239

DETAILS:
30KV SHIELDED SILICONE HIGH VOLTAGE CABLE UL3239 is a normal High voltage cable, but with shield, which means the client has higher requirement in working condition.

UL3239 is a well-known high voltage cable, and we add the tinned copper wire braided as shield, to protect the soft silicone from cutting and enhance the tear resistance. And outer jacket we still use the silicone rubber material to keep the flexibility.

Dingzun has 18 years of manufacturing experience, as the high voltage cable need very strict quality guarantee, Dingzun always give clients full confidence and quality control. Our clients can use our high Voltage products carefree.
