100% Nickel Conductor 400 Degree Glass Fiber Braided Cable Gn400
  • 100% Nickel Conductor 400 Degree Glass Fiber Braided Cable Gn400
  • 100% Nickel Conductor 400 Degree Glass Fiber Braided Cable Gn400
  • 100% Nickel Conductor 400 Degree Glass Fiber Braided Cable Gn400
  • 100% Nickel Conductor 400 Degree Glass Fiber Braided Cable Gn400
  • 100% Nickel Conductor 400 Degree Glass Fiber Braided Cable Gn400
  • 100% Nickel Conductor 400 Degree Glass Fiber Braided Cable Gn400

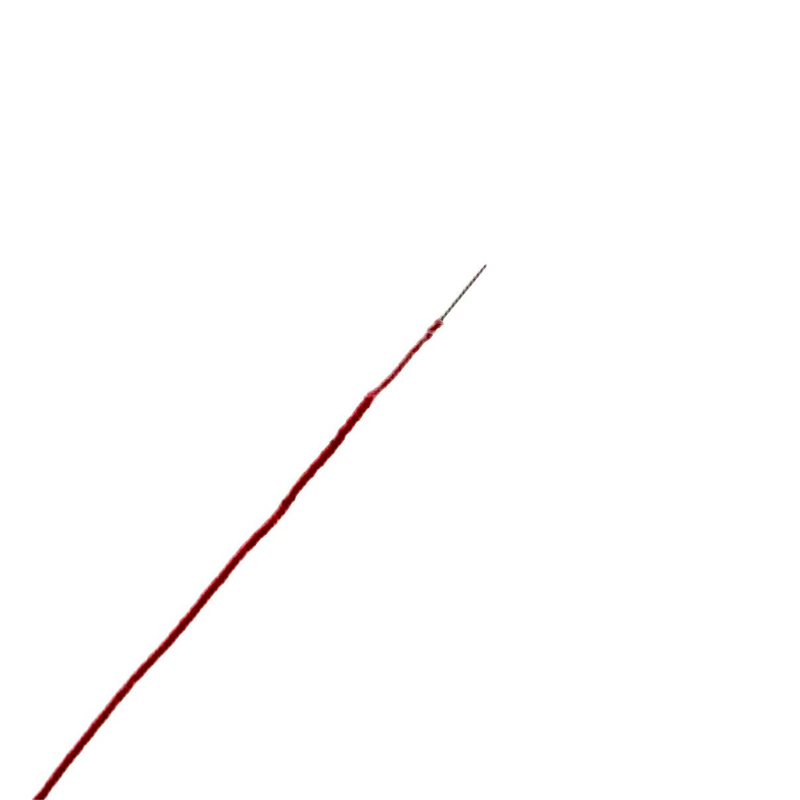

100% Nickel Conductor 400 Degree Glass Fiber Braided Cable Gn400

Place of Origin China
Brand Name Dingzun
Certification ul
Model Number z-06
Product Details
Conductor:
PURE NICKEL
Stranded:
Single
Construction:
1*0.6
Insulation:
Glassfiber
Shield:
No
Armor:
No
SHEATH:
Silicone
Temperature:
1000C
Voltage:
300V
Application:
Extreme High Temp Appliances
High Light:

Gn400 Braided Cable

,

400 Degree Glass Fiber Braided Cable

,

Nickel Conductor Glass Fiber Cable

Product Description

Z-6
PRODUCT NAME: 100% NICKEL CONDUCTOR 400DEGREE GLASS FIBER BRAIDED GN400


DESCRIPTION:
Conductor: 100% nickel
Construction: 1/0.6
Cores: 1
Insulation: glass fiber
Overall Dia.: 1.3mm
Rated temperature: 1000℃
Rated Voltage:500V
Certificate: gn400
Type: HTGG
DETAILS:

100% NICKEL CONDUCTOR 400DEGREE GLASS FIBER BRAIDED GN400 HTGG our hot sell product, it has been widely used in high temperature working condition area such as petrochemical, glass factory, steel plant etc.

Dingzun use the 100% nickel as conductor in order to guarantee the safe electricity circuit under extreme high temperature, as well know the copper is easy to oxidize under such high temperature. Insulation is glass fiber braided , and outer sheath is silica, which can
Bear 1000 degree .
