Fire Resistance Cable
>
|
| Place of Origin | China |
| Brand Name | Dingzun |
| Certification | UL,CE,ISO9001 |
| Model Number | 06-07 |
Technical Parameters
Type: AWM5335
Conductor:nickel plated copper or nickel
Rated Temperature:-60℃∽+450℃
Rated Voltage:600V
Features:

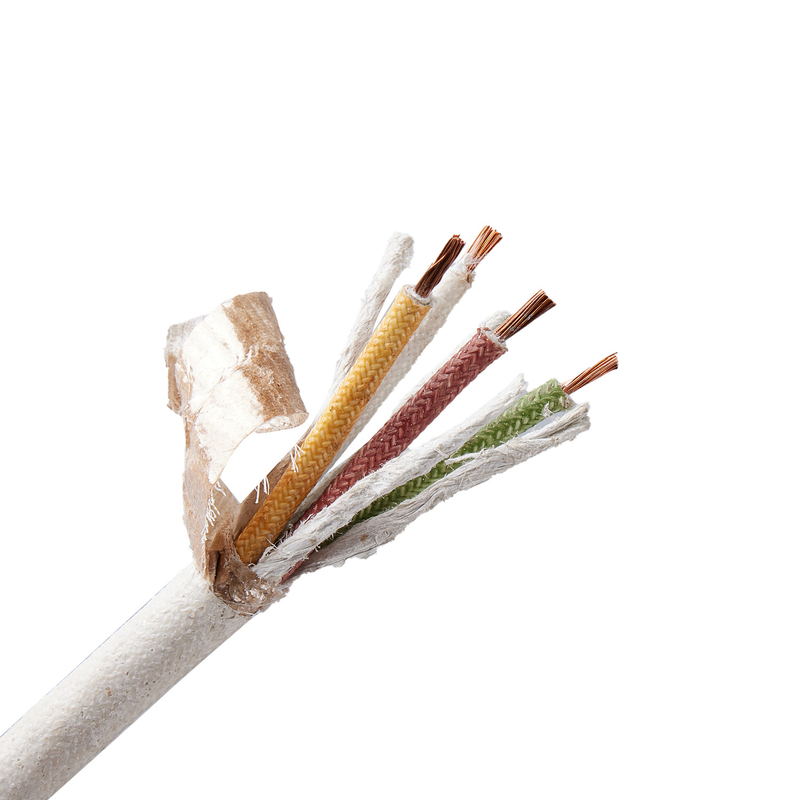

Multi-layer fiberglass or mica tape insulation wrapping, mica tape has excellent high temperature resistance and combustion resistance, good insulation performance. Inorganic fiber, non-combustible; Good chemical resistance; Small water absorption; High mechanical strength; Good insulation; Strong heat resistance. At temperatures above 200°C during the first commissioning, the impregnated varnish may degrade and leave only pure fiberglass as insulation, which can be observed... Free of harmful substances and compliant with ROHS standards
| AWG |
Conductor No./Dia. (mm) |
Avg. Insulation Thickness (mm) |
Overall Dia. (mm) |
Max. Resistance 20℃ (≤Ω/km) |
| 20 | 7/0.30 | 0.71 | 2.3±0.3 | 37.4 |
| 18 | 11/0.30 | 0.71 | 2.6±0.3 | 23.5 |
| 17 | 14/0.30 | 0.71 | 2.7±0.3 | 18.5 |
| 16 | 18/0.30 | 0.71 | 2.9±0.3 | 14.6 |
| 15 | 21/0.30 | 0.71 | 3.0±0.3 | 11.5 |
| 14 | 28/0.30 | 0.71 | 3.3±0.3 | 9.15 |
| 13 | 35/0.30 | 0.71 | 3.5±0.3 | 7.26 |
| 12 | 49/0.30 | 0.71 | 4.1±0.3 | 5.75 |
| 11 | 56/0.30 | 0.94 | 4.7±0.5 | 4.48 |
| 10 | 77/0.30 | 0.94 | 5.3±0.5 | 3.55 |
| 8 | 112/0.30 | 0.94 | 6.1±0.5 | 2.23 |
| 7 | 140/0.30 | 0.94 | 6.4±0.5 | 1.76 |
| 6 | 190/0.30 | 0.94 | 7.4±0.5 | 1.41 |
| 5 | 228/0.30 | 0.94 | 7.9±0.5 | 1.11 |
| 4 | 304/0.30 | 0.94 | 8.9±0.5 | 0.882 |
| 3 | 380/0.30 | 1.20 | 10.2±1 | 0.700 |
| 2 | 494/0.30 | 1.20 | 11.2±1 | 0.555 |
| 1 | 342/0.40 | 1.20 | 12.2±1 | 0.440 |
| 1/0 | 396/0.40 | 1.20 | 13.0±1 | 0.346 |
| 2/0 | 532/0.40 | 1.20 | 14.6±1 | 0.276 |
| 3/0 | 684/0.40 | 1.20 | 16.3±1 | 0.219 |
| 4/0 | 836/0.40 | 1.20 | 17.7±1 | 0.174 |
Shanghai Dingzun Special Electric Wire and Cable Co., Ltd. as a high-tech enterprise was established in 2005, which engaged in special wire and cable research, development, design, manufacturing.
Shanghai Dingzun Special Electric Wire and Cable Co., Ltd. has strong technical force, existing staff 132 people, including senior titles of professional and technical personnel 26 people, with our own invention patent. We understand the technical standards and production standards of wire and cable of various countries in the world, can design and produce 6 categories, more than 800 types and specifications of wire and cable. The annual output reaches 70 million meters. The main products are high temperature resistant wire and cable, high voltage resistant wire and cable, shielded cable, coaxial cable, thermocouple compensation wire and other special wire and cable. Products are widely used in aerospace, electronic appliances, instrumentation, metallurgy and chemical industries, especially for high temperature, low temperature, strong acid, strong alkali, high oil, strong radiation and other harsh working environment.
Currently our company has two production workshops, nearly 5000 square meters of production space, equipped with 18 production lines of various types, 156 other auxiliary production equipment, 48 testing equipment, including 36 inline testing equipment. Complete testing equipment guarantee premium product quality, meanwhile strong production capacity ensures timely order delivery.
The company has passed ISO9001:2015 international quality management system certification, our products have passed CCC compulsory certification in China, UL certification in the United States, CE certification in the European Union, and our products are sold to the United States, Europe, Japan and other countries and regions. Our system certification, product safety certification and global customers praise prove that our products are trustworthy. In addition, the wire and cable we produce also passed RoHS testing, in line with the environmental requirements of the European Union, we protect our common green home together with you.
