Railway Control Cable Multi Core Multi Pair Composite Cable

Z-21

Description: RAILWAY CONTROL CABLE MULTI CORE MULTI PAIR COMPOSITE CABLE

Conductor: tinned copper
Construction: 4x4 cores
Insulation: FEP
Shield: tinned copper wire braided
Jacket: Silicone
Rated temperature: -20℃---+200℃
Rated Voltage: 600V
Type: control cable

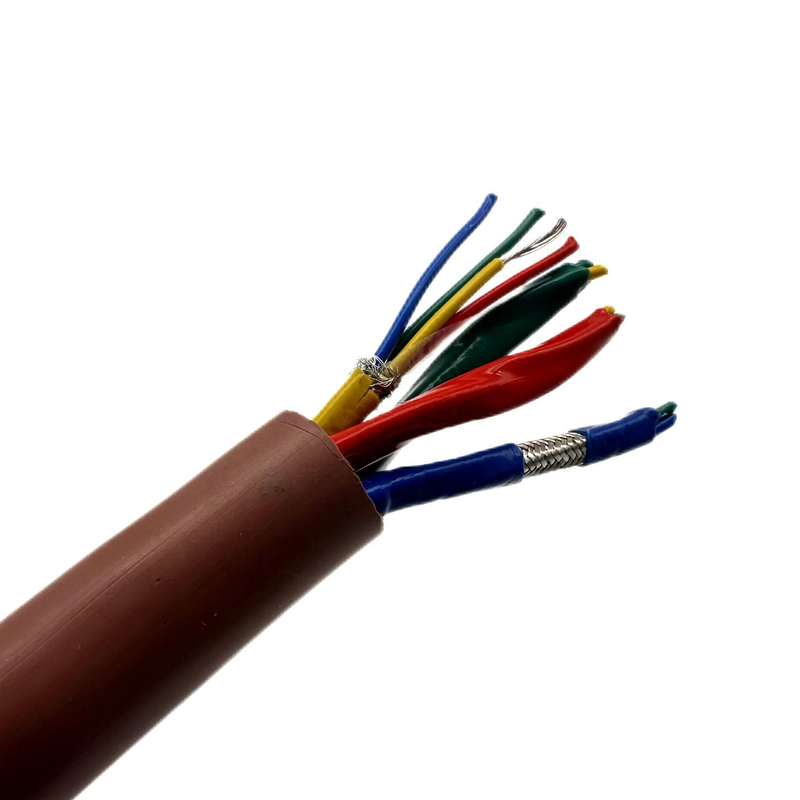

RAILWAY CONTROL CABLE MULTI CORE MULTI PAIR COMPOSITE CABLE is a custom cable. The client requires the whole cable in 16 cores, and every 4 cores as one group, every group with shield composed of tinned copper wire braided. Fep insulation and silicone jacket. Which can decrease the diameter but still keep the cable flexibility as well.
As a control cable on railway, the high temperature working condition has to be taken into account, we used fep and silicone material as insulation, which can bear till 200 degrees.
The tinned copper shield still keeps the whole cable very soft, easy to install.
