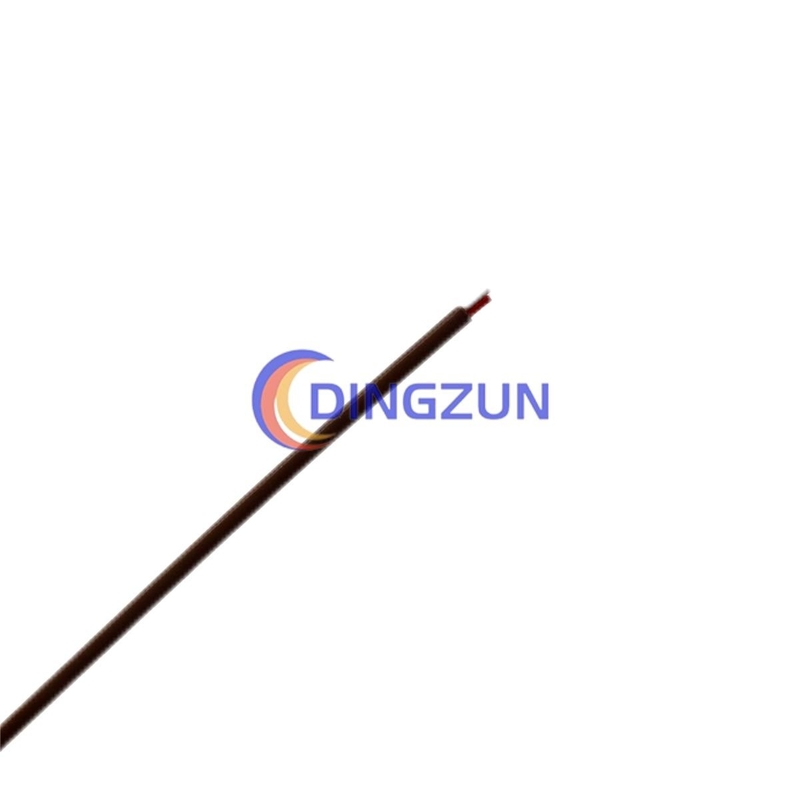

Type T PVC Insulated Thermocouple Extension Wire
  • Type T PVC Insulated Thermocouple Extension Wire
  • Type T PVC Insulated Thermocouple Extension Wire
  • Type T PVC Insulated Thermocouple Extension Wire
  • Type T PVC Insulated Thermocouple Extension Wire

Type T PVC Insulated Thermocouple Extension Wire

Place of Origin China
Brand Name Dingzun
Certification UL,CE,ISO9001
Model Number Z-54
Product Details
Conductor Material:
Cu/CuNi
Stranded:
Single
Construction:
2/1/0.32
Insulation:
PVC
Shield:
No
Armor:
No
SHEATH:
PVC
Temperature:
105c
Voltage:
300V
Application:
Temperature Measuring
High Light:

PVC Insulated Thermocouple Extension Wire

,

Type T Thermocouple Extension Wire

,

Single Stranded Thermocouple Compensation Cable

Product Description

Z-54
type T PVC INSULATED thermocouple extension wire

Conductor(+): Cu
Conductor(-): CuNi
Construction: 2*1/0.32
Insulation: PVC
Insulation color: JIS Red and White
Jacket: PVC
Jacket color: brown
O.D. 1.25*21mm
Type: thermocouple extension wire


type T PVC INSULATED thermocouple extension wire is a very common thermocouple extension wire.
PVC insulation and jacket means the working ambient is not so high temperature, and for normal use. In our production line the insulation and jacket can be changed according to the actual application. We have fep, glassfiber, other materials.
T-type thermocouple, also known as copper-copper thermocouple (copper/nickel copper thermocouple, index T, measuring range -200~+350℃), is also one of the best low temperature measurement of clean metal thermocouple. Its positive electrode (TP) is pure copper, and its negative electrode (TN) is copper-nickel alloy, which is called copper copper. It is common with nichome-copper copper EN, and not common with iron-copper copper copper JN, although they are both called copper. The temperature range of copper-copper nickel thermocouple is -200~350℃.

Type T PVC Insulated Thermocouple Extension Wire 0

Type T PVC Insulated Thermocouple Extension Wire 1
