Heating Cable

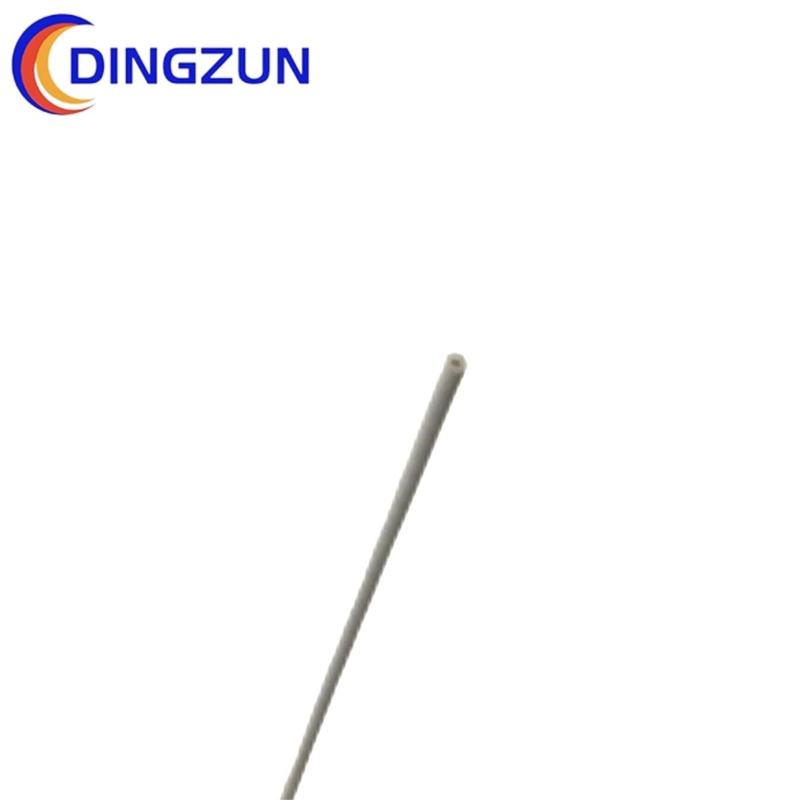

Helix Spiral Heating Cable Silicone Insulated

All Category

Thermocouple Compensation Cable

Helix Spiral Heating Cable Silicone Insulated

Brand Name:	Dingzun
Model Number:	Z-56
MOQ:	500m
Price:	Negotiable
Packaging Details:	250M/ROLL PACKED IN CARTON
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL,CE,ISO9001

Conductor Material::

Ni/Cr

Stranded:

Stranded

Construction:

60Ω/m

Insulation:

Silcione

Shield:

Armor:

Temperature:

Voltage:

Application:

Floor Heating

Supply Ability:

3000M/DAY

Highlight:

Helix Spiral Heating Cable

Helix Floor Heating Cable

Silicone Insulated Heating Wire

Product Description

Z-56

Description: HELIX SPRIRAL HEATING CABLE SILICONE INSULATED

Middle: glass fiber

Conductor: Ni/Cr alloy

Insulation: silicone Rubber

Rated temperature: -60℃--+200℃

Rated Voltage: 240V

Resistance: 45ohm/m, 60ohm/m 100ohm/m

Type:heating wire

Helix spiral silicone insulated heating wire is a type of heating wire that is designed to provide uniform and consistent heat over a large surface area. It consists of a helix-shaped resistance wire that is wrapped in a silicone rubber insulation material, which provides excellent thermal stability and electrical insulation.

The helix shape of the wire allows it to be easily wrapped around pipes, tanks, and other cylindrical or curved surfaces, making it ideal for a variety of heating applications. The silicone insulation material is highly resistant to heat, moisture, and chemicals, which makes it suitable for use in harsh industrial and commercial environments.

Helix spiral silicone insulated heating wire is commonly used for applications such as freeze protection, process heating, and temperature maintenance. It is also used in the food and beverage, pharmaceutical, and chemical industries, where maintaining consistent temperatures is critical to product quality and safety.

Overall, helix spiral silicone insulated heating wire is a reliable and efficient solution for providing uniform and consistent heat over a large surface area. Its flexibility and durability make it a popular choice for a wide range of heating applications.

Helix Spiral Heating Cable Silicone Insulated 0
