High Temperature Cable For Motor Lead Cable
  • High Temperature Cable For Motor Lead Cable
  • High Temperature Cable For Motor Lead Cable
  • High Temperature Cable For Motor Lead Cable
  • High Temperature Cable For Motor Lead Cable

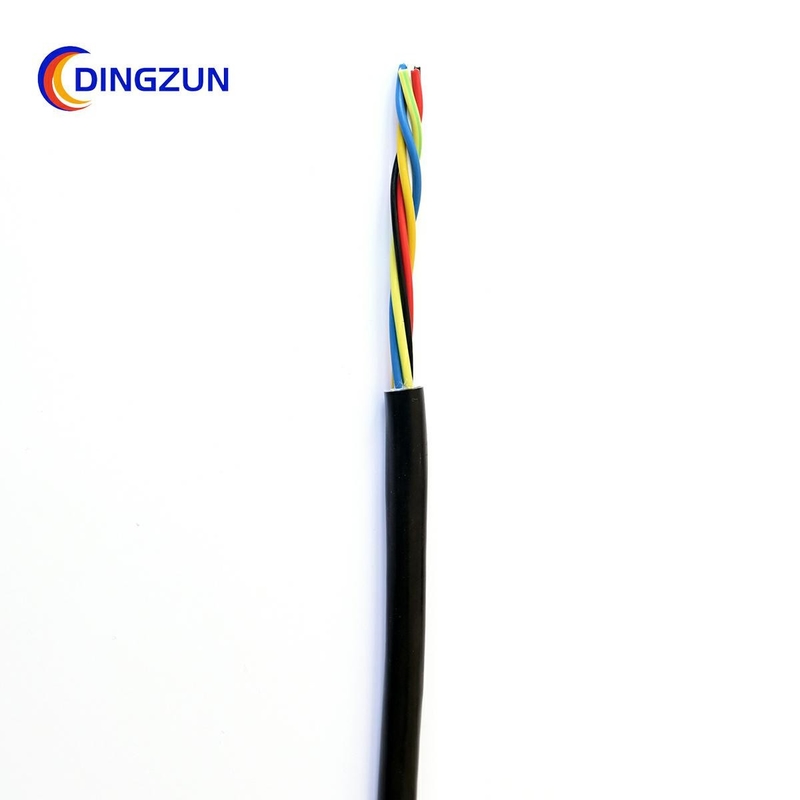

High Temperature Cable For Motor Lead Cable

High Temperature Cable For Motor Lead Cable

Place of Origin China
Brand Name Dingzun
Certification CE,UL,ISO9001
Model Number 09-25
Product Details
Product Name:
Motor Power Cable
Conductor:
Tinned Copper
Construction:
4*0.75mm² +2*0.2mm²
Cores:
6
Insulation:
FEP Or PFA
Sheath:
Silicone Rubber
Rating Temperature:
-60℃~+200℃
Rating Voltage:
450/750V
Highlight:

FEP Motor Lead Cable

,

6 Core Motor Lead Cable

,

PFA High Temperature Motor Lead Cable

Product Description

FEP / PFA Insulaton Motor Lead Cable For High Temperature Motors

WG
AWG
Conductor
(mm)
Avg.Insulation Thickness(mm)
Jacket Thickness(mm)
OD
(mm)
2*26


26


7/0.16


0.76


1.14
6.3±0.2
3*26
6.6±0.2
4*26
7.1±0.2
5*26
7.7±0.2
2*24


24


7/0.20


0.76


1.14
6.5±0.2
3*24
6.9±0.2
4*24
7.4±0.2
5*24
8.0±0.2
2*22


22


7/0.254


0.76


1.14
6.9±0.2
3*22
7.2±0.2
4*22
7.8±0.2
5*22
8.5±0.3
2*20


20


10/0.254


0.76


1.14
7.2±0.2
3*20
7.6±0.2
4*20
8.2±0.3
5*20
8.9±0.3
2*18


18


16/0.254


0.76


1.14
7.7±0.3
3*18
8.1±0.3
4*18
8.8±0.5
5*18
9.5±0.5
2*16


16


26/0.254


0.76


1.14
8.3±0.3
3*16
8.8±0.3
4*16
9.6±0.5
5*16
10.4±0.5
2*14


14


41/0.254


0.76


1.14
9.1±0.5
3*14
9.6±0.5
4*14
10.5±0.5
5*14
11.5±0.5
Remarks: able to produce according to customer’s requirement

Introduction: tinned copper and fep insulation guarantee the good performence of heat resistance, and silicone rubber outer jacket assures cable working smoothly in a high temperature enviroment.

Features: 6 cores cable including the earth yellow/green wire suitable for motors working, silicone rubber jacket features very flexible good for limited space and movable installation possibility perfect design and excellect electrical performances fitting the most industries

High Temperature Cable For Motor Lead Cable 0

High Temperature Cable For Motor Lead Cable 1



High Temperature Cable For Motor Lead Cable 2

Application: widely used for high temperature working condition specially for stepping motors and servo motors as lead wire

High Temperature Cable For Motor Lead Cable 3
