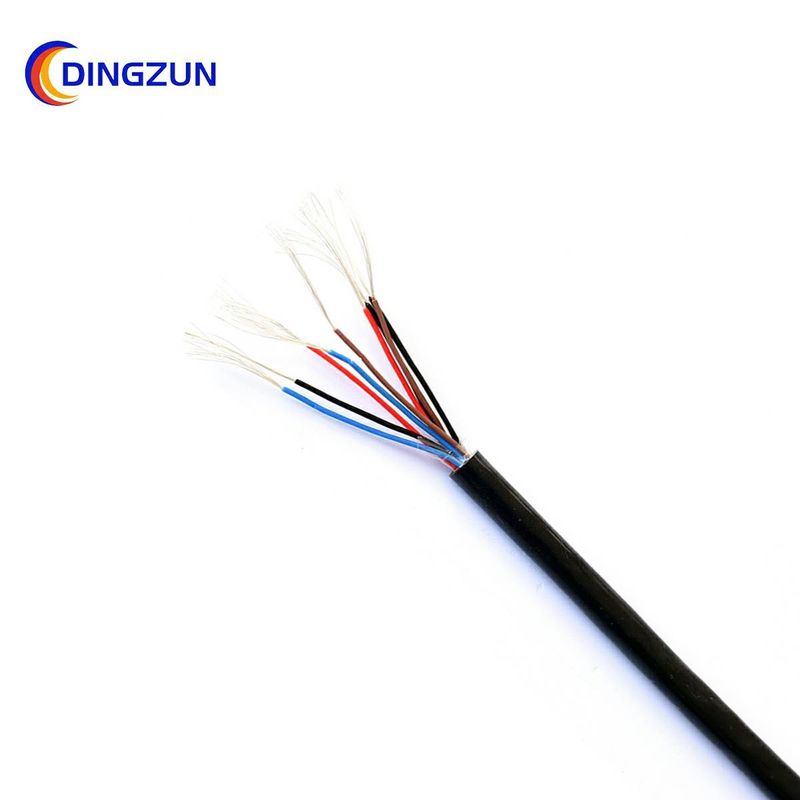

FEP / PFA Insulaton 44 Core Armoured Cable For High Temperature Motors

Place of Origin China
Brand Name Dingzun
Certification UL,CE,ISO9001
Model Number 09-27
Product Details
Product Name::
Multi-core Cable
Conductor Material::
Tinned Copper
Insulation Material::
FeP/PFA/PTFE
Rated Temperature::
-60℃~+200℃
Rated Voltage::
450/750V
Sheath:
Silicone Rubber
Cores:
4
Type:
Medium Voltage
Shield:
N/A
Application:
High Temperature Motor
High Light:

Multicore High Temp Motor Lead Cable

,

Silicone rubber 4 core electrical cable

,

FEP Insulaton 4 Core Cable

Product Description

FEP / PFA Insulaton 44 Core Armoured Cable For High Temperature Motors

Description:

4core cable is always the biggest demand in all industries, we can replace the insualtion from well, in order to meet all kinds of different needs from our clients. fep to pfa till ptfe, we have the models easily to change the the insulation, shielding and jacket and conductor as for example the silicone rubber jacket is very popular at the moment as it provides good perfomance for benidng and easy to install, and heat resistance performance special in electrical motor lead wire. it is a star cable in our motor lead cable line.

Section

(mm2)

Conductor

No./ Dia.

(mm)

Avg.

Insulation Thickness

(mm)

Core Number

ShieldingThickness

(mm)

Jacket Thickness

(mm)

Max. Resistance

20℃(≤Ω/km)

Tinned copper Silver copper
0.035 7/0.08 0.15 ≤37core ≥0.2 ≥0.3 568 525
0.05 7/0.10 0.20 356 330
0.08 7/0.12 0.20 245 227
0.12 7/0.15 0.25 160 146
0.20 7/0.20 0.25 90.4 83.5
0.35 19/0.16 0.25 53.1 49.5
0.50 19/0.18 0.25 36.7 36.0
0.75 19/0.23 0.28 ≤19core ≥0.4 24.6 22.7
1.0 19/0.26 0.28 20.4 19.0
1.5 19/0.32 0.32 12.7 11.7
2.0 19/0.37 0.32 10.0 9.45
2.5 19/0.41 0.40 7.43 6.86
4.0 37/0.37 0.40 ≤7core ≥0.5 4.88 4.51
6.0 37/0.45 0.50 3.30 3.05
Remarks: able to produce according to customer’s requirement



Shanghai Dingzun Special Electric Wire and Cable Co., Ltd. has strong technical force, existing staff 132 people, including senior titles of professional and technical personnel 26 people, with our own invention patent. We understand the technical standards and production standards of wire and cable of various countries in the world, can design and produce 6 categories, more than 800 types and specifications of wire and cable. The annual output reaches 70 million meters. The main products are high temperature resistant wire and cable, high voltage resistant wire and cable, shielded cable, coaxial cable, thermocouple compensation wire and other special wire and cable. Products are widely used in aerospace, electronic appliances, instrumentation, metallurgy and chemical industries, especially for high temperature, low temperature, strong acid, strong alkali, high oil, strong radiation and other harsh working environment.

Currently our company has two production workshops, nearly 5000 square meters of production space, equipped with 18 production lines of various types, 156 other auxiliary production equipment, 48 testing equipment, including 36 inline testing equipment. Complete testing equipment guarantee premium product quality, meanwhile strong production capacity ensures timely order delivery.

The company has passed ISO9001:2015 international quality management system certification, our products have passed CCC compulsory certification in China, UL certification in the United States, CE certification in the European Union, and our products are sold to the United States, Europe, Japan and other countries and regions. Our system certification, product safety certification and global customers praise prove that our products are trustworthy. In addition, the wire and cable we produce also passed RoHS testing, in line with the environmental requirements of the European Union, we protect our common green home together with you.

According to customer requirements, we can also do custom design, production, to meet customer specific requirements of wire and cable, or according to customer construction drawings to make product customization.

Our production base is located in Shanghai, the largest commercial city in China, which can quickly and conveniently reach all countries of the world.

Dingzun Cable connecting the whole world, outputting surging power, transferring the cooperation signal, shares opportunities and future.
