| Place of Origin | China |
| Brand Name | Dingzun |
| Certification | UL,CE,ISO9001 |
| Model Number | 01-01 |
Details:HEAT 205
Af-200,AFP-200 silver plated high temperature line has excellent corrosion resistance, oil resistance, strong acid resistance, strong alkali resistance, strong oxidant, etc. It has excellent fire resistance, aging resistance and long service life.
【 Detailed Description 】

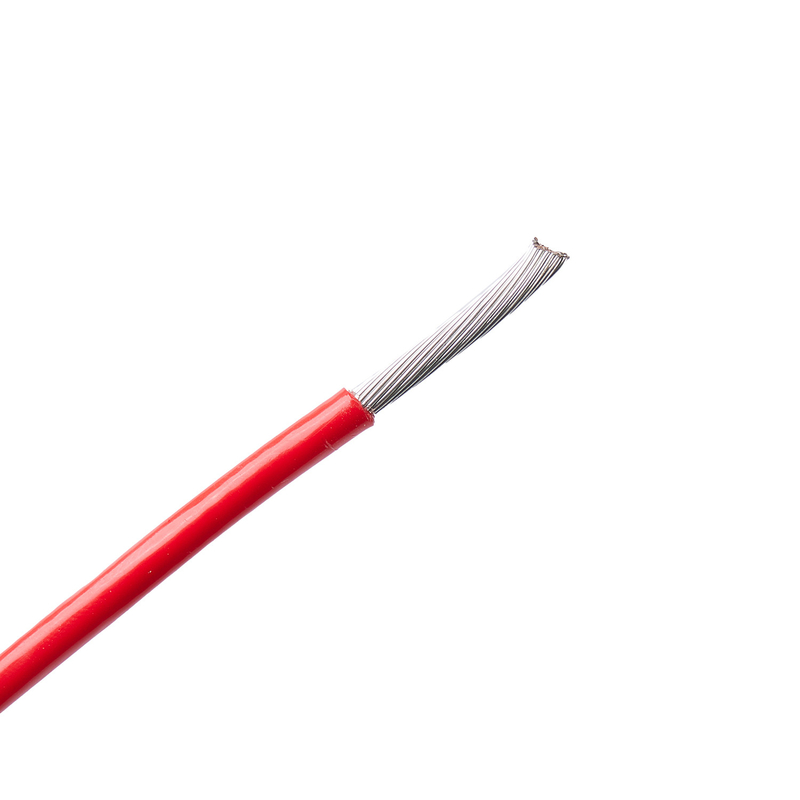

Af-200,AFP-200 silver plated high temperature wire
Af-200,AFP-200 silver plated high temperature line has excellent corrosion resistance, oil resistance, strong acid resistance, strong alkali resistance, strong oxidant, etc. It has excellent electrical insulation performance, high voltage resistance, low high-frequency loss, no moisture absorption, large insulation resistance; It has excellent fire resistance, aging resistance and long service life.
Af-200,AFP-200 high temperature cable execution standard: enterprise standard.
Application: AF-200,AFP-200 silver-plated high temperature wire has the characteristics of high temperature resistance, low temperature resistance, corrosion resistance, mold resistance, aging resistance, high flame retardant, good softness and so on. It is suitable for wiring electronic, electrical equipment and instrument lines under high temperature conditions. In the electronic industry, it can be used for temperature compensation wire, low temperature resistant wire, high temperature heating wire, aging resistant wire and flame retardant wire; In the household electrical appliance industry, it can be used for the internal wiring of air conditioner, microwave oven, electronic disinfection cabinet, electric rice box, electronic thermos bottle, electric heater, electric oven, electric wok, lamps and lanterns.
Conditions of use:
1. Rated voltage: 600V
2. working temperature: : -80 ~ +250℃, short time can withstand 350℃
3. guide body: solid core or stranded silver, nickel plated copper wire or pure nickel wire
4.no edge: PTFE
5. color: red/yellow/blue/white/black/yellow green/brown, etc
|
Section (mm2) |
Conductor No./ Dia (mm) |
Avg.Insulation Thickness (mm) |
Overall Dia. (mm) |
Max. Resistance 20℃(≤Ω/km) |
| 0.014 | 7/0.05 | 0.15 | 0.45 | 1454 |
| 0.03 | 1/0.20 | 0.15 | 0.50 | 590 |
| 0.035 | 7/0.08 | 0.15 | 0.55 | 568 |
| 0.05 | 7/0.10 | 0.15 | 0.60 | 356 |
| 0.07 | 1/0.30 | 0.20 | 0.70 | 260 |
| 0.08 | 7/0.12 | 0.20 | 0.76 | 245 |
| 0.12 | 7/0.15 | 0.25 | 0.95 | 160 |
| 1/0.40 | 0.25 | 0.90 | 146 | |
| 0.2 | 7/0.20 | 0.25 | 1.10 | 90.4 |
| 1/0.50 | 0.25 | 1.00 | 93.8 | |
| 0.35 | 19/0.16 | 0.25 | 1.30 | 53.1 |
| 0.5 | 19/0.18 | 0.25 | 1.40 | 36.7 |
| 0.75 | 19/0.23 | 0.28 | 1.70 | 24.6 |
| 1.0 | 19/0.26 | 0.28 | 1.85 | 20.4 |
| 1.2 | 19/0.28 | 0.30 | 2.00 | 16.6 |
| 1.5 | 19/0.32 | 0.32 | 2.25 | 12.7 |
| 2.0 | 19/0.37 | 0.32 | 2.50 | 10.0 |
| 2.5 | 19/0.41 | 0.40 | 2.85 | 7.43 |
| 4 | 37/0.37 | 0.40 | 3.39 | 4.88 |
| 6 | 37/0.45 | 0.50 | 4.15 | 3.30 |
| 8 | 133/0.28 | 0.50 | 5.20 | 2.30 |
| 10 | 133/0.32 | 0.50 | 5.80 | 1.82 |
| 16 | 133/0.39 | 0.60 | 7.00 | 1.22 |
| Remarks: able to produce according to customer’s requirements | ||||
Shanghai Dingzun Special Electric Wire and Cable Co., Ltd. as a high-tech enterprise was established in 2005, which engaged in special wire and cable research, development, design, manufacturing.
Shanghai Dingzun Special Electric Wire and Cable Co., Ltd. has strong technical force, existing staff 132 people, including senior titles of professional and technical personnel 26 people, with our own invention patent. We understand the technical standards and production standards of wire and cable of various countries in the world, can design and produce 6 categories, more than 800 types and specifications of wire and cable. The annual output reaches 70 million meters. The main products are high temperature resistant wire and cable, high voltage resistant wire and cable, shielded cable, coaxial cable, thermocouple compensation wire and other special wire and cable. Products are widely used in aerospace, electronic appliances, instrumentation, metallurgy and chemical industries, especially for high temperature, low temperature, strong acid, strong alkali, high oil, strong radiation and other harsh working environment.
Dingzun Cable connecting the whole world, outputting surging power, transferring the cooperation signal, shares opportunities and future.
1. Are you a manufacture or trading company?
We are a professional manufacture over 18 years, and our factory based in Shanghai. Warmly welcome to visit us.
2. Does your company accept OEM production?
Sure, our company policy is Order Oriented Customization, we could print your brand and produce according to your specification, if the minimum quantity achieved.
3. What about the lead time for mass production?
Our production capacity is sufficient, normally 10-20 days we can deliver your order, only if quantity is big, we’ll offer you specified delivery time.
4. What’s your minimum quantity?
Usually 100m, however cable is heavy product, the freight really costs, we suggest a reasonable quantity.
5. How can I get a sample to check your quality?
Samples are free for customer; you only need to pay the courier charge.
6. How does you company control the quality?
Our company has a team of experienced QC, who do in-line and finished goods inspection, we even got certificate of ISO9001. Our products have been certified by UL, CE, SGS, RoHS, CCC etc
