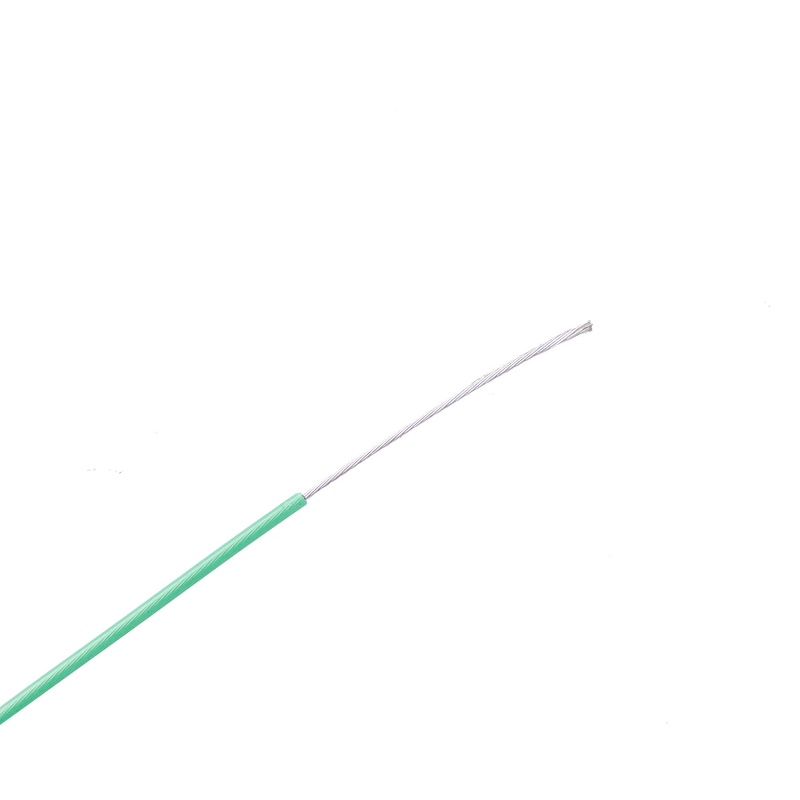

DingZun Cable The Fine Quality Manufacturer UL10362 PFA High Temperature Wire for Electronic Appliances
A variety of industrial areas where high temperatures, hardening chemical erosion or limited installation space make it impossible to use conventional cables
Lighting equipment, high temperature control cabinet, instrumentation, boiler, brick factory, heating equipment and kitchen appliances, special motor, chemical industry equipment, etc
Technical Parameters:
Rated Temperature:-80℃∽+250℃
Rated Voltage:600V
Conductor: 36AWG-10AWG solid/stranded Tinned Copper /Silver Copper/Nickel Copper
Insulation:PFA
AWG | Section (mm2) | Conductor No./Dia. (mm) | Avg. Insulation Thickness (mm) | Min. Insulation Thickness (mm) | Overall Dia. (mm) | Max. Resistance 20℃(≤Ω/km) |
| 36 | 0.014 | 7/0.05 | 0.23 | 0.20 | 0.61 | 1360 |
| 34 | 0.02 | 1/0.16 | 0.23 | 0.20 | 0.62 | 1048 |
| 32 | 0.03 | 7/0.08 | 0.23 | 0.20 | 0.70 | 664.8 |
| 1/0.20 | 0.23 | 0.20 | 0.66 | 588.3 |
| 30 | 0.05 | 7/0.10 | 0.23 | 0.20 | 0.76 | 381 |
| 1/0.26 | 0.23 | 0.20 | 0.72 | 361 |
| 28 | 0.08 | 7/0.12 | 0.26 | 0.21 | 0.88 | 239 |
| 1/0.32 | 0.26 | 0.21 | 0.84 | 227 |
| 26 | 0.13 | 7/0.16 | 0.26 | 0.21 | 1.00 | 150 |
| 1/0.41 | 0.26 | 0.21 | 0.93 | 143 |
| 24 | 0.22 | 7/0.20 | 0.26 | 0.21 | 1.12 | 94.2 |
| 19/0.12 | 0.26 | 0.21 | 1.12 | 89.3 |
| 22 | 0.33 | 7/0.25 | 0.26 | 0.21 | 1.27 | 56.4 |
| 19/0.15 | 0.26 | 0.21 | 1.27 | 59.4 |
| 20 | 0.5 | 7/0.32 | 0.26 | 0.21 | 1.48 | 35.2 |
| 19/0.18 | 0.26 | 0.21 | 1.42 | 36.7 |
| 18 | 0.8 | 7/0.40 | 0.26 | 0.21 | 1.72 | 23.2 |
| 19/0.23 | 0.26 | 0.21 | 1.67 | 24.6 |
| 16 | 1.3 | 19/0.30 | 0.26 | 0.21 | 2.02 | 14.6 |
| 14 | 2 | 19/0.37 | 0.26 | 0.21 | 2.37 | 10 |
| 12 | 3.3 | 19/0.48 | 0.26 | 0.21 | 2.92 | 5.64 |
| 10 | 5.3 | 37/0.43 | 0.26 | 0.21 | 3.53 | 3.546 |
| Remarks: more AWG available, pls. contact us |
Shanghai Dingzun Special Electric Wire and Cable Co., Ltd. as a high-tech enterprise was established in 2005, which engaged in special wire and cable research, development, design, manufacturing.
Shanghai Dingzun Special Electric Wire and Cable Co., Ltd. has strong technical force, existing staff 132 people, including senior titles of professional and technical personnel 26 people, with our own invention patent. We understand the technical standards and production standards of wire and cable of various countries in the world, can design and produce 6 categories, more than 800 types and specifications of wire and cable. The annual output reaches 70 million meters. The main products are high temperature resistant wire and cable, high voltage resistant wire and cable, shielded cable, coaxial cable, thermocouple compensation wire and other special wire and cable. Products are widely used in aerospace, electronic appliances, instrumentation, metallurgy and chemical industries, especially for high temperature, low temperature, strong acid, strong alkali, high oil, strong radiation and other harsh working environment.
1. Are you a manufacture or trading company?
We are a professional manufacture over 18 years, and our factory based in Shanghai. Warmly welcome to visit us.
2. Does your company accept OEM production?
Sure, our company policy is Order Oriented Customization, we could print your brand and produce according to your specification, if the minimum quantity achieved.
3. What about the lead time for mass production?
Our production capacity is sufficient, normally 10-20 days we can deliver your order, only if quantity is big, we’ll offer you specified delivery time.
4. What’s your minimum quantity?
Usually 100m, however cable is heavy product, the freight really costs, we suggest a reasonable quantity.
5. How can I get a sample to check your quality?
Samples are free for customer; you only need to pay the courier charge.
6. How does you company control the quality?
Our company has a team of experienced QC, who do in-line and finished goods inspection, we even got certificate of ISO9001. Our products have been certified by UL, CE, SGS, RoHS, CCC etc
