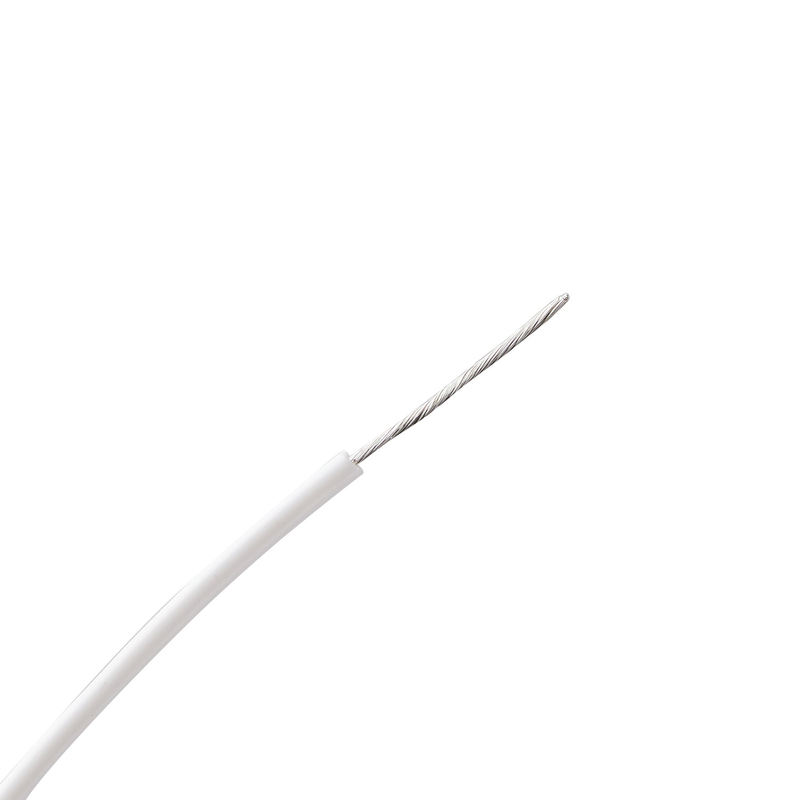

SIF SIFE Electrical Power UL3135 Silicon Rubber Wire 12AWG For Instrumentation

Place of Origin China
Brand Name Dingzun
Certification UL,CE,ISO9001
Model Number 04-05
Product Details
Produce Name::
UL3135 SILICONE RUBBER WIRE
Conductor Material:
Tinned Copper
Insulation Material:
Silicon Rubber
Rated Temperature::
-60℃~+200℃
Rated Voltage::
600V
Size::
26AWG-12AWG
Application:
Electronic Appliances
Sample:
Can Be Provided For Evaluating
OEM:
We Can Produce Any Your Designs
Inspection:
Strict Inspection Personnel And Promotion
High Light:

UL3135 Silicone Wire

,

UL Certified Silicone Wire

,

12AWG High Temperature Silicone Wire

Product Description

Electrical Power UL3135 Silicon Rubber Wire 12AWG For Instrumentation

Details:SIF SIFE

Nominal Voltage /Nominal Voltage :600V

Temperature range :-60 ° C to +200 ° C

The Colours are white, blue, red, black, brown, green, yellow and green

O.d. Talerance :±0.1mm

Test voltage :2000V

Conductor: Tinned Copper /Tinned Copper

Insulator /Insulator: Silicone rubber /Insulator

Applications:

Used in steel industry, aviation industry, shipbuilding, cement, glass and ceramics factories. Because this single core does not contain halogen, it is especially suitable for · widely used in lighting lamps, household appliances, electric heating appliances, instrumentation, motor wiring, electronics, lamps, dyeing and other high temperature wire environment.



AWG

Section

(mm2)

Conductor

No./ Dia.

(mm)

Avg.

Insulation Thickness

(mm)

Min.

Insulation Thickness

(mm)

Overall Dia.

(mm)

Max. Resistance

20℃(≤Ω/km)

26 0.13 7/0.16 0.76 0.69 2.00 150
24 0.22 7/0.20 0.76 0.69 2.12 94.2
22 0.33 7/0.25 0.76 0.69 2.27 59.4
20 0.50 7/0.32 0.76 0.69 2.48 36.7
18 0.80 7/0.40 0.76 0.69 2.72 23.2
17 1.0 32/0.20 0.76 0.69 2.82 20
16 1.3 7/0.50 0.76 0.69 3.02 14.6
14 2.0 41/0.25 0.76 0.69 3.37 10
12 3.3 49/0.30 0.76 0.69 4.22 5.64
Remarks: more AWG available, pls. contact us

Shanghai Dingzun Special Electric Wire and Cable Co., Ltd. as a high-tech enterprise was established in 2005, which engaged in special wire and cable research, development, design, manufacturing.

Shanghai Dingzun Special Electric Wire and Cable Co., Ltd. has strong technical force, existing staff 132 people, including senior titles of professional and technical personnel 26 people, with our own invention patent. We understand the technical standards and production standards of wire and cable of various countries in the world, can design and produce 6 categories, more than 800 types and specifications of wire and cable. The annual output reaches 70 million meters. The main products are high temperature resistant wire and cable, high voltage resistant wire and cable, shielded cable, coaxial cable, thermocouple compensation wire and other special wire and cable. Products are widely used in aerospace, electronic appliances, instrumentation, metallurgy and chemical industries, especially for high temperature, low temperature, strong acid, strong alkali, high oil, strong radiation and other harsh working environment.

Currently our company has two production workshops, nearly 5000 square meters of production space, equipped with 18 production lines of various types, 156 other auxiliary production equipment, 48 testing equipment, including 36 inline testing equipment. Complete testing equipment guarantee premium product quality, meanwhile strong production capacity ensures timely order delivery.

The company has passed ISO9001:2015 international quality management system certification, our products have passed CCC compulsory certification in China, UL certification in the United States, CE certification in the European Union, and our products are sold to the United States, Europe, Japan and other countries and regions. Our system certification, product safety certification and global customers praise prove that our products are trustworthy. In addition, the wire and cable we produce also passed RoHS testing, in line with the environmental requirements of the European Union, we protect our common green home together with you.

According to customer requirements, we can also do custom design, production, to meet customer specific requirements of wire and cable, or according to customer construction drawings to make product customization.

Our production base is located in Shanghai, the largest commercial city in China, which can quickly and conveniently reach all countries of the world.

Dingzun Cable connecting the whole world, outputting surging power, transferring the cooperation signal, shares opportunities and future.
