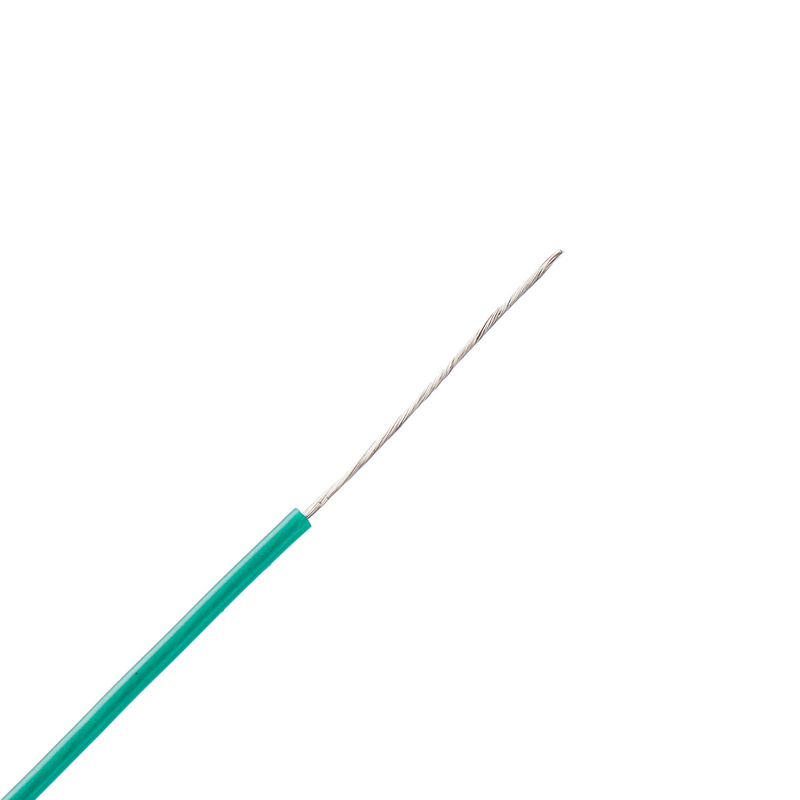

High Temp Silicone Cable
>
|
| Place of Origin | China |
| Brand Name | Dingzun |
| Certification | UL,CE,ISO9001 |
| Model Number | 04-09 |
Technical Parameters
Details:SIF SIFE
Rated Temperature:-60℃∽+150℃
Rated Voltage:300V
Conductor:26AWG-20AWG solid/stranded Tinned Copper
Insulation:Silicone Rubber
Color: red, yellow, blue, white, black, green, brown, orange, purple, yellow green, off white etc.
Certificate/Standard: tested and approved by UL, UL file No.:E311865
Application: widely used in electronic appliances, lighting, instrumentation
Better welding, firm, oxidation resistance, no blackening, long service life, oxygen free copper conductivity is good
High purity silica gel, soft and good bending resistance, stable output current, through repeated round and round test, not easy to short circuit, circuit break, not easy to break.
Wear resistance, tensile resistance, aging resistance
Features:
Excellent environmental protection, tasteless, non-toxic, excellent anti-thrombotic, biological inert; Excellent electrical insulation performance; High temperature resistance, long-term to 180℃. Short time temperature resistance can 220℃, low temperature resistance, the minimum service temperature is -60℃; Oil and chemical resistance, silicone rubber has medium resistance; High temperature resistant silicone rubber cable has stable electrical performance, good aging resistance and long service life in high temperature environment. It can be used in long-term humid environment and has superior waterproof and mildew resistance. Silicone rubber is very soft, has good elasticity, excellent bending properties, and is soft and easy to install · Optional - corrosion of combustion gases (halogen-free) according to DIN VDE 0482 Part 267, DIN EN 50267-2-2, IEC 60754-2 VDE 0472 Part 813); Behavior in fire without flame propagation shall conform to DIN VDE 0482-332-1-2, DIN EN 60332-1-2 (equivalent to DIN VDE 0472 Part 804 Test Method B)
· No harmful substances, in line with ROHS standards
Applications:
Used in steel industry, aviation industry, shipbuilding, cement, glass and ceramics factories. Because this single core does not contain halogen, it is especially suitable for · widely used in lighting lamps, household appliances, electric heating appliances, instrumentation, motor wiring, electronics, lamps, dyeing and other high temperature wire environment
|
AWG |
Section (mm2) |
Conductor No./ Dia. (mm) |
Avg. Insulation Thickness (mm) |
Min. Insulation Thickness (mm) |
Overall Dia. (mm) |
Max. Resistance 20℃(≤Ω/km) |
| 26 | 0.13 | 7/0.16 | 1.52 | 1.37 | 3.52 | 150 |
| 1/0.41 | 1.52 | 1.37 | 3.45 | 156 | ||
| 24 | 0.22 | 7/0.20 | 1.52 | 1.37 | 3.64 | 93.8 |
| 1/0.52 | 1.52 | 1.37 | 3.56 | 94.2 | ||
| 22 | 0.33 | 7/0.25 | 1.52 | 1.37 | 3.79 | 58.6 |
| 1/0.65 | 1.52 | 1.37 | 3.69 | 59.4 | ||
| 20 | 0.50 | 7/0.32 | 1.52 | 1.37 | 4.00 | 36.7 |
| 1/0.82 | 1.52 | 1.37 | 3.86 | 35.2 | ||
| Remarks: more AWG available, pls. contact us | ||||||
1. Are you a manufacture or trading company?
We are a professional manufacture over 18 years, and our factory based in Shanghai. Warmly welcome to visit us.
2. Does your company accept OEM production?
Sure, our company policy is Order Oriented Customization, we could print your brand and produce according to your specification, if the minimum quantity achieved.
3. What about the lead time for mass production?
Our production capacity is sufficient, normally 10-20 days we can deliver your order, only if quantity is big, we’ll offer you specified delivery time.
4. What’s your minimum quantity?
Usually 100m, however cable is heavy product, the freight really costs, we suggest a reasonable quantity.
5. How can I get a sample to check your quality?
Samples are free for customer; you only need to pay the courier charge.
6. How does you company control the quality?
Our company has a team of experienced QC, who do in-line and finished goods inspection, we even got certificate of ISO9001. Our products have been certified by UL, CE, SGS, RoHS, CCC etc.
