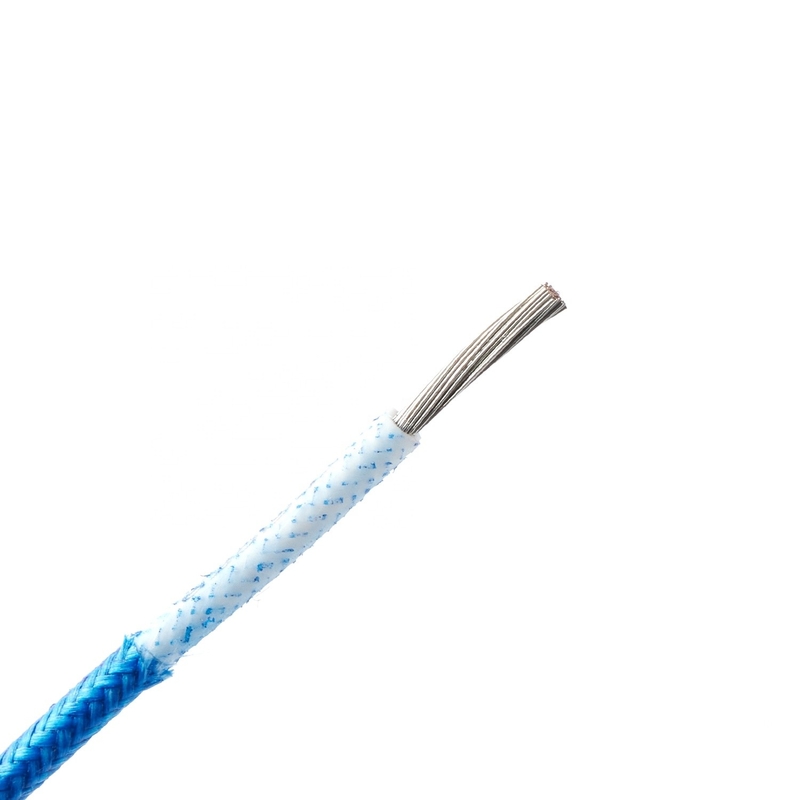

Fire Resistance Cable
>
|
|
| Place of Origin | China |
| Brand Name | Dingzun |
| Certification | UL,CE,ISO9001 |
| Model Number | 05-05 |
Rated voltage: 600V
Conductor: 18 to 14AWG tinned copper
Insulation: silicone
Woven: glass fiber + silica gel
Available colors: black - brown - red - orange - yellow - green - blue - purple - gray - white - transparent - green/yellow, etc
Allowable outer diameter: ±0.10 mm
Model: AWM 3071
Packing: 305m per roll, 200m per roll, or upon request
Temperature range: -60℃ to + 200℃
Standard: UL3071/3074
Product Features:
High temperature resistance, low temperature resistance, acid and alkali resistance, fire and aging resistance, corrosion resistance, moisture resistance, good electrical insulation flexible performance UL758&UL 1581, RoHs compliance.
Product Application:
Applications to home appliances, lighting and household appliances. Lighting & headlights, electric machines, temperature sensors, military series, metallurgical and chemical series, automobiles & ships, electrical installation.
| AWG | Section(mm2) |
Conductor No./Dia. (mm) |
Avg. Insulation Thickness (mm) |
Min. Insulation. Dia. (mm) |
Braid Thickness (mm) |
Overall Dia. (mm) |
Max. Resistance 20℃ (≤Ω/km) |
| 18 | 0.80 | 7/0.40 | 0.76 | 0.69 | 0.25 | 3.22 | 23.2 |
| 17 | 1.0 | 32/0.20 | 0.76 | 0.69 | 0.25 | 3.32 | 20 |
| 16 | 1.3 | 7/0.5 | 0.76 | 0.69 | 0.25 | 3.52 | 14.6 |
| 15 | 1.5 | 30/0.25 | 0.76 | 0.69 | 0.25 | 3.62 | 14 |
| 14 | 2.0 | 41/0.25 | 0.76 | 0.69 | 0.25 | 3.87 | 10 |
| 13 | 2.5 | 49/0.25 | 0.76 | 0.69 | 0.25 | 4.07 | 8.2 |
| Remarks:more AWG available, pls. contact us for more information | |||||||
1. Are you a manufacture or trading company?
We are a professional manufacture over 18 years, and our factory based in Shanghai. Warmly welcome to visit us.
2. Does your company accept OEM production?
Sure, our company policy is Order Oriented Customization, we could print your brand and produce according to your specification, if the minimum quantity achieved.
3. What about the lead time for mass production?
Our production capacity is sufficient, normally 10-20 days we can deliver your order, only if quantity is big, we’ll offer you specified delivery time.
4. What’s your minimum quantity?
Usually 100m, however cable is heavy product, the freight really costs, we suggest a reasonable quantity.
5. How can I get a sample to check your quality?
Samples are free for customer; you only need to pay the courier charge.
6. How does you company control the quality?
Our company has a team of experienced QC, who do in-line and finished goods inspection, we even got certificate of ISO9001. Our products have been certified by UL, CE, SGS, RoHS, CCC etc.
