| Place of Origin | China |
| Brand Name | Dingzun |
| Certification | UL,CE,ISO9001 |
| Model Number | 08-10 |

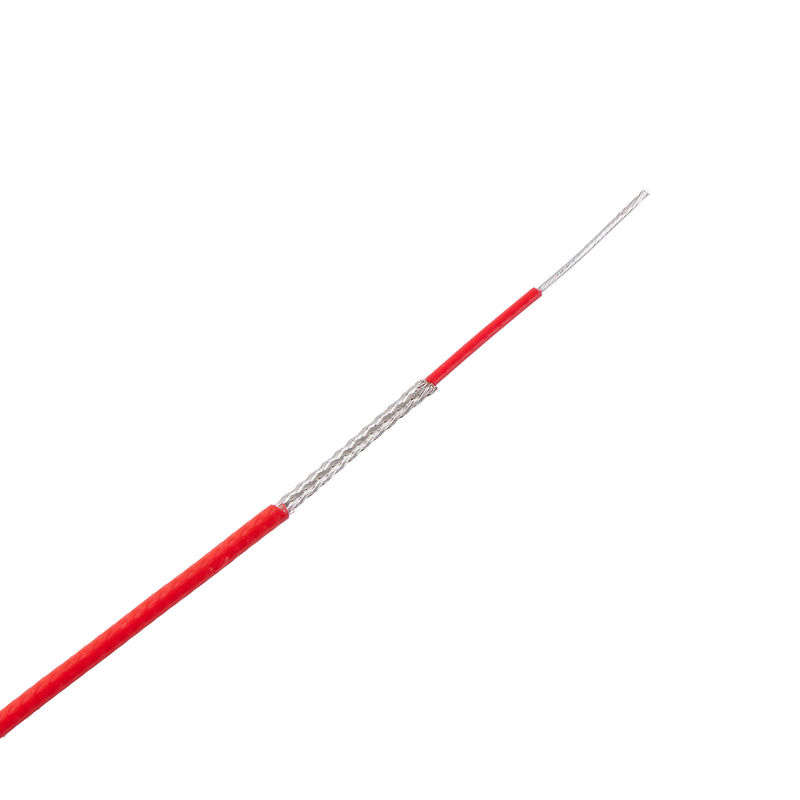

A CABLE composed of mutually insulated COAXIAL conductors inside and outside COAXIAL CABLE: the inner conductor is copper wire, and the outer conductor is copper pipe or a network. The electromagnetic field is closed between the inner and outer conductors, so the radiation loss is small, and the influence of the outside interference is small. Often used to transmit multichannel telephone and television. The name coaxial cable is related to its structure. Coaxial cable is also one of the common transmission media in local area network. It a pair of conductor is intended to convey information in accordance with a layer of the outer conductor of cylinder type set, outside of the conductor (a thin core), isolated from each other with insulating material between two conductors choose the structure of the system, and the outer conductor and the center axis core's center on the same axis, it is called a coaxial cable, coaxial cable is designed in this way, It is also to prevent external electromagnetic waves from interfering with the transmission of abnormal signals.
Technical Parameters
Rated Temperature:-55℃∽+200℃
Rated Voltage:voltage test 2000v, spark test voltage 4000 v
Conductor:Sliver copper
Insulation:PTFE
Color: light brown, transparent, blue
Certificate/Standard: Product conform to RoHS and flame retardant Standard
Application: Widely used for high frequency signal transmission in communication equipment or other electronic equipment
| Style |
Conductor No./ Dia. (mm) |
outer dia (mm) | shield layers |
Average jacket thickness (mm) |
OD (mm) |
attenuation constant (≤dB/m) | ||
| 30Hz | 200Hz | 3000Hz | ||||||
| RG-179D | 7/0.10 | 1.50 | 2 | ≥0.35 | 3.10 | 0.20 | 0.50 | 2.0 |
Shanghai Dingzun Special Electric Wire and Cable Co., Ltd. as a high-tech enterprise was established in 2005, which engaged in special wire and cable research, development, design, manufacturing.
Shanghai Dingzun Special Electric Wire and Cable Co., Ltd. has strong technical force, existing staff 132 people, including senior titles of professional and technical personnel 26 people, with our own invention patent. We understand the technical standards and production standards of wire and cable of various countries in the world, can design and produce 6 categories, more than 800 types and specifications of wire and cable. The annual output reaches 70 million meters. The main products are high temperature resistant wire and cable, high voltage resistant wire and cable, shielded cable, coaxial cable, thermocouple compensation wire and other special wire and cable. Products are widely used in aerospace, electronic appliances, instrumentation, metallurgy and chemical industries, especially for high temperature, low temperature, strong acid, strong alkali, high oil, strong radiation and other harsh working environment.
Currently our company has two production workshops, nearly 5000 square meters of production space, equipped with 18 production lines of various types, 156 other auxiliary production equipment, 48 testing equipment, including 36 inline testing equipment. Complete testing equipment guarantee premium product quality, meanwhile strong production capacity ensures timely order delivery.
The company has passed ISO9001:2015 international quality management system certification, our products have passed CCC compulsory certification in China, UL certification in the United States, CE certification in the European Union, and our products are sold to the United States, Europe, Japan and other countries and regions. Our system certification, product safety certification and global customers praise prove that our products are trustworthy. In addition, the wire and cable we produce also passed RoHS testing, in line with the environmental requirements of the European Union, we protect our common green home together with you.
According to customer requirements, we can also do custom design, production, to meet customer specific requirements of wire and cable, or according to customer construction drawings to make product customization.
Our production base is located in Shanghai, the largest commercial city in China, which can quickly and conveniently reach all countries of the world.
Dingzun Cable connecting the whole world, outputting surging power, transferring the cooperation signal, shares opportunities and future.
