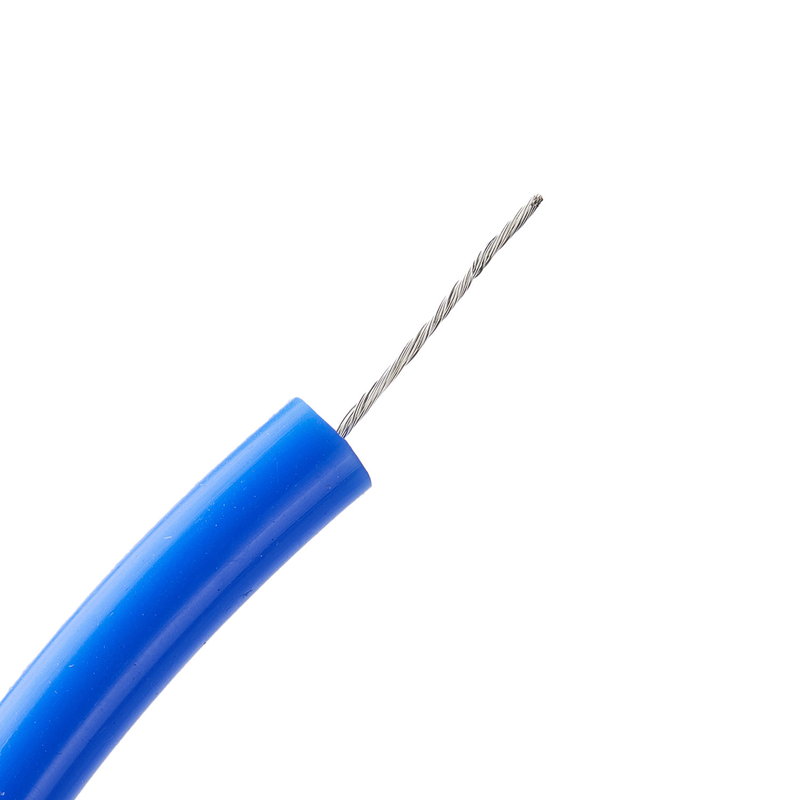

Silicone High Voltage Cable For Lighting

Place of Origin China
Brand Name Dingzun
Certification UL,CE,ISO9001
Model Number 10-01
Product Details
Product Name::
AGG SILICONE RUBBER INSULATED HIGH VOLTAGE WIRE
Conductor Material::
Tinned Copper
Insulation Material::
Silicone Rubber
Rated Temperature::
-60℃~+200℃
Rated Voltage::
10KVDC~150KVDC
Size:
36AWG-16AWG
Application::
Instrumentation
OEM:
We Can Produce Any Your Designs
Sample:
Can Be Provided For Evaluating
Inspection:
Strict Inspection Personnel And Promotion
High Light:

High Temperature Extra High Voltage Cable

,

150KVDC high voltage wire

,

Silicone Extra High Voltage Cable

Product Description

Dingzun Cable High Temperature Connecting AGG SILICONE RUBBER INSULATED HIGH VOLTAGE WIRE for Lighting
Rated Temperature:-60℃∽+200℃
Rated Voltage:10KVDC∽150KVDC
Conductor:Stranded Tinned Copper
Insulation:Silicone Rubber
Insulation Color:Red, yellow, blue, white, black, green, brown,orange,gray.etc.

Application: high voltage wire for electrical appliances and other equipment
Automotive high-voltage ignition wire adopts silicone insulation technology, high temperature resistance -40 degrees to +220 degrees, high voltage 35KV; The core is made of silica gel conductor with stable resistance and superior conductive performance. Line body multi-layer reinforcement, longer service life. From the internal structure, the high pressure ignition line has single core, three core, four core, five core points. In principle, the more cores, the smaller the resistance, the higher the ignition intensity, and the more expensive the price. But the core is too much, the current is too strong, if you do not use special packaging and shielding materials, it will produce electromagnetic interference so that the car audio and car computer by electromagnetic interference and can not work normally, and the firepower is too strong also easy to cause the car engine is not adapted to, As a result, the car shakes, reduces the life of the ignition coil and spark plug, and the car stereo and car computer are affected by electromagnetic interference and can not work properly.

Section

(mm2)

Conductor

(mm)

Overall Dia.(mm)

Max. Resistance

20℃

(≤Ω/km)

AGG-10KVDC AGG-20KVDC AGG-30KVDC AGG-50KVDC
0.20 7/0.20 3.00 4.20 6.60 8.60 95.0
0.35 19/0.16 3.20 4.40 6.80 8.80 53.1
0.50 16/0.20 3.40 4.60 7.00 9.00 40.1
0.75 24/0.20 4.00 4.80 7.20 9.20 26.7
1 32/0.20 4.20 5.40 8.20 9.70 20.0
1.5 48/0.20 4.80 5.60 8.60 10.00 13.7
2.5 49/0.25 5.40 6.60 9.40 11.20 8.21
4 56/0.30 6.00 7.20 10.10 11.80 5.09
6 84/0.30 7.20 8.60 11.20 13.60 3.39




Section

(mm2)

Conductor

(mm)

Overall Dia.(mm)

Max. Resistance

20℃

(≤Ω/km)

AGG-80KVDC AGG-100KVDC AGG-120KVDC AGG-150KVDC
4 56/0.30 15.80 18.8 21.8 25.8 5.09
6 84/0.30 16.60 19.6 22.8 26.8 3.39
10 84/0.40 18.60 21.6 24.8 28.6 1.95

Shanghai Dingzun Special Electric Wire and Cable Co., Ltd. as a high-tech enterprise was established in 2005, which engaged in special wire and cable research, development, design, manufacturing.



Shanghai Dingzun Special Electric Wire and Cable Co., Ltd. has strong technical force, existing staff 132 people, including senior titles of professional and technical personnel 26 people, with our own invention patent. We understand the technical standards and production standards of wire and cable of various countries in the world, can design and produce 6 categories, more than 800 types and specifications of wire and cable. The annual output reaches 70 million meters. The main products are high temperature resistant wire and cable, high voltage resistant wire and cable, shielded cable, coaxial cable, thermocouple compensation wire and other special wire and cable. Products are widely used in aerospace, electronic appliances, instrumentation, metallurgy and chemical industries, especially for high temperature, low temperature, strong acid, strong alkali, high oil, strong radiation and other harsh working environment.



Currently our company has two production workshops, nearly 5000 square meters of production space, equipped with 18 production lines of various types, 156 other auxiliary production equipment, 48 testing equipment, including 36 inline testing equipment. Complete testing equipment guarantee premium product quality, meanwhile strong production capacity ensures timely order delivery.

The company has passed ISO9001:2015 international quality management system certification, our products have passed CCC compulsory certification in China, UL certification in the United States, CE certification in the European Union, and our products are sold to the United States, Europe, Japan and other countries and regions. Our system certification, product safety certification and global customers praise prove that our products are trustworthy. In addition, the wire and cable we produce also passed RoHS testing, in line with the environmental requirements of the European Union, we protect our common green home together with you.

According to customer requirements, we can also do custom design, production, to meet customer specific requirements of wire and cable, or according to customer construction drawings to make product customization.

Our production base is located in Shanghai, the largest commercial city in China, which can quickly and conveniently reach all countries of the world.

Dingzun Cable connecting the whole world, outputting surging power, transferring the cooperation signal, shares opportunities and future.

1. Are you a manufacture or trading company?
We are a professional manufacture over 18 years, and our factory based in Shanghai. Warmly welcome to visit us.
2. Does your company accept OEM production?
Sure, our company policy is Order Oriented Customization, we could print your brand and produce according to your specification, if the minimum quantity achieved.
3. What about the lead time for mass production?
Our production capacity is sufficient, normally 10-20 days we can deliver your order, only if quantity is big, we’ll offer you specified delivery time.
4. What’s your minimum quantity?
Usually 100m, however cable is heavy product, the freight really costs, we suggest a reasonable quantity.
5. How can I get a sample to check your quality?
Samples are free for customer; you only need to pay the courier charge.
6. How does you company control the quality?
Our company has a team of experienced QC, who do in-line and finished goods inspection, we even got certificate of ISO9001. Our products have been certified by UL, CE, SGS, RoHS, CCC etc.
