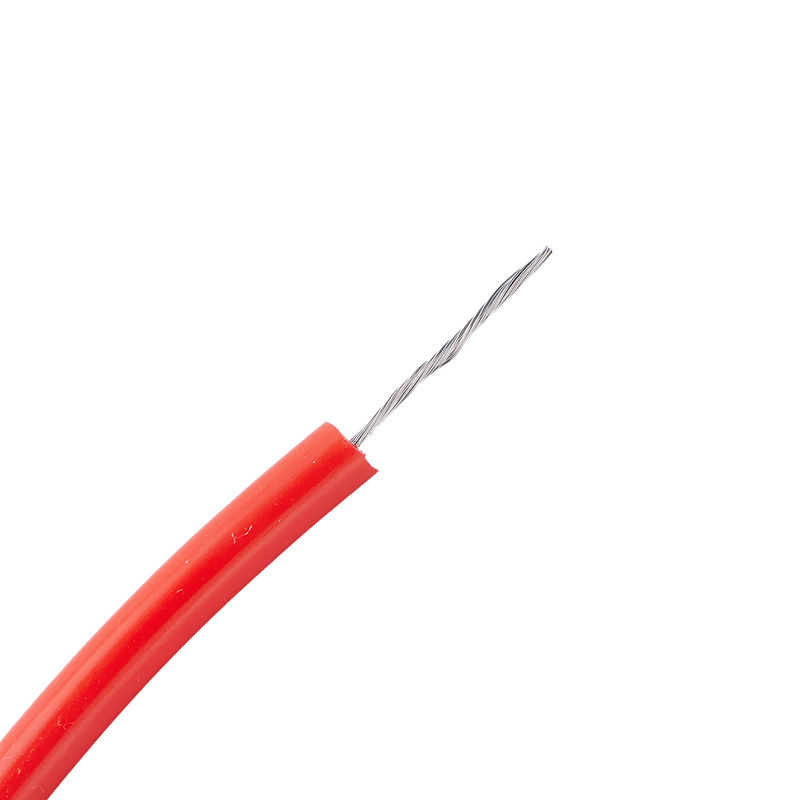

UL3239 Silicone Rubber Insulated High Volated Wire For Lighting

Place of Origin China
Brand Name Dingzun
Certification UL,CE,ISO9001
Model Number 10-06
Product Details
Product Name::
UL3239 SILICONE RUBBER INSULATED HIGH VOLTAGE WIRE
Conductor Material::
Tinned Copper/ Copper
Insulation Material::
Rubber
Rated Temperature::
-60℃~+200℃
Rated Voltage::
3KVDC-50KVDC
Type:
Solid Or Stranded
Application::
Electronic Appliances
OEM:
We Can Produce Any Your Designs
Sample:
Can Be Provided For Evaluating
Inspection:
Strict Inspection Personnel And Promotion
High Light:

SILICONE high voltage cable UL3239

,

UL3239 Silicone High Voltage Cable

,

Insulated High Volated Wire

Product Description

Silicone Rubber Insulated High Volated Wire For Lighting

UL3239 silicone high voltage wire, not only has high pressure resistance, but also has the excellent performance of high temperature resistance, low temperature resistance.
Silica gel high voltage wire is widely used in LCD TV high voltage line, household appliances, lighting fixtures, aviation, electric heating products and other high temperature environment.
UL3239 silicone wire rated temperature is relatively high, the basic can reach 150℃~300℃, rated voltage can reach about 3KV-200kV, silicone rubber insulation material, uniform insulation thickness, convenient peeling and cutting, rated temperature is 150℃ rated voltage is 3KV-50KV DC voltage;
◆ Standard: UL758, UL1581
◆ Use 28-10AWG single or stranded bare copper or tinned copper wires for conductors
◆ Silicone rubber insulation
◆ Uniform insulation thickness, easy to peel and cut
◆ Passed FT2 horizontal combustion test application:
Used for internal wiring of electronic and electrical equipment, such as motor, etc.

AWG



Conductor(mm)



Outer Dia.(mm)

Max. Resistance

20℃(≤Ω/km)

  3KV6KV10KV15KV20KV30KV40KV50KV
267/0.161.52.12.62.93.34.14.95.7146
247/0.201.62.22.73.03.44.25.05.894.3
227/0.261.82.42.93.23.64.45.26.057.8
207/0.322.02.63.13.43.84.65.46.240.1
1816/0.262.22.83.33.64.04.85.66.423.0
 19/0.232.22.83.33.64.04.85.66.423.1
1626/0.262.63.23.74.04.45.26.06.814.6
 19/0.302.53.13.63.94.35.15.96.714.6
1437/0.263.13.74.44.75.16.17.37.99.9
 19/0.373.23.84.54.85.16.17.37.99.1


Shanghai Dingzun Special Electric Wire and Cable Co., Ltd. as a high-tech enterprise was established in 2005, which engaged in special wire and cable research, development, design, manufacturing.

Shanghai Dingzun Special Electric Wire and Cable Co., Ltd. has strong technical force, existing staff 132 people, including senior titles of professional and technical personnel 26 people, with our own invention patent. We understand the technical standards and production standards of wire and cable of various countries in the world, can design and produce 6 categories, more than 800 types and specifications of wire and cable. The annual output reaches 70 million meters. The main products are high temperature resistant wire and cable, high voltage resistant wire and cable, shielded cable, coaxial cable, thermocouple compensation wire and other special wire and cable. Products are widely used in aerospace, electronic appliances, instrumentation, metallurgy and chemical industries, especially for high temperature, low temperature, strong acid, strong alkali, high oil, strong radiation and other harsh working environment.
Currently our company has two production workshops, nearly 5000 square meters of production space, equipped with 18 production lines of various types, 156 other auxiliary production equipment, 48 testing equipment, including 36 inline testing equipment. Complete testing equipment guarantee premium product quality, meanwhile strong production capacity ensures timely order delivery.
The company has passed ISO9001:2015 international quality management system certification, our products have passed CCC compulsory certification in China, UL certification in the United States, CE certification in the European Union, and our products are sold to the United States, Europe, Japan and other countries and regions. Our system certification, product safety certification and global customers praise prove that our products are trustworthy. In addition, the wire and cable we produce also passed RoHS testing, in line with the environmental requirements of the European Union, we protect our common green home together with you.
According to customer requirements, we can also do custom design, production, to meet customer specific requirements of wire and cable, or according to customer construction drawings to make product customization.
Our production base is located in Shanghai, the largest commercial city in China, which can quickly and conveniently reach all countries of the world.
Dingzun Cable connecting the whole world, outputting surging power, transferring the cooperation signal, shares opportunities and future.
