10p X 24awg Multi Pair Instrument Cable 10 Pairs FEP Sensor Cable
  • 10p X 24awg Multi Pair Instrument Cable 10 Pairs FEP Sensor Cable
  • 10p X 24awg Multi Pair Instrument Cable 10 Pairs FEP Sensor Cable
  • 10p X 24awg Multi Pair Instrument Cable 10 Pairs FEP Sensor Cable
  • 10p X 24awg Multi Pair Instrument Cable 10 Pairs FEP Sensor Cable
  • 10p X 24awg Multi Pair Instrument Cable 10 Pairs FEP Sensor Cable
  • 10p X 24awg Multi Pair Instrument Cable 10 Pairs FEP Sensor Cable

10p X 24awg Multi Pair Instrument Cable 10 Pairs FEP Sensor Cable

Place of Origin shanghai
Brand Name dingzun
Certification ul
Model Number y-33
Product Details
C/O:
CHINA
Conductor:
Tinned Copper
Stranded:
Stranded
Construction:
10p*24awg
Insulation:
FEP
Shield:
Tinned Copper
Armor:
Tinned Copper
SHEATH:
FEP
Temperature:
200C
Voltage:
300/500V
Application:
SENSOR CABLE
CORES:
10pairs
High Light:

multi pair double shielded instrument cable

,

10 Pairs FEP Sensor Cable

,

FEP Sensor Multi Pair Instrument Cable

Product Description

y-33

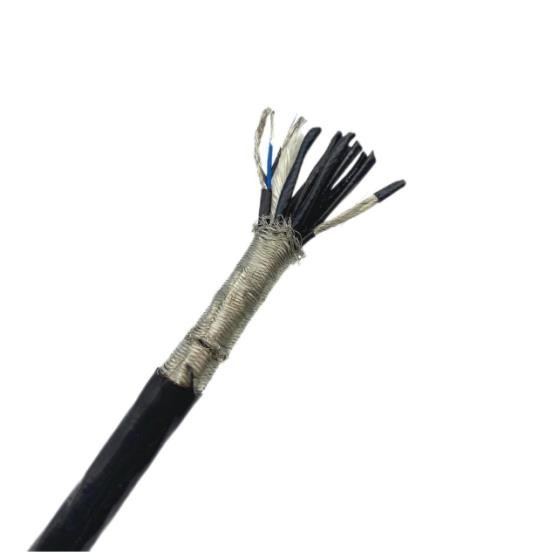

A 10pairs sensor cable for earthquake instrument company. Our Swiss client is a famous earthquake detecting technology company. They need to duplicate a 10 pairs sensor cable for high precision signal transmission, specially they need to shield form all possible useless wave in order to get a correct, pure, clean signal from the instrument.

Dingzun experienced technical team suggested double shielding procedure, namely spiral wrapping plus silver copper braid. One more tough question is due to this instrument need outer diameter no more than 10mm, just imagine, you need to put 10pairs means 20 wires plus 2 layers of

shielding and outer jacket, it’s really a task, Dingzun cable team tried different materials for insulation, and also need to take the various requirements such a s bear resistance, bending resistance, weather resistance performances, together with many electrical data details, after one mont

ARMORED CABLE

PAIRS nominal conductor diameter nominal insulation thickness inner thickness inner diameter armor steel diameter Jacjet thickness Max. Overall Diameter estimated weight
pairs mm mm mm mm mm mm mm Kg/Km
2(0) 0.9 0.3 0.8 5.7 0.9 1.3 10.1 200
5 0.9 0.3 1 9.4 0.9 1.4 14.1 370
10 0.9 0.3 1.1 13 1.25 1.5 18.6 610
20 0.9 0.3 1.2 16.8 1.25 1.6 22.7 930
30 0.9 0.3 1.4 19.9 1.6 1.7 26.7 1390
50 0.9 0.3 1.6 25.4 1.6 1.9 32.6 1940
100 0.9 0.3 1.9 35.5 2 2 44.1 3700
SHIELDED
2(0) 0.9 0.3 0.8 6.2 0.9 1.3 10.6 220
5 0.9 0.3 1 9.9 0.9 1.4 14.6 380
10 0.9 0.3 1.1 13.5 1.25 1.5 19.1 630
20 0.9 0.3 1.2 17.3 1.25 1.6 23.2 955
30 0.9 0.3 1.4 20.4 1.6 1.7 27.2 1415
50 0.9 0.3 1.6 25.9 1.6 1.9 33.1 2000
100 0.9 0.3 1.9 36 2 2 44.6 3750
NON-ARMORED CABLE

pairs nominal conductor diameter section area insulation thickness jacket thickness Max. Overall Diameter estimated weight
pairs mm mm2 mm mm mm Kg/Km
NON-SHIELDED
2(0) 0.9 0.64 0.3 1.3 5.7 45
5 0.9 0.64 0.3 1.4 9.4 115
10 0.9 0.64 0.3 1.5 13 205
20 0.9 0.64 0.3 1.6 16.8 380
30 0.9 0.64 0.3 1.7 19.9 570
50 0.9 0.64 0.3 1.9 25.4 920
100 0.9 0.64 0.3 2 35.5 1820
SHIELDED
2(0) 0.9 0.64 0.3 1.3 6.2 50
5 0.9 0.64 0.3 1.4 9.9 125
10 0.9 0.64 0.3 1.5 13.5 215
20 0.9 0.64 0.3 1.6 17.3 390
30 0.9 0.64 0.3 1.7 20.4 580
50 0.9 0.64 0.3 1.9 25.9 940
100 0.9 0.64 0.3 2 36 1850

10p X 24awg Multi Pair Instrument Cable 10 Pairs FEP Sensor Cable 0

10p X 24awg Multi Pair Instrument Cable 10 Pairs FEP Sensor Cable 1

10p X 24awg Multi Pair Instrument Cable 10 Pairs FEP Sensor Cable 2
