Multi Cores Instrumentation Cable Fire Resistant Cable 300/500V CU/MGT/XLPE/OS/FR/LSZH/GSWA/LSZH 4х1

Brand Name:	Dingzun Cable
Model Number:	DZ219
MOQ:	200M
Price:	1M/0.5~5USD
Packaging Details:	Carton Packing / Drum Packing
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai, China

Certification:

CE CCC

Conductor:

Bare Copper 32/0.20 IEC60228-5

Fire Barrier:

MGT

Insulation:

XLPE

Wire Diameter:

3.10 Mm

Cores/Pairs:

4cores Stranded

Overall Shield:

Aluminum Foil And Tinned Copper Drain Wire 7/0.30

Wrapping:

MGT

Inner Jacket:

LSZH Blk Thick. 0.90mm

Armor:

SWA Galvanized Steel Wire

Outer Jacket:

LSZH Gry Thick. 1.30mm

Rated Voltage:

300/500V

Test Voltage:

1.5kv / 5min

Conductor Resistance:

18.3Ω/km At 20℃

Feature:

Low Smoke Halogen Free

Supply Ability:

10000M/1DAYS

Highlight:

Fire Resistant Instrumentation Cable

500V Instrumentation Cable

LSZH 4х1 Instrumentation Cable

Product Description

Multi-Core Fire-Resistant Instrumentation Cable 300/500V CU/MGT/XLPE/OS/FR/LSZH/GSWA/LSZH 4×1.0mm²
Engineered for Critical Signal Integrity in Extreme Fire Conditions

Product Overview
Designed for mission-critical applications, our 4-core fire-resistant instrumentation cable ensures uninterrupted signal transmission even in direct fire exposure. With 4×1.0mm² tinned copper conductors, this cable combines advanced fire survival technology with robust mechanical protection for hazardous environments.

Key Features
✔ Fire-Resistant Performance
- Maintains circuit integrity for 120+ minutes at 950°C (IEC 60331 compliant)
- Dual-layer LSZH sheathing minimizes smoke and toxic gas emission (IEC 60754)

✔ Enhanced Signal Protection
- Multicore grounding tape (MGT) + overall screening (OS) for superior EMI/RFI shielding
- XLPE insulation ensures stable dielectric properties under extreme temperatures (-40°C to +90°C)

✔ Military-Grade Durability
- Galvanized steel wire armor (GSWA) provides crush resistance (2000N) and rodent protection
- Corrosion-resistant tinned copper conductors

Technical Specifications
- Voltage Rating: 300/500V
- Conductor: Class 2 tinned copper (4×1.0mm²)
- Flame Propagation: IEC 60332-3 Cat A certified
- Smoke Density: ≤60% (IEC 61034)
- Bending Radius: 6× cable diameter

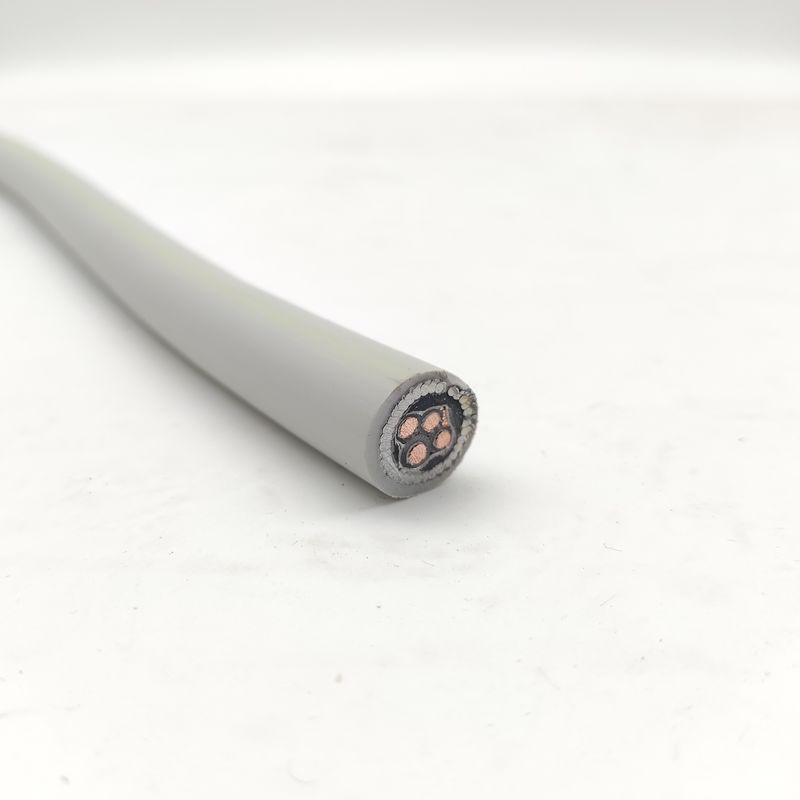

Multi Cores Instrumentation Cable Fire Resistant Cable 300/500V CU/MGT/XLPE/OS/FR/LSZH/GSWA/LSZH 4х1 0

Applications
- Emergency shutdown systems in oil/gas plants
- Fire alarm circuits in high-rise buildings
- Nuclear power plant safety controls
- Tunnel and metro evacuation systems

Certifications
- IEC 60331 (Fire resistance)
- EN 50200 (PH120)
- IEC 60502-1 (Construction)

Why Choose This Fire Resistant Cable ?
When failure is not an option, our 4-core fire-resistant cable delivers:
1) Guaranteed signal continuity during fires
2) Zero toxic emissions for safe evacuation
3) Armored protection against mechanical damage
