| Place of Origin | shanghai |
| Brand Name | dingzun |
| Certification | ul |
| Model Number | y-36 |

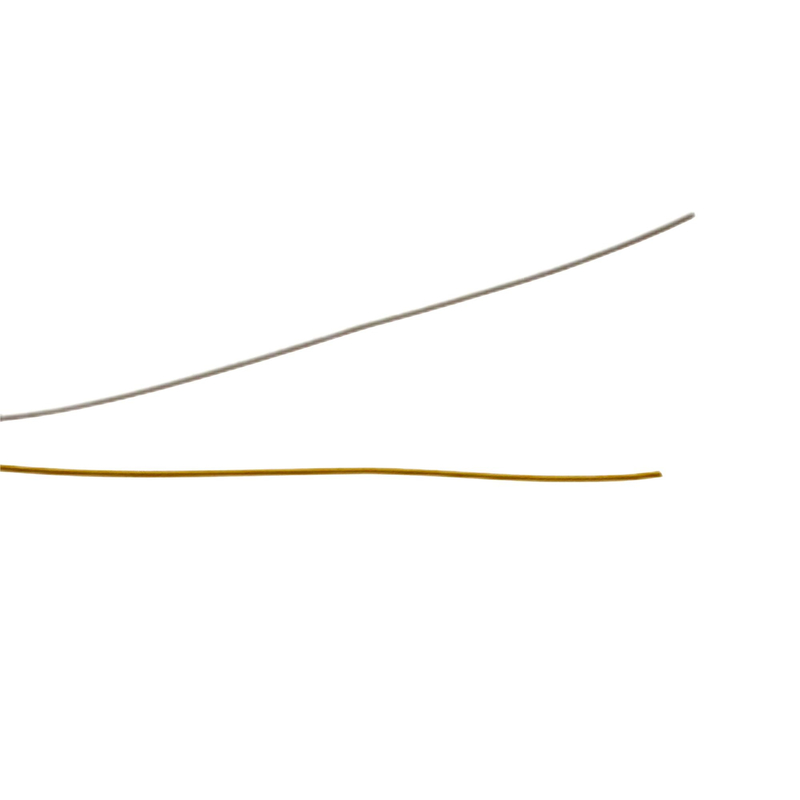

Description: High temperature wire ETFE 24 awg UL10126
Conductor: Nickel plated copper
Construction: 24AWG
O.D.:1.10-1.22MM
VOLTAGE: 2.5KVAC
ETFE wire is a kind of high temperature wire. ETFE wire insulation has extraordinary thermal stability, so that ETFE cable can adapt to 150~200℃ high temperature environment. However, the common PE and PVC cables are only suitable for working environment of 70~90℃. Because of this high temperature resistance characteristic, ETFE cable is suitable for extremely harsh service environment. In order to meet customers’ requirement, we supply different high temperature ETFE wire sizes. Therefore, you can buy 36 awg – 6 awg ETFE cable Dingzun. As a professional high temperature wire manufacturer, we can give you best heat resistant ETFE wire price.
| ARMORED CABLE | ||||||||
| PAIRS | nominal conductor diameter | nominal insulation thickness | inner thickness | inner diameter | armor steel diameter | Jacjet thickness | Max. Overall Diameter | estimated weight |
| pairs | mm | mm | mm | mm | mm | mm | mm | Kg/Km |
| 2(0) | 0.9 | 0.3 | 0.8 | 5.7 | 0.9 | 1.3 | 10.1 | 200 |
| 5 | 0.9 | 0.3 | 1 | 9.4 | 0.9 | 1.4 | 14.1 | 370 |
| 10 | 0.9 | 0.3 | 1.1 | 13 | 1.25 | 1.5 | 18.6 | 610 |
| 20 | 0.9 | 0.3 | 1.2 | 16.8 | 1.25 | 1.6 | 22.7 | 930 |
| 30 | 0.9 | 0.3 | 1.4 | 19.9 | 1.6 | 1.7 | 26.7 | 1390 |
| 50 | 0.9 | 0.3 | 1.6 | 25.4 | 1.6 | 1.9 | 32.6 | 1940 |
| 100 | 0.9 | 0.3 | 1.9 | 35.5 | 2 | 2 | 44.1 | 3700 |
| SHIELDED | ||||||||
| 2(0) | 0.9 | 0.3 | 0.8 | 6.2 | 0.9 | 1.3 | 10.6 | 220 |
| 5 | 0.9 | 0.3 | 1 | 9.9 | 0.9 | 1.4 | 14.6 | 380 |
| 10 | 0.9 | 0.3 | 1.1 | 13.5 | 1.25 | 1.5 | 19.1 | 630 |
| 20 | 0.9 | 0.3 | 1.2 | 17.3 | 1.25 | 1.6 | 23.2 | 955 |
| 30 | 0.9 | 0.3 | 1.4 | 20.4 | 1.6 | 1.7 | 27.2 | 1415 |
| 50 | 0.9 | 0.3 | 1.6 | 25.9 | 1.6 | 1.9 | 33.1 | 2000 |
| 100 | 0.9 | 0.3 | 1.9 | 36 | 2 | 2 | 44.6 | 3750 |
| NON-ARMORED CABLE | ||||||||
| pairs | nominal conductor diameter | section area | insulation thickness | jacket thickness | Max. Overall Diameter | estimated weight | ||
| pairs | mm | mm2 | mm | mm | mm | Kg/Km | ||
| NON-SHIELDED | ||||||||
| 2(0) | 0.9 | 0.64 | 0.3 | 1.3 | 5.7 | 45 | ||
| 5 | 0.9 | 0.64 | 0.3 | 1.4 | 9.4 | 115 | ||
| 10 | 0.9 | 0.64 | 0.3 | 1.5 | 13 | 205 | ||
| 20 | 0.9 | 0.64 | 0.3 | 1.6 | 16.8 | 380 | ||
| 30 | 0.9 | 0.64 | 0.3 | 1.7 | 19.9 | 570 | ||
| 50 | 0.9 | 0.64 | 0.3 | 1.9 | 25.4 | 920 | ||
| 100 | 0.9 | 0.64 | 0.3 | 2 | 35.5 | 1820 | ||
| SHIELDED | ||||||||
| 2(0) | 0.9 | 0.64 | 0.3 | 1.3 | 6.2 | 50 | ||
| 5 | 0.9 | 0.64 | 0.3 | 1.4 | 9.9 | 125 | ||
| 10 | 0.9 | 0.64 | 0.3 | 1.5 | 13.5 | 215 | ||
| 20 | 0.9 | 0.64 | 0.3 | 1.6 | 17.3 | 390 | ||
| 30 | 0.9 | 0.64 | 0.3 | 1.7 | 20.4 | 580 | ||
| 50 | 0.9 | 0.64 | 0.3 | 1.9 | 25.9 | 940 | ||
| 100 | 0.9 | 0.64 | 0.3 | 2 | 36 | 1850 | ||
