| Place of Origin | China |
| Brand Name | Dingzun |
| Certification | UL,CE,ISO9001 |
| Model Number | Z-24 |
Z-24

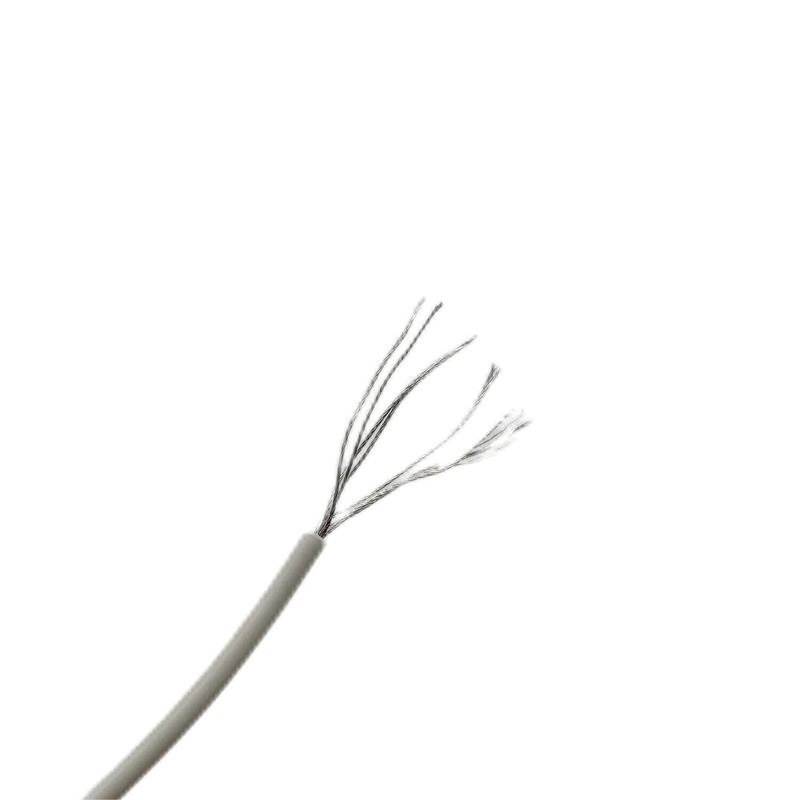

Description: 0.1 MICRO SILVER COPPER SILICONE WIRE CUSTOM
Details:SIF SIFE
Conductor: silver plated copper 0.1 micro
Construction: 7*7/0.10, 7*9/0.10
Insulation: silicone rubber
O.D. 1.9mm/2.1mm
Rated Voltage: 300V
Rated Temperature: -60℃ ---+200℃
Type:silicone wire
This wire is requested by an Indian Client, and with special requirement for the silver plating thickness as 1.0 micro, normally Chinese factory use 0.7 micro silver plating, but our client insist on 1 micro thickness maybe for high accuracy equipment or military use.
We did several times plating, to complete the sample, and bulk order, as Dingzun Cable has the strong technique on which we can reply for accepting various kinds of requirements.
The wire is white, so factory need to be very careful for keeping clean during production. Silicone sheath has been widely used thanks to its super flexibility and excellent heat resistance.
