2 Pairs Double Shielded Signal Cable FEP Insulation
  • 2 Pairs Double Shielded Signal Cable FEP Insulation
  • 2 Pairs Double Shielded Signal Cable FEP Insulation
  • 2 Pairs Double Shielded Signal Cable FEP Insulation
  • 2 Pairs Double Shielded Signal Cable FEP Insulation

2 Pairs Double Shielded Signal Cable FEP Insulation

Place of Origin China
Brand Name Dingzun
Certification UL,CE,ISO9001
Model Number Z-79a
Product Details
Conductor Material:
TINNED COPPER
Stranded:
STRANDED
Construction:
0.5MM2
Insulation:
FEP
Shield:
AL FOIL + DRAIN WIRE
Armor:
TINNED COPPER WIRE BRAID
SHEATH:
SILICONE
Temperature:
200c
Voltage:
300V
Application:
MULTI PAIR
High Light:

2 Pairs Shielded Signal Cable

,

FEP Insulation Double Shielded Signal Cable

,

Double Shielded Multi Pair Instrument Cable

Product Description

Z-79A

2 PAIRS DOUBLE SHIELDED SIGNAL CABLE

Details:

Conductor: tinned copper class6
Section Area: 0.5mm2
Construction: 100/0.08
Pairs: 2
Twisted: required
Insulation: FEP
Shield1: Al Foil +tinned copper braided
Filler: cotton cord
Binder: polyester Tape
Shield2: tinned copper braided
Coverage: more than 90%
O.D.: 9.6mm
Type: signal cable

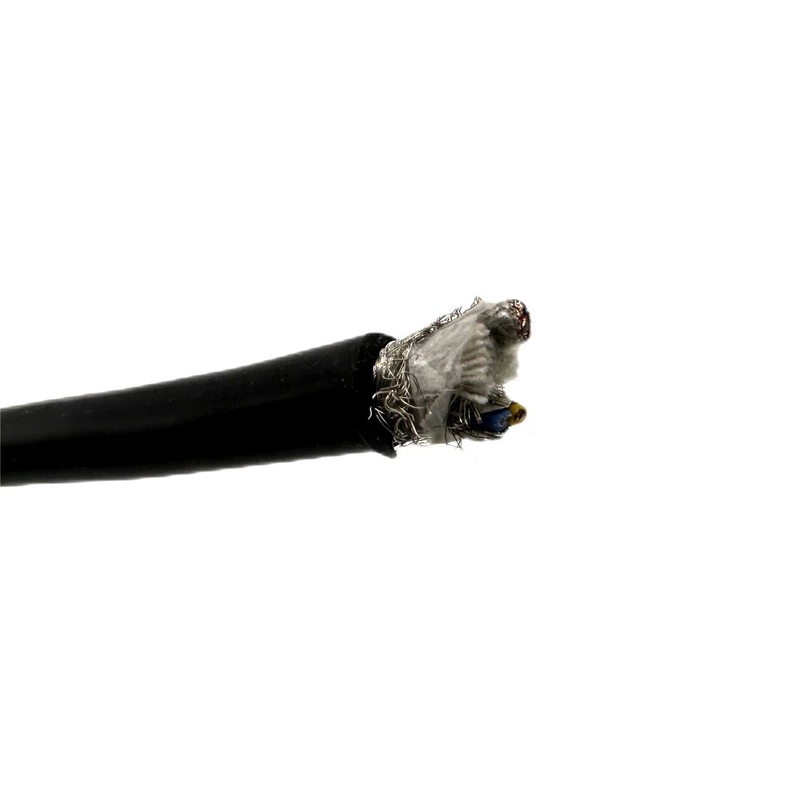

2 PAIRS DOUBLE SHIELDED SIGNAL CABLE is a special signal cable, which need double shielded to make sure the signal can be transmitted without any disturb and loss.
For the shield, we have used al foil for wrapping the twisted pair, the twisted pitch is very important which closely related to the attenuation index. Every pair we also used the TC wire braiding to avoid the noise from neighbor pair. And afterwards, we use an overall shield i.e. same TC wire braid to separate the outside environmental noise. Therefore, with multi shield layer, our cable can get the signal without loss and clutter interference.

For this cable, client need movable installation, so we designed fep as insulation to decrease the diameter, meanwhile, we use 100/0.08 construction to assure the flexibility, class6 conductor is adopted to apply for this kind of cable. Silicone as the outer jacket, so the whole cable is very soft and of low min. bending radius. Furthermore, fep, silicone combination provides the possibility for high temperature environment use.
