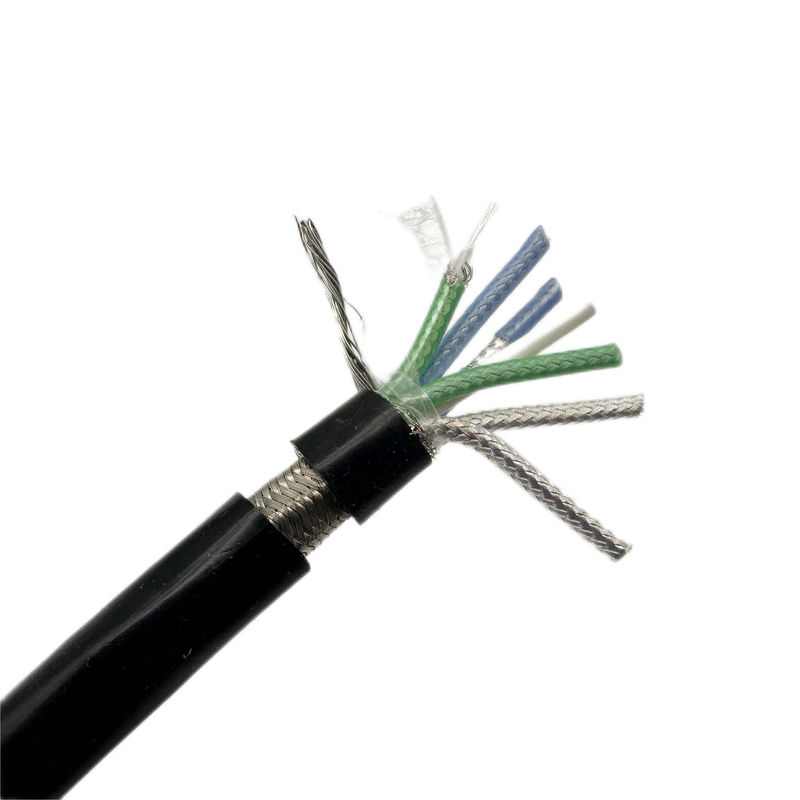

3 Pairs Multi Pair Control Cable PVC Control Cable 0.5mm2 Multi Pair Control Cable
  • 3 Pairs Multi Pair Control Cable PVC Control Cable 0.5mm2 Multi Pair Control Cable
  • 3 Pairs Multi Pair Control Cable PVC Control Cable 0.5mm2 Multi Pair Control Cable
  • 3 Pairs Multi Pair Control Cable PVC Control Cable 0.5mm2 Multi Pair Control Cable
  • 3 Pairs Multi Pair Control Cable PVC Control Cable 0.5mm2 Multi Pair Control Cable

3 Pairs Multi Pair Control Cable PVC Control Cable 0.5mm2 Multi Pair Control Cable

Place of Origin shanghai
Brand Name dingzun
Certification ul
Model Number y-104
Product Details
BRAND:
Dingzun
C/O:
CHINA
Conductor:
Tinned Copper
Stranded:
Stranded
Construction:
3P*0.2MM2
Insulation:
PVC
Shield:
YES
Armor:
YES
SHEATH:
PVC
Temperature:
90C
Voltage:
600V
Packing:
100M/ROLL
Application:
CONTROL CABLE
CORES:
3PAIRS
High Light:

PVC Multi Pair Control Cable

,

0.5mm2 Multi Pair Control Cable

,

multi pair control cable

Product Description

Description: 3prx0.5mm2 PVC control Cable

Conductor: tinned copper
Construction: 0.5mm2
Pairs: 3
Pair twisted: required
Insulation: PVC
Shield: tinned copper braid
Jacket: PVC
Rated temperature: 105℃
Rated Voltage: 300V
Type multi pair control cable


This cable is designed for use in control applications where reliable signal transmission is required. The cable has three pairs of conductors, each made of tinned copper with a construction of 0.5mm2, providing excellent conductivity and stability in signal transmission. Each pair of conductors is twisted to reduce crosstalk and improve signal quality.

The insulation material used is PVC, which provides excellent electrical insulation and resistance to mechanical stress. The cable is shielded with a tinned copper braid shield, which provides excellent EMI/RFI protection, ensuring that the signal remains clean and stable even in the presence of external electromagnetic interference.

The jacket is made of PVC, which provides additional mechanical protection to the conductors. The cable is rated for a temperature of 105℃ and a voltage of 300V, making it suitable for use in a variety of control applications.

The cable is rated as a multi-pair control cable, which means it can be used to transmit multiple signals simultaneously, making it ideal for use in applications where multiple signals need to be transmitted.

Overall, this 3prx0.5mm2 PVC control cable is a reliable, high-performance cable that can be used in a variety of control applications where signal integrity and accuracy are crucial. Its combination of high-quality materials, shielding, and insulation make it an excellent choice for use in demanding environments where the cable may be exposed to mechanical stress and interference.



                                                                ARMORED CABLE

PAIRS nominal conductor diameter nominal insulation thickness inner thickness inner diameter armor steel diameter Jacjet thickness Max. Overall Diameter estimated weight
pairs mm mm mm mm mm mm mm Kg/Km
2(0) 0.9 0.3 0.8 5.7 0.9 1.3 10.1 200
5 0.9 0.3 1 9.4 0.9 1.4 14.1 370
10 0.9 0.3 1.1 13 1.25 1.5 18.6 610
20 0.9 0.3 1.2 16.8 1.25 1.6 22.7 930
30 0.9 0.3 1.4 19.9 1.6 1.7 26.7 1390
50 0.9 0.3 1.6 25.4 1.6 1.9 32.6 1940
100 0.9 0.3 1.9 35.5 2 2 44.1 3700
SHIELDED
2(0) 0.9 0.3 0.8 6.2 0.9 1.3 10.6 220
5 0.9 0.3 1 9.9 0.9 1.4 14.6 380
10 0.9 0.3 1.1 13.5 1.25 1.5 19.1 630
20 0.9 0.3 1.2 17.3 1.25 1.6 23.2 955
30 0.9 0.3 1.4 20.4 1.6 1.7 27.2 1415
50 0.9 0.3 1.6 25.9 1.6 1.9 33.1 2000
100 0.9 0.3 1.9 36 2 2 44.6 3750
                                                                NON-ARMORED CABLE

pairs nominal conductor diameter section area insulation thickness jacket thickness Max. Overall Diameter estimated weight
pairs mm mm2 mm mm mm Kg/Km
NON-SHIELDED
2(0) 0.9 0.64 0.3 1.3 5.7 45
5 0.9 0.64 0.3 1.4 9.4 115
10 0.9 0.64 0.3 1.5 13 205
20 0.9 0.64 0.3 1.6 16.8 380
30 0.9 0.64 0.3 1.7 19.9 570
50 0.9 0.64 0.3 1.9 25.4 920
100 0.9 0.64 0.3 2 35.5 1820
   SHIELDED
2(0) 0.9 0.64 0.3 1.3 6.2 50
5 0.9 0.64 0.3 1.4 9.9 125
10 0.9 0.64 0.3 1.5 13.5 215
20 0.9 0.64 0.3 1.6 17.3 390
30 0.9 0.64 0.3 1.7 20.4 580
50 0.9 0.64 0.3 1.9 25.9 940
100 0.9 0.64 0.3 2 36 1850
