Thermocouple Cable Type T – PVC Laid Flat 1 Pair 20AWG Temperature Measuring Cable
Type T Thermocouple Cable – 20 AWG Solid Conductor, PVC Insulation, Laid Flat Construction, Ultra Fine 1 Pair Temperature Measuring Cable, Conductor: Copper (+) and Constantan (-) Solid, Insulation: PVC Compound, Construction: 2 Cores Laid Flat, Overall Sheath: PVC Compound, Temperature Range: -10°C ...

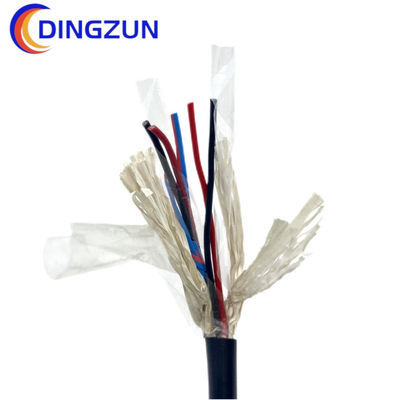

Dingzun Cable 2 Pairs Thermocouple Type KXVV Pvc Insulation Cable
Y-16 Description: KXVV thermocouple 2 pairs* 18 awg sensor cable Conductor (+): Ni/Si Conductor (-): Ni/Al Insulation: PVC Filling: Paper Jacket PVC Pairs: 2 Multi pair thermocouple Cable for instrument is very popular for modern industry. We got this inquiry and design the construction, type K is ...
Dingzun Thermocouple Kapton Insulation Polyimide Jacket Type K Wire
Y-48 Description: type K thermocouple wire with Kapton insulation and polyimide wrapping Thermocouple type: K Conductor (+): Ni/Cr Conductor (-): Ni/Al Construction: 7/0.2 Section: 0.2mm2 Insulation Kapton = PTFE Insulation Color: red, yellow Wrapping: double polyimide Polyimide color: gold Rating ...
Dingzun Thermocouple Kapton Insulation Polyimide Jacket Type E Wire
Description: type K thermocouple wire with Kapton insulation and polyimide wrapping Thermocouple type: K Conductor (+): Ni/Cr Conductor (-): Ni/Si Construction: 7/0.2 Section: 0.2mm2 Insulation Kapton = PTFE Insulation Color: red, black Wrapping: double polyimide Normally, we use thermocouple to ...
Dingzun Type K 2 X 1 / 0.65mm2 Thermocouple Wire For Temperature Control
Because when using thermocouple temperature measurement, the reference end temperature of the thermocouple must be kept constant, otherwise the measurement error introduced in the temperature measurement will be a big variable, will affect the accuracy of temperature measurement. However, in field ...
Dingzun Type T 2 X 1 / 0.32mm2 Thermocouple Wire For Temperature Measuring
How to distinguish J, T and K thermocouple lines Thermocouple wire is used to connect the cold end of the thermocouple to the display instrument in the control room to compensate the temperature of the cold end. And because of the variety of thermocouple, different models of thermocouple should be ...
Dingzun Type T 2 X 1 / 0.65mm2 Thermocouple Wire For Temperature Sensors
T-type thermocouple, also known as copper-copper thermocouple (copper/nickel copper thermocouple, degree number T, measuring range -200~+350℃), is also one of the best low temperature measurements of cheap metal thermocouple. Next, tell you in detail the temperature range and accuracy of t ...
Dingzun 2 X 0.5mm2 Type J Ptfe Insulation Thermocouple Cable For Temperaturing Measuring
J-type thermocouple temperature range J type thermocouple), also known as iron-copper thermocouple, is also a cheap metal thermocouple. The nominal chemical composition of its positive electrode (JP) is pure iron, and the nominal chemical composition of its negative electrode (JN) is copper-nickel ...
Heavy Duty Type K Steel Braided Thermocouple Cable
The Type K thermocouple cable is a thermocouple extension wire with a steel braided jacket. Here are the key specifications: Brand: Dingzun Origin: China Application: Thermocouple Type: Thermocouple extension wire Rated temperature: -20 to 90 degrees Celsius Rated voltage: 300V Conductor: (+) white: ...
