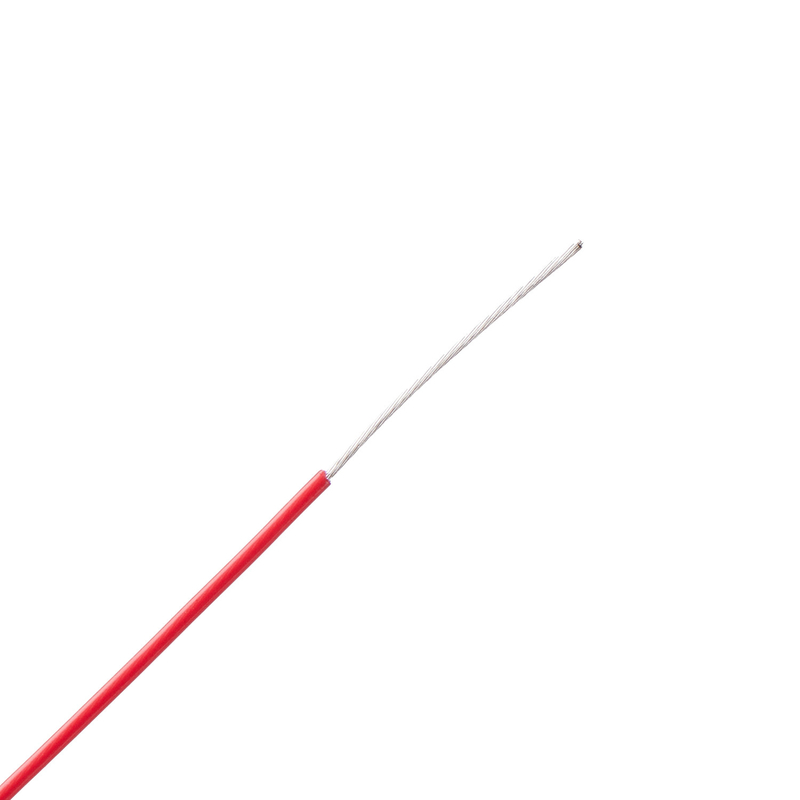

UL1727 PFA High Temperature Cable For Instrumentation

Place of Origin China
Brand Name Dingzun
Certification UL,CE,ISO9001
Model Number 02-08
Product Details
Product Name::
Conductor Material::
Tinned Copper /Silver Copper/Nickel Copper
Insulation Material::
Rated Temperature::
Rated Voltage:
Solid Or Stranded
Strict Inspection Personnel And Promotion
Can Be Provided For Evaluating
High Light:

UL1727 High Temperature Cable


PFA High Temperature Wire


High Temperature Cable ISO9001

Product Description

Rated Temperature:-80℃∽+250℃
Rated Voltage:600V
Conductor: 26AWG-6AWG solid/stranded Tinned Copper /Silver Copper/Nickel Copper
Color: red, yellow, blue, white, black, green, brown, orange, purple, yellow green, transparent etc.
Certificate/Standard: UL785-2000
Application: widely used in electronic appliances, lighting, instrumentation


Voltage Rating 300v

Test Voltage 2000V

Insulated: FEP flubon material

Temperature Rating Fixed: -100°C to +200°C

Conductor:Tinned copper


It is electric wires that extruded and covered with FEP resin over tin coated annealed copper wire,silver plated annealed copper,etc.


It is representative product of the fluorocarbon resin insulated wires and it is excellent i electrical charactristics. Heat-reistance,freezing resistance,chemical resistance,fire resistance,etc.

Application range
For use in environments with very high operating temperatures, heavy usage of chemical agents or confined spaces
Typical fields of application
- Control cabinets with high heat
- Measuring instruments
- Furnaces and brickworks
- Heating equipment and kitchen
- Electric motor building
- Installations in the chemical industry









Avg. Insulation Thickness


Min. Insulation Thickness


Overall Dia.


Max. Resistance


26 0.13 7/0.16 0.51 0.45 1.50 150
    1/0.41 0.51 0.45 1.43 143
24 0.22 7/0.20 0.51 0.45 1.62 94.2
    19/0.12 0.51 0.45 1.62 89.3
22 0.33 7/0.25 0.51 0.45 1.77 56.4
    19/0.15 0.51 0.45 1.77 59.4
20 0.5 7/0.32 0.51 0.45 1.98 35.2
    19/0.18 0.51 0.45 1.92 36.7
18 0.8 7/0.40 0.51 0.45 2.22 23.2
    19/0.23 0.51 0.45 2.17 24.6
16 1.3 19/0.30 0.51 0.45 2.52 14.6
14 2 19/0.37 0.51 0.45 2.87 8.96
12 3.3 19/0.48 0.51 0.45 3.42 5.64
10 5.3 37/0.43 0.51 0.45 4.03 3.546
9 6.5 37/0.48 0.76 0.65 3.92 3.12
8 8.2 133/0.28 0.76 0.65 5.72 2.16
7 10 133/0.32 0.76 0.65 6.32 1.68
6 13 133/0.36 0.76 0.65 6.92 1.45
Remarks: more AWG available, pls. contact us
