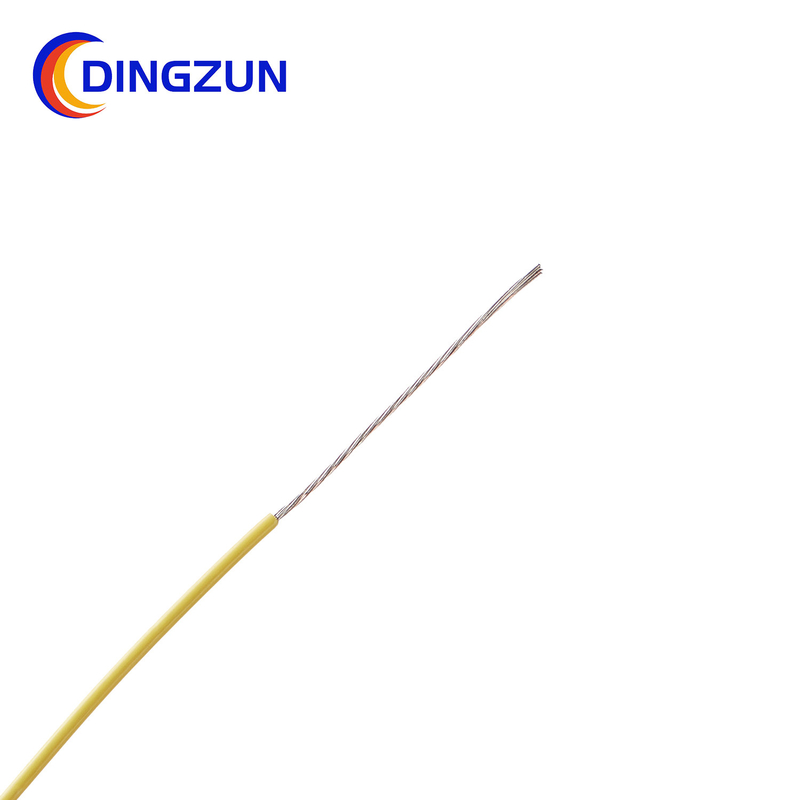

HEAT 260 UL1570 PTFE High Temperature Wire 15 AWG For Lighting
  • HEAT 260 UL1570 PTFE High Temperature Wire 15 AWG For Lighting
  • HEAT 260 UL1570 PTFE High Temperature Wire 15 AWG For Lighting
  • HEAT 260 UL1570 PTFE High Temperature Wire 15 AWG For Lighting
  • HEAT 260 UL1570 PTFE High Temperature Wire 15 AWG For Lighting
  • HEAT 260 UL1570 PTFE High Temperature Wire 15 AWG For Lighting
  • HEAT 260 UL1570 PTFE High Temperature Wire 15 AWG For Lighting
  • HEAT 260 UL1570 PTFE High Temperature Wire 15 AWG For Lighting

HEAT 260 UL1570 PTFE High Temperature Wire 15 AWG For Lighting

Place of Origin China
Brand Name Dingzun
Certification UL,CE,ISO9001
Model Number 03-09
Product Details
Product Name::
UL1570 PTFE HIGH TEMPERATURE WIRE
Conductor Material:
Silver Copper/Nickel Copper
Insulation Material::
PTFE
Rated Temperature:
-80℃~+250℃
Rated Voltage::
600V
Size:
30AWG-10AWG
Type:
Solid And Stranded
OEM:
We Can Produce Any Your Designs
Sample:
Can Be Provided For Evaluating
Inspection:
Strict Inspection Personnel And Promotion
High Light:

UL1570 High Temperature Wire

,

ptfe teflon wire ISO

,

High Temperature Wire 15 AWG

Product Description

DingZun Cable Fast Delivery UL1570 PTFE High Temperature Wire for Lightin

Details:HEAT 260

Semi - extrusion processing, good wiring harness processing performance

Good compatibility in wiring harness processing, designed according to UL standard

In line with RoHS, REACH, non-toxic

It is suitable for occasions with temperature not exceeding 250℃

Technical Parameters

Rated Temperature:-80℃∽+250℃

Rated Voltage:600V

Conductor:30AWG-10AWG solid/stranded Silver Copper/Nickel Copper

Insulation:PTFE Teflon

Color: red, yellow, blue, white, black, green, brown, orange, purple, yellow green, off white etc.

Certificate/Standard: UL-785

Application: widely used in electronic appliances, lighting, instrumentation



AWG

Section

(mm2)

Conductor No./Dia.

(mm)

Avg. Insulation Thickness

(mm)

Min. Insulation. Dia.

(mm)

Overall Dia.

(mm)

Max. Resistance

20℃(≤Ω/km)

30 0.05 7/0.10 0.33 0.30 0.96 381
1/0.26 0.33 0.30 0.92 361
28 0.08 7/0.12 0.33 0.30 1.02 239
1/0.32 0.33 0.30 0.98 227
26 0.13 7/0.16 0.33 0.30 1.14 150
1/0.41 0.33 0.30 1.07 143
24 0.22 7/0.20 0.33 0.30 1.26 94.2
19/0.12 0.33 0.30 1.26 89.3
22 0.33 7/0.25 0.33 0.30 1.41 59.4
19/0.15 0.33 0.30 1.41 56.4
20 0.5 7/0.32 0.33 0.30 1.62 36.7
19/0.18 0.33 0.30 1.56 35.2
18 0.8 7/0.40 0.33 0.30 1.86 22.7
19/0.23 0.33 0.30 1.81 23.2
17 1 19/0.26 0.33 0.30 1.96 18.3
16 1.3 19/0.30 0.33 0.30 2.16 14.6
15 1.5 19/0.32 0.33 0.30 2.26 11.7
14 2 19/0.37 0.33 0.30 2.51 8.96
13 2.5 19/0.41 0.33 0.30 2.71 6.86
12 3.3 19/0.48 0.33 0.30 3.06 5.64
11 4 37/0.37 0.33 0.30 3.25 4.51
10 5.3 37/0.43 0.33 0.30 3.67 3.546
Remarks: able to produce according to customer’s requirement



1. Are you a manufacture or trading company?

We are a professional manufacture over 18 years, and our factory based in Shanghai. Warmly welcome to visit us.

2. Does your company accept OEM production?

Sure, our company policy is Order Oriented Customization, we could print your brand and produce according to your specification, if the minimum quantity achieved.

3. What about the lead time for mass production?

Our production capacity is sufficient, normally 10-20 days we can deliver your order, only if quantity is big, we’ll offer you specified delivery time.

4. What’s your minimum quantity?

Usually 100m, however cable is heavy product, the freight really costs, we suggest a reasonable quantity.

5. How can I get a sample to check your quality?

Samples are free for customer; you only need to pay the courier charge.

6. How does you company control the quality?

Our company has a team of experienced QC, who do in-line and finished goods inspection, we even got certificate of ISO9001. Our products have been certified by UL, CE, SGS, RoHS, CCC etc.
