High Temperature PTFE Shielded Cable

High Temperature PTFE Shielded Cable

  • High Light

    Electronics ptfe shielded cable

    ,

    High Temp copper electric cable

    ,

    High Temperature ptfe shielded cable

  • Produce Name
    AFR250 PTFE HIGH TEMPERATURE WIRE
  • Conductor Material
    Copper/Tinned Copper/Silver Copper
  • Insulation Material
    FEP
  • Rated Temperature
    -65℃~+250℃
  • Rated Voltage
    600V
  • Application
    Electronic Appliances
  • Conductor Type
    Solid Or Stranded
  • Inspection
    Strict Inspection Personnel And Promotion
  • OEM
    We Can Produce Any Your Designs
  • Sample
    Can Be Provided For Evaluating
  • Place of Origin
    China
  • Brand Name
    Dingzun
  • Certification
    UL,CE,ISO9001
  • Model Number
    03-02
  • Minimum Order Quantity
    500m
  • Price
    Negotiable
  • Packaging Details
    250M/ROLL PACKED IN CARTON
  • Delivery Time
    15DAYS
  • Payment Terms
    L/C, T/T
  • Supply Ability
    3000M/DAY

High Temperature PTFE Shielded Cable

Dingzun Cable Guaranteed Quality Copper Electric Cable AFR250 PTFE HIGH TEMPERATURE WIRE for Lighting

Feature

1. High and low temperature resistance

2. Aging resistance

3. Durable and Long service life

4. Flexible performance

5. Fire resistance

6. Anti-acid and alkali

7. Resistance to chemical solvents 8. High resistance of humidity 9. Excellent electric insulationerty.

Rated Temperature:-65℃∽+250℃

Rated Voltage:600V

Conductor:solid/stranded pure Copper/Tinned Copper/Silver Copper

Insulation:PTFE Teflon

Color: red, yellow, blue, white, black, green, brown, grey, purple, off white etc.

Feature: excellent corrosion resistance, oil resistance, strong acid, strong alkali resistance, strong oxidant, etc. Excellent electrical insulation performance, high voltage resistance, low loss at high frequency, no moisture absorption, large insulation resistance; It has excellent fire resistance, aging resistance and long service life.

Application: widely used in aviation electrical equipment, precision instruments, circuit boards, etc., in high temperature environment, as jumper, bridge line or extra-fine extra-soft wiring widely used in electronic appliances, lighting, instrumentation

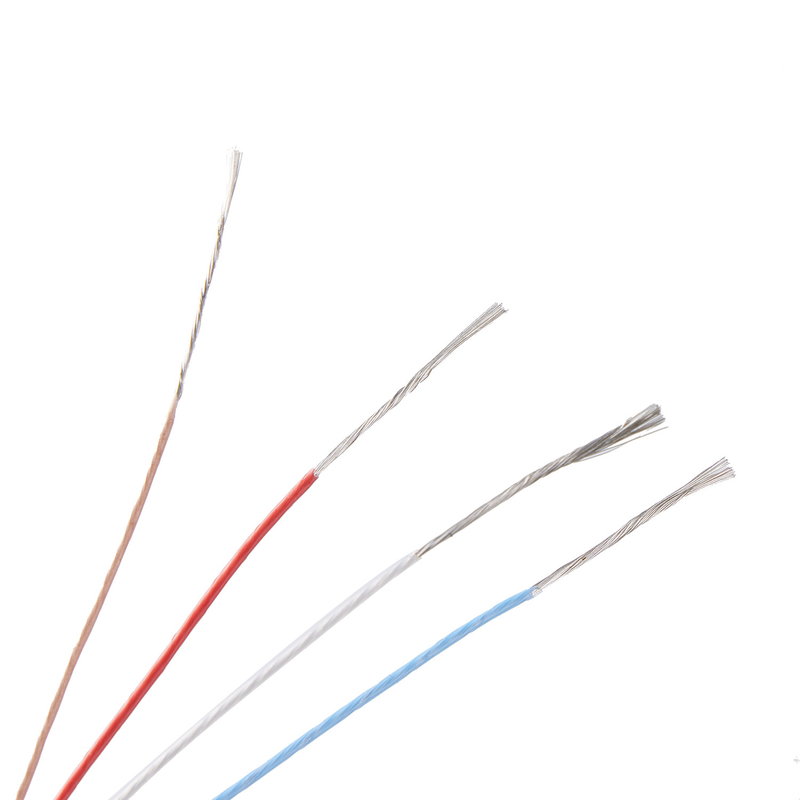

High Temperature PTFE Shielded Cable 0



Section

(mm2)

Conductor

No./Dia.
(mm)

Avg. Insulation Thickness

(mm)

Max. Overall Dia.(mm)
110V 250V 600V
0.013 7/0.05 0.15 0.38 0.49 0.71
0.035 7/0.08 0.24 0.47 0.58 0.81
0.06 7/0.10 0.30 0.55 0.65 0.87
0.08 7/0.12 0.36 0.60 0.70 0.93
0.10 7/0.14 0.42 0.70 0.83 1.00
0.14 7/0.16 0.50 0.73 0.85 1.05
0.20 7/0.20 0.60 0.85 0.97 1.30
0.35 7/0.25 0.80   1.20 1.50
0.5 7/0.30 0.90   1.30 1.60
0.8 7/0.37 1.10   1.65 1.85
1 19/0.26 1.30   1.88 2.00
1.2 19/0.28 1.40   1.95 2.15
1.5 19/0.32 1.60   2.15 2.35
Remarks: able to produce according to customer’s requirement

High Temperature PTFE Shielded Cable 1

Shanghai Dingzun Special Electric Wire and Cable Co., Ltd. as a high-tech enterprise was established in 2005, which engaged in special wire and cable research, development, design, manufacturing.



Shanghai Dingzun Special Electric Wire and Cable Co., Ltd. has strong technical force, existing staff 132 people, including senior titles of professional and technical personnel 26 people, with our own invention patent. We understand the technical standards and production standards of wire and cable of various countries in the world, can design and produce 6 categories, more than 800 types and specifications of wire and cable. The annual output reaches 70 million meters. The main products are high temperature resistant wire and cable, high voltage resistant wire and cable, shielded cable, coaxial cable, thermocouple compensation wire and other special wire and cable. Products are widely used in aerospace, electronic appliances, instrumentation, metallurgy and chemical industries, especially for high temperature, low temperature, strong acid, strong alkali, high oil, strong radiation and other harsh working environment.



Currently our company has two production workshops, nearly 5000 square meters of production space, equipped with 18 production lines of various types, 156 other auxiliary production equipment, 48 testing equipment, including 36 inline testing equipment. Complete testing equipment guarantee premium product quality, meanwhile strong production capacity ensures timely order delivery.

High Temperature PTFE Shielded Cable 2

The company has passed ISO9001:2015 international quality management system certification, our products have passed CCC compulsory certification in China, UL certification in the United States, CE certification in the European Union, and our products are sold to the United States, Europe, Japan and other countries and regions. Our system certification, product safety certification and global customers praise prove that our products are trustworthy. In addition, the wire and cable we produce also passed RoHS testing, in line with the environmental requirements of the European Union, we protect our common green home together with you.



According to customer requirements, we can also do custom design, production, to meet customer specific requirements of wire and cable, or according to customer construction drawings to make product customization.



Our production base is located in Shanghai, the largest commercial city in China, which can quickly and conveniently reach all countries of the world.

High Temperature PTFE Shielded Cable 3

Dingzun Cable connecting the whole world, outputting surging power, transferring the cooperation signal, shares opportunities and future.



1. Are you a manufacture or trading company?

We are a professional manufacture over 18 years, and our factory based in Shanghai. Warmly welcome to visit us.

2. Does your company accept OEM production?

Sure, our company policy is Order Oriented Customization, we could print your brand and produce according to your specification, if the minimum quantity achieved.

3. What about the lead time for mass production?

Our production capacity is sufficient, normally 10-20 days we can deliver your order, only if quantity is big, we’ll offer you specified delivery time.

4. What’s your minimum quantity?

Usually 100m, however cable is heavy product, the freight really costs, we suggest a reasonable quantity.

5. How can I get a sample to check your quality?

Samples are free for customer; you only need to pay the courier charge.

6. How does you company control the quality?

Our company has a team of experienced QC, who do in-line and finished goods inspection, we even got certificate of ISO9001. Our products have been certified by UL, CE, SGS, RoHS, CCC etc.
