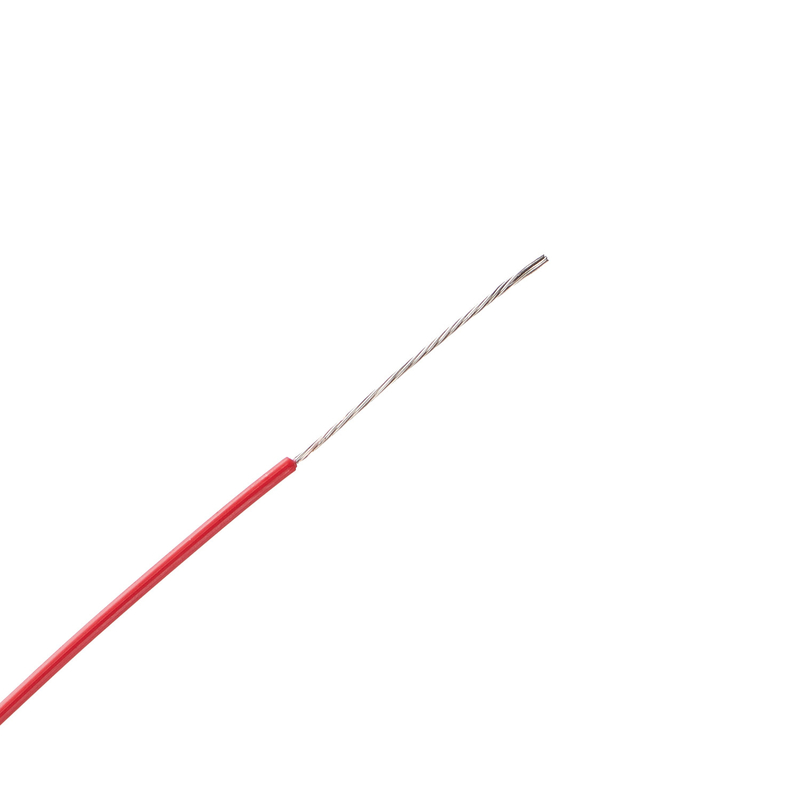

HEAT 260 250 degree PTFE military standard high temperature wire
Product Summary
Dingzun Cable Insulated High Temperature UL1815 PTFE High Temperature Wire For Instrumentation Details:HEAT 260 The UL1815 WIRE is a lightweight, COMPACT wire with extruded thin-WALLED PTFE INSULATION. PTFE insulation has excellent high temperature resistance, corrosion resistance, moisture ...
Instrumentation High Temperature PTFE Cable
,300V High Temperature Wire
,High Temperature PTFE Cable 30AWG
Dingzun Cable Insulated High Temperature UL1815 PTFE High Temperature Wire For Instrumentation
Details:HEAT 260
The UL1815 WIRE is a lightweight, COMPACT wire with extruded thin-WALLED PTFE INSULATION. PTFE insulation has excellent high temperature resistance, corrosion resistance, moisture resistance, aging resistance, wear resistance, flame retardant and other properties, but also has excellent thermal stability, chemical resistance, oxidation resistance and high reliability. The thin wall INSULATION of these wires limits their use to low voltage areas, making them ideal for internal wiring of electronic equipment and appliances.
Technical Parameters
Rated Temperature:-80℃∽+250℃
Rated Voltage:300V
Conductor:30AWG-10AWG solid/stranded Silver Copper/Nickel Copper
|
AWG |
Section (mm2) |
Conductor No./Dia. (mm) |
Avg. Insulation Thickness (mm) |
Min. Insulation. Dia. (mm) |
Overall Dia. (mm) |
Max. Resistance 20℃(≤Ω/km) |
| 30 | 0.05 | 7/0.10 | 0.33 | 0.30 | 0.96 | 381 |
| 1/0.26 | 0.33 | 0.30 | 0.92 | 361 | ||
| 28 | 0.08 | 7/0.12 | 0.33 | 0.30 | 1.02 | 239 |
| 1/0.32 | 0.33 | 0.30 | 0.98 | 227 | ||
| 26 | 0.13 | 7/0.16 | 0.33 | 0.30 | 1.14 | 150 |
| 1/0.41 | 0.33 | 0.30 | 1.07 | 143 | ||
| 24 | 0.22 | 7/0.20 | 0.33 | 0.30 | 1.26 | 94.2 |
| 19/0.12 | 0.33 | 0.30 | 1.26 | 89.3 | ||
| 22 | 0.33 | 7/0.25 | 0.33 | 0.30 | 1.41 | 59.4 |
| 19/0.15 | 0.33 | 0.30 | 1.41 | 56.4 | ||
| 20 | 0.5 | 7/0.32 | 0.33 | 0.30 | 1.62 | 36.7 |
| 19/0.18 | 0.33 | 0.30 | 1.56 | 35.2 | ||
| 18 | 0.8 | 7/0.40 | 0.33 | 0.30 | 1.86 | 22.7 |
| 19/0.23 | 0.33 | 0.30 | 1.81 | 23.2 | ||
| 17 | 1 | 19/0.26 | 0.33 | 0.30 | 1.96 | 18.3 |
| 16 | 1.3 | 19/0.30 | 0.33 | 0.30 | 2.16 | 14.6 |
| 15 | 1.5 | 19/0.32 | 0.33 | 0.30 | 2.26 | 11.7 |
| 14 | 2 | 19/0.37 | 0.33 | 0.30 | 2.51 | 8.96 |
| 13 | 2.5 | 19/0.41 | 0.33 | 0.30 | 2.71 | 6.86 |
| 12 | 3.3 | 19/0.48 | 0.33 | 0.30 | 3.06 | 5.64 |
| 11 | 4 | 37/0.37 | 0.33 | 0.30 | 3.25 | 4.51 |
| 10 | 5.3 | 37/0.43 | 0.33 | 0.30 | 3.67 | 3.546 |
| Remarks: able to produce according to customer’s requirement | ||||||
1. Are you a manufacture or trading company?
We are a professional manufacture over 18 years, and our factory based in Shanghai. Warmly welcome to visit us.
2. Does your company accept OEM production?
Sure, our company policy is Order Oriented Customization, we could print your brand and produce according to your specification, if the minimum quantity achieved.
3. What about the lead time for mass production?
Our production capacity is sufficient, normally 10-20 days we can deliver your order, only if quantity is big, we’ll offer you specified delivery time.
4. What’s your minimum quantity?
Usually 100m, however cable is heavy product, the freight really costs, we suggest a reasonable quantity.
5. How can I get a sample to check your quality?
Samples are free for customer; you only need to pay the courier charge.
6. How does you company control the quality?
Our company has a team of experienced QC, who do in-line and finished goods inspection, we even got certificate of ISO9001. Our products have been certified by UL, CE, SGS, RoHS, CCC etc.
