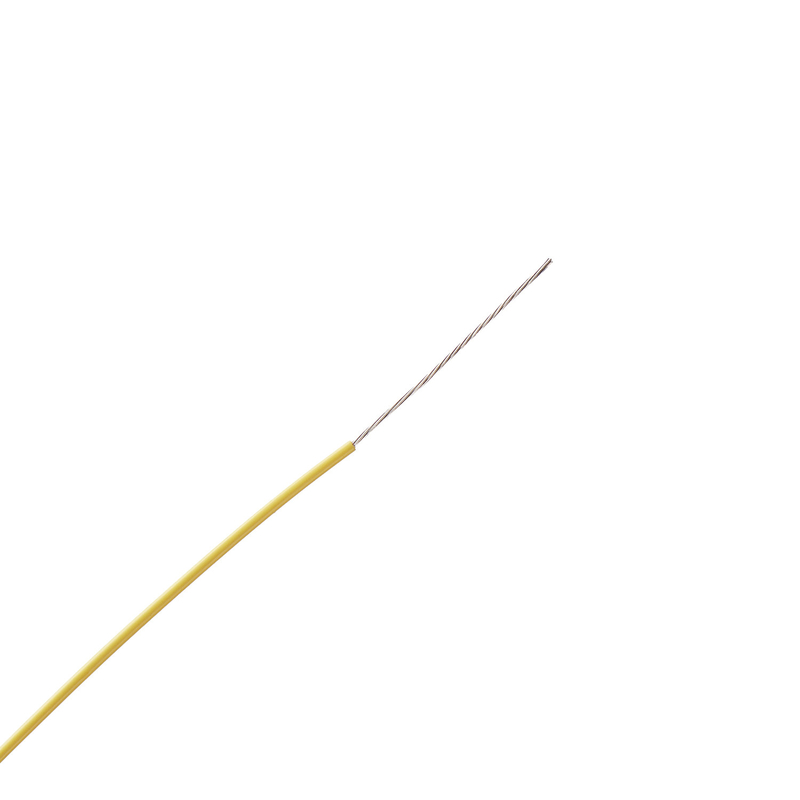

HEAT 260 Ultra Flexible UL1659 PTFE Silver Plated Stranded Copper Wire High Temperature
  • HEAT 260 Ultra Flexible UL1659 PTFE Silver Plated Stranded Copper Wire High Temperature
  • HEAT 260 Ultra Flexible UL1659 PTFE Silver Plated Stranded Copper Wire High Temperature
  • HEAT 260 Ultra Flexible UL1659 PTFE Silver Plated Stranded Copper Wire High Temperature
  • HEAT 260 Ultra Flexible UL1659 PTFE Silver Plated Stranded Copper Wire High Temperature
  • HEAT 260 Ultra Flexible UL1659 PTFE Silver Plated Stranded Copper Wire High Temperature
  • HEAT 260 Ultra Flexible UL1659 PTFE Silver Plated Stranded Copper Wire High Temperature
  • HEAT 260 Ultra Flexible UL1659 PTFE Silver Plated Stranded Copper Wire High Temperature

HEAT 260 Ultra Flexible UL1659 PTFE Silver Plated Stranded Copper Wire High Temperature

Place of Origin China
Brand Name Dingzun
Certification UL,CE,ISO9001
Model Number 03-11
Product Details
Product Name::
UL1659 PTFE HIGH TEMPERATURE WIRE
Conductor Material::
Silver Copper/Nickel Copper
Insulation Material:
PTFE
Rated Temperature:
-80℃~+250℃
Size:
30AWG-10AWG
Application:
Electronic Appliances
Rated Voltage:
600V
Type:
Solid And Stranded
Sample:
Can Be Provided For Evaluating
Inspection:
Strict Inspection Personnel And Promotion
High Light:

Silver Plated Stranded Copper Wire

,

UL1659 ultra flexible cable

,

PTFE Stranded Copper Wire

Product Description

DingZun Cable Ultra Flexible UL1659 PTFE High Temperature Wire for Electronic Appliances

Details:HEAT 260

Pfa is a copolymer of a small amount of perfluoropropyl perfluorovinyl ether and polytetrafluoroethylene. The melting cohesiveness is enhanced, the viscosity of the solution is decreased, and the properties are unchanged compared with PTFE. The resin can be directly processed into products by ordinary thermoplastic molding methods.

Main purpose of Pfa

1, suitable for the production of corrosion resistant parts, wear resistant parts, seals, insulation parts and medical instrument parts.

2, high temperature wire, cable insulation layer, anti-corrosion equipment, sealing materials, pump valve bushing, and chemical containers.

3, semiconductor manufacturing equipment, heat exchanger, steam piping, corrosive medium conveying pipe, wire and cable sheath, trough insulation pipe

Product model: UL1659
Implementation standard: UL758-2000
Product Features:
1. Rated voltage: 600V
2. Operating temperature: -80 ~ +250℃
3, guide body: solid core or stranded silver or nickel plated copper wire
4, no edge: PTFE teflon
5, color: red/yellow/blue/white/black/yellow green/brown, etc
Features/Uses:
Excellent corrosion resistance, oil resistance, strong acid resistance, strong alkali resistance, strong oxidant, etc. It has excellent electrical insulation performance, high voltage resistance, low high-frequency loss, no moisture absorption, large insulation resistance; It has excellent fire resistance, aging resistance and long service life.
In the electronic industry, it can be used for temperature compensation wire, low temperature resistant wire, high temperature heating wire, aging resistant wire and flame retardant wire; In the household electrical appliance industry, it can be used for the internal wiring of air conditioner, microwave oven, electronic disinfection cabinet, electric rice box, electronic thermos bottle, electric heater, electric oven, electric wok, lamps and lanterns.



AWG

Section

(mm2)

Conductor No./Dia.

(mm)

Avg. Insulation Thickness

(mm)

Min. Insulation. Dia.

(mm)

Overall Dia.

(mm)

Max. Resistance

20℃(≤Ω/km)

30 0.05 7/0.10 0.33 0.30 0.96 381
1/0.26 0.33 0.30 0.92 361
28 0.08 7/0.12 0.33 0.30 1.02 239
1/0.32 0.33 0.30 0.98 227
26 0.13 7/0.16 0.33 0.30 1.14 150
1/0.41 0.33 0.30 1.07 143
24 0.22 7/0.20 0.33 0.30 1.26 94.2
19/0.12 0.33 0.30 1.26 89.3
22 0.33 7/0.25 0.33 0.30 1.41 59.4
19/0.15 0.33 0.30 1.41 56.4
20 0.5 7/0.32 0.33 0.30 1.62 36.7
19/0.18 0.33 0.30 1.56 35.2
18 0.8 7/0.40 0.33 0.30 1.86 22.7
19/0.23 0.33 0.30 1.81 23.2
17 1 19/0.26 0.33 0.30 1.96 18.3
16 1.3 19/0.30 0.33 0.30 2.16 14.6
15 1.5 19/0.32 0.33 0.30 2.26 11.7
14 2 19/0.37 0.33 0.30 2.51 8.96
13 2.5 19/0.41 0.33 0.30 2.71 6.86
12 3.3 19/0.48 0.33 0.30 3.06 5.64
11 4 37/0.37 0.33 0.30 3.25 4.51
10 5.3 37/0.43 0.33 0.30 3.67 3.546
Remarks: able to produce according to customer’s requirement
