Electric Connecting High Temperature Cable Tinned Copper
  • Electric Connecting High Temperature  Cable Tinned Copper
  • Electric Connecting High Temperature  Cable Tinned Copper
  • Electric Connecting High Temperature  Cable Tinned Copper
  • Electric Connecting High Temperature  Cable Tinned Copper
  • Electric Connecting High Temperature  Cable Tinned Copper
  • Electric Connecting High Temperature  Cable Tinned Copper
  • Electric Connecting High Temperature  Cable Tinned Copper

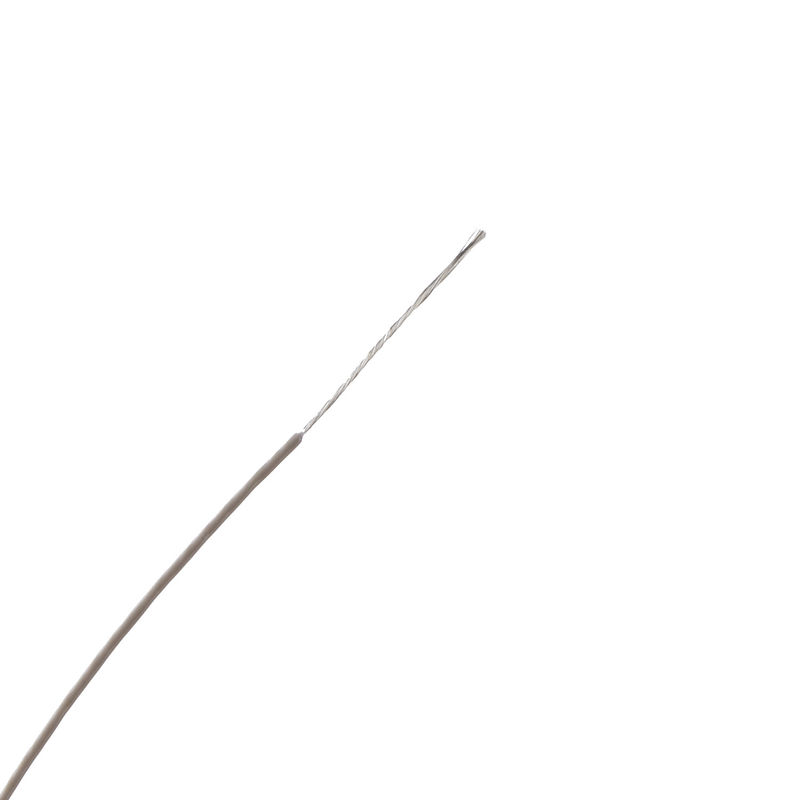

Electric Connecting High Temperature Cable Tinned Copper

Place of Origin China
Brand Name Dingzun
Certification UL,CE,ISO9001
Model Number 12-04
Product Details
Product Name::
FA25A HIGH TEMPERATURE WIRE
Conductor Material::
Tinned Copper
Insulation Material::
FLUOROPLASTIC
Rated Temperature::
-65℃~+250℃
Rated Voltage::
600V
Application:
Instrumentation
Type:
Solid And Stranded
OEM:
We Can Produce Any Your Designs
Sample:
Can Be Provided For Evaluating
Inspection:
Strict Inspection Personnel And Promotion
High Light:

High Temperature Cable 0.05 sq mm

,

solid copper wire

,

0.6mm High Temperature Cable

Product Description

Electric Connecting High Temperature Cable Tinned Copper

Rated Temperature:-65℃∽+250℃
Rated Voltage:600V
Conductor:Super Flexible High Purity Stranded Tinned Copper
Insulation:medical Fluoroplastic
Color: red, yellow, blue, white, black, green, brown, orange, purple,yellow green ,transparent etc.
Feature:high temperature resistance, low temperature resistance,bending resistance, oil resistance, acid/alkali resistance and flame retardant
Application:Widely used in medical apparatus,aviation, electronic industry,and electromechanical industry
.

Section

(mm2)

Conductor

(mm)

Avg.Insulation Thickness

(mm)

OD

(mm)

Max. Resistance

20℃

(≤Ω/km)

0.014 7/0.05 0.15 0.45 1454
0.030 16/0.05 0.15 0.50 590
0.035 19/0.05 0.15 0.55 568
7/0.08 0.15 0.55 568
0.05 26/0.05 0.15 0.60 356
10/0.08 0.15 0.60 356
0.07 37/0.05 0.20 0.70 260
19/0.07 0.20 0.70 260
14/0.08 0.20 0.70 260
0.08 42/0.05 0.20 0.78 245
21/0.07 0.20 0.78 245
16/0.08 0.20 0.78 245
0.12 63/0.05 0.25 0.95 160
32/0.07 0.25 0.95 160
24/0.08 0.25 0.95 160
0.20 105/0.05 0.25 1.10 90.4
56/0.07 0.25 1.10 90.4
42/0.08 0.25 1.10 90.4
0.35 182/0.05 0.25 1.30 53.10
96/0.07 0.25 1.30 53.10
70/0.08 0.25 1.30 53.10
0.50 259/0.05 0.25 1.40 36.7
133/0.07 0.25 1.40 36.7
105/0.08 0.25 1.40 36.7
Remarks: able to produce according to customer’s requirement


Shanghai Dingzun Special Electric Wire and Cable Co., Ltd. as a high-tech enterprise was established in 2005, which engaged in special wire and cable research, development, design, manufacturing.

Shanghai Dingzun Special Electric Wire and Cable Co., Ltd. has strong technical force, existing staff 132 people, including senior titles of professional and technical personnel 26 people, with our own invention patent. We understand the technical standards and production standards of wire and cable of various countries in the world, can design and produce 6 categories, more than 800 types and specifications of wire and cable. The annual output reaches 70 million meters. The main products are high temperature resistant wire and cable, high voltage resistant wire and cable, shielded cable, coaxial cable, thermocouple compensation wire and other special wire and cable. Products are widely used in aerospace, electronic appliances, instrumentation, metallurgy and chemical industries, especially for high temperature, low temperature, strong acid, strong alkali, high oil, strong radiation and other harsh working environment.

Currently our company has two production workshops, nearly 5000 square meters of production space, equipped with 18 production lines of various types, 156 other auxiliary production equipment, 48 testing equipment, including 36 inline testing equipment. Complete testing equipment guarantee premium product quality, meanwhile strong production capacity ensures timely order delivery.

The company has passed ISO9001:2015 international quality management system certification, our products have passed CCC compulsory certification in China, UL certification in the United States, CE certification in the European Union, and our products are sold to the United States, Europe, Japan and other countries and regions. Our system certification, product safety certification and global customers praise prove that our products are trustworthy. In addition, the wire and cable we produce also passed RoHS testing, in line with the environmental requirements of the European Union, we protect our common green home together with you.

According to customer requirements, we can also do custom design, production, to meet customer specific requirements of wire and cable, or according to customer construction drawings to make product customization.

Our production base is located in Shanghai, the largest commercial city in China, which can quickly and conveniently reach all countries of the world.

Dingzun Cable connecting the whole world, outputting surging power, transferring the cooperation signal, shares opportunities and future.
