Silicone Insualted And LSZH Sheathed Multi Core Solar Cable 4 Core

Brand Name:	dingzun
Model Number:	y-23
MOQ:	200M
Price:	1M/0.45~4USD
Packaging Details:	ROLL
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

shanghai

Certification:

BRAND:

Dingzun

CHINA

Conductor:

Tinned Copper

Stranded:

Stranded

Construction:

4*2.5MM2

Insulation:

SILICONE

Shield:

Armor:

SHEATH:

Temperature:

Voltage:

450/750V

Application:

POWER CABLE

CORES:

Supply Ability:

1000M/1DAYS

Highlight:

LSZH Sheathed Multi Core Solar Cable

4 Core Silicone Insulated Solar Cable

4x2.5mm2 Multi Core Shielded Cable

Product Description

Y-23

This 4 core cable is for solar energy station use, we designed in 4 colors red, blue, brown and yellow- green, easy for installation. Silicone insulation is good for flexibility and high temperature. Multi core cable can offer control and electricity supply, both applications.

For environmental considering, we used LSZH as the protect jacket, due to its good characteristics: oil-resistance, cold resistance, sunlight resistance, heat resistance, and low smoke no halogen, service life is as long as 30 years.

Multi core or Multi conductor cable is easy to combine different elements together to get the electrical and physical features to meet the different industrial requirements, that’s why we strongly recommend it.

In our introduction for multi core cable, we listed all different parts of a complete cable, from conductor, insulation to individual shield, general shield, with armor till the outer jacket, we provided so many options, our minimum order quantity is very small, our clients can make a first trial under affordable cost.

No of Con .	Size AWG	Stranding	Drain Wire AWG	Insulation Thick .	Jacket Thickness	N . O . M O . D .	Colour Code	Weight #/MFT
3	24 7/32		24 0 .010" 0 .020" 0 . 137" 1					14
4	24	7/32	24	0 .010"	0 .020"	0 . 148"	1	16
5	24 7/32		24 0 .010" 0 .020" 0 . 155" 1					18
6	24	7/32	24	0 .010"	0 .023"	0 . 180"	1	22
7	24 7/32		24 0 .010" 0 .023" 0 . 187" 1					30
8	24	7/32	24	0 .010"	0 .023"	0 . 196"	1	34
9	24 7/32 24 7/32		24 24	0 .010" 0 .010"	0 .023" 0 .023"	0 .205" 0 .214"	1 1
10	24 7/32 24 7/32		24 24	0 .010" 0 .010"	0 .023" 0 .023"	0 .205" 0 .214"	1 1	40
12	24 7/32		24 0 .010" 0 .023" 0 .229" 2					46
15	24	7/32	24	0 .010"	0 .023"	0 .250"	2	54
20	24 7/32		24 0 .010" 0 .023" 0 .280" 2					66
25	24	7/32	24	0 .010"	0 .030"	0 .321"	2	82
30	24 7/32		24 0 .010" 0 .030" 0 .345" 2					94
40	24	7/32	24	0 .010"	0 .030"	0 .388"	2	120
50	24 7/32		24 0 .010" 0 .035" 0 .480" 2					146
2	22	7/30	24	0 .010"	0 .020'	0 . 142"	Black/Red	14
3	22 7/30		24 0 .010" 0 .020' 0 . 150" 1					16
4	22	7/30	24	0 .010"	0 .020'	0 . 163"	1	20
5	22 7/30		24 0 .010" 0 .023" 0 . 182" 1					30
6	22	7/30	24	0 .010"	0 .023"	0 . 194"	1	34
7	22 7/30 22 7/30		24 24	0 .010" 0 .010"	0 .023" 0 .023"	0 .205" 0 .217"	1 1
8	22 7/30 22 7/30		24 24	0 .010" 0 .010"	0 .023" 0 .023"	0 .205" 0 .217"	1 1	42
9	22 7/30		24 0 .010" 0 .023" 0 .227" 1					46
10	22	7/30	24	0 .010"	0 .023"	0 .236"	1	50
12	22 7/30		24 0 .010" 0 .023" 0 .253" 1					56
15	22	7/30	24	0 .010"	0 .023"	0 .277"	2	70
19	22 7/30		24 0 .010" 0 .030" 0 .319" 2					86
25	22	7/30	24	0 .010"	0 .030"	0 .356"	2	110
30	22 7/30 22 7/30		24 24	0 .010" 0 .010"	0 .030" 0 .030"	0 .383" 0 .434"	2 2
40	22 7/30 22 7/30		24 24	0 .010" 0 .010"	0 .030" 0 .030"	0 .383" 0 .434"	2 2	164
50	22 7/30		24 0 .010" 0 .035" 0 .485" 2					200
2			22 22	0 .010" 0 .010"	0 .023" 0 .023"	0 . 167" 0 . 176"	Blk/Red 1
3	20	7x28	22 22	0 .010" 0 .010"	0 .023" 0 .023"	0 . 167" 0 . 176"	Blk/Red 1	28
4	20	7x28	22	0 .010"	0 .023"	0 . 191"	1	34
5	20	7x28	22 0 .010" 0 .023" 0 . 199" 2					38
7	20	7x28	22	0 .010"	0 .023"	0 .232"	2	50
8			22 22	0 .010" 0 .010"	0 .023" 0 .030"	0 .243" 0 .255"	2 2
9	20	7x28	22 22	0 .010" 0 .010"	0 .023" 0 .030"	0 .243" 0 .255"	2 2	62
12	20	7x28	22 0 .010" 0 .030" 0 .287" 2					78
15	20	7x28	22	0 .010"	0 .030"	0 .322"	2	92
19	20	7x28	22 0 .010" 0 .030" 0 .354" 2					112
25	20	7x28	22	0 .010"	0 .030"	0 .396"	2	140

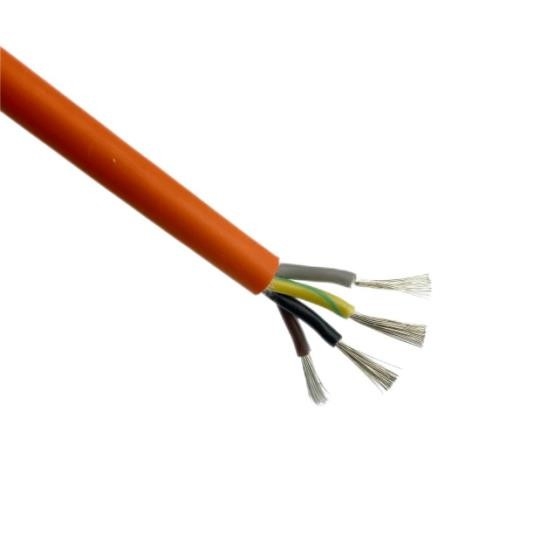

Silicone Insualted And LSZH Sheathed Multi Core Solar Cable 4 Core 0

Silicone Insualted And LSZH Sheathed Multi Core Solar Cable 4 Core 1

Silicone Insualted And LSZH Sheathed Multi Core Solar Cable 4 Core 2

Silicone Insualted And LSZH Sheathed Multi Core Solar Cable 4 Core 3
