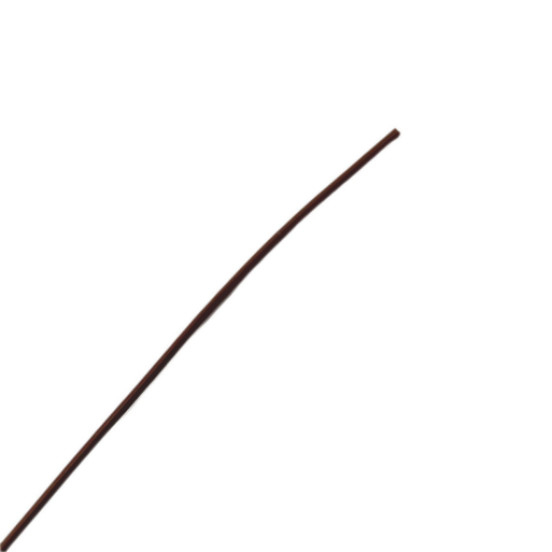

Dingzun Cable 24AWG PFA Insulation 260C High Temperature Hook Up Wire
  • Dingzun Cable 24AWG PFA Insulation 260C High Temperature Hook Up Wire
  • Dingzun Cable 24AWG PFA Insulation 260C High Temperature Hook Up Wire
  • Dingzun Cable 24AWG PFA Insulation 260C High Temperature Hook Up Wire
  • Dingzun Cable 24AWG PFA Insulation 260C High Temperature Hook Up Wire
  • Dingzun Cable 24AWG PFA Insulation 260C High Temperature Hook Up Wire
  • Dingzun Cable 24AWG PFA Insulation 260C High Temperature Hook Up Wire

Dingzun Cable 24AWG PFA Insulation 260C High Temperature Hook Up Wire

Place of Origin China
Brand Name Dingzun
Certification ul
Model Number Y-35
Product Details
TYPE:
High Temp Wire
Conductor:
Tinned Copper
Stranded:
Stranded
Construction:
24AWG
Insulation:
PFA
Shield:
No
Armor:
No
SHEATH:
NO
Temperature:
260C
Voltage:
300/500V
Application:
HOOK UP WIRE
CORES:
1
Highlight:

PFA High Temperature Hook Up Wire

,

High Temperature PFA Wire

,

24AWG PFA Wire

Product Description

Description: UL10362 PFA insulation high temperature wire

Conductor: Nickel plated copper
Construction: 24/19awg
Insulation: PFA

Insulation Thickness: 0.25mm
O.D.: 1.1±0.05mm
Rated Temperature: 250 ℃
Packing:500m/roll

Dingzun Cable UL10362 UL certified, file no. E311865, this is a PFA wire, which can work in 250 degree high temperature environment.

We have 18 years of manufacturing experience in producing high temperature wire, for family insulation, we always provide clients as: FEP/PFA/PTFE/ETFE wire, which can be used in different temperature working conditions.

1, is a small amount of perfluoropropyl perfluorovinyl ether and polytetrafluoroethylene copolymer. The melting cohesiveness increased, the viscosity of the solution decreased, and the properties did not change compared with PTFE. This resin can be directly processed into products by ordinary thermoplastic forming method.

2, long-term use of temperature -196--260 degrees Celsius, has excellent chemical corrosion resistance, corrosion resistance to all chemicals, friction coefficient in the plastic is the lowest, and very good electrical performance, its electrical insulation is not affected by temperature, known as the "king of plastics".

Dingzun Cable 24AWG PFA Insulation 260C High Temperature Hook Up Wire 0

Dingzun Cable 24AWG PFA Insulation 260C High Temperature Hook Up Wire 1

Dingzun Cable 24AWG PFA Insulation 260C High Temperature Hook Up Wire 2
