Ul1332 High Temperature Wire Cable AF200 Silver Copper Fine Wire FEP Insulated Hook Up Wire UL1330
  • Ul1332 High Temperature Wire Cable AF200 Silver Copper  Fine Wire FEP Insulated Hook Up Wire UL1330
  • Ul1332 High Temperature Wire Cable AF200 Silver Copper  Fine Wire FEP Insulated Hook Up Wire UL1330
  • Ul1332 High Temperature Wire Cable AF200 Silver Copper  Fine Wire FEP Insulated Hook Up Wire UL1330
  • Ul1332 High Temperature Wire Cable AF200 Silver Copper  Fine Wire FEP Insulated Hook Up Wire UL1330
  • Ul1332 High Temperature Wire Cable AF200 Silver Copper  Fine Wire FEP Insulated Hook Up Wire UL1330
  • Ul1332 High Temperature Wire Cable AF200 Silver Copper  Fine Wire FEP Insulated Hook Up Wire UL1330
  • Ul1332 High Temperature Wire Cable AF200 Silver Copper  Fine Wire FEP Insulated Hook Up Wire UL1330

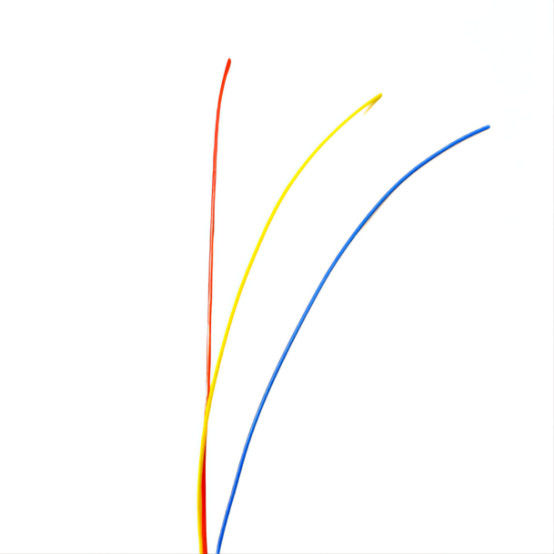

Ul1332 High Temperature Wire Cable AF200 Silver Copper Fine Wire FEP Insulated Hook Up Wire UL1330

Place of Origin China
Brand Name Dingzun
Certification ul
Model Number y-01
Product Details
Product Name:
Ul1332 High Temperature Wire
Conductor:
Silver Copper
Construction:
7/0.15
Insulation:
FEP
Shield:
NO
Armor:
NO
SHEATH:
NO
Temperature:
200C
Voltage:
600V
Packing:
500M/ROLL
Application:
HIGH TEMPERATURE APPLIANCES
High Light:

UL1330 Hook Up Wire

,

AF200 Copper Fine Wire

,

FEP Insulated High Temperature Teflon Cable

Product Description

Dingzun Cable AF200 Silver Copper Fine Wire FEP Insulated Hook Up Wire UL1330 Ul1332 High Temperature Wire





AF-200 high temperature aviation conductors are tinned copper core polyfluoroethylene propylene (FEP) insulated wires and cables for aerospace applications (referred to as tinned copper core FEP insulated wires and cables), all requirements of which are stipulated by the National Military Standard GJB77A/11A-2000 of the People's Republic of China. This kind of product has good high temperature resistance, moisture resistance, flame retardant performance.



High Temperature Wire Features:

1. Light weight,

2. small size, soft.



It is mainly used for internal connection of electronic equipment, instrument circuit and other precision electrical devices under high and low temperature conditions.



Y-01

Description: AF200 7/0.15

Conductor: silver copper
Construction: 7/0.15
Insulation: FEP
Rated temperature: 200degree
Rated Voltage:600V



High Temperature Wire has the characteristics of heat resistance radiation, cold resistance, acid and alkali resistance and corrosive gas, waterproof, soft cable structure, convenient radiation, high temperature (cold) environment electrical performance stability, aging resistance outstanding, long service life, has excellent high temperature resistance to low temperature performance, has excellent electrical insulation performance, excellent chemical stability, high voltage resistance, aging resistance, long service life. And soft and easy to install, widely used in metallurgy, electric power, petrochemical, electronics, automobile manufacturing lighting, lamps, household appliances, electric heating appliances, instrumentation, electrical wiring and electronics, lamps, fuel and other high temperature environment industries.



Ul1332 High Temperature Wire Cable AF200 Silver Copper  Fine Wire FEP Insulated Hook Up Wire UL1330 0

Ul1332 High Temperature Wire Cable AF200 Silver Copper  Fine Wire FEP Insulated Hook Up Wire UL1330 1

Ul1332 High Temperature Wire Cable AF200 Silver Copper  Fine Wire FEP Insulated Hook Up Wire UL1330 2
